Speed Signal Circuit: Procedure

  1. CHECK HARNESS AND CONNECTOR (JUNCTION CONNECTOR)
    1. Check for a short in the circuit connected to the junction connector shown in the wiring diagram.

      HINT:

      If voltage is not present, the circuit (ECU) was possibly malfunctioning. This is the circuit that will be diagnosed by following the step A that follows.

      1. Disconnect the junction connectors.
        Fig 1: Identifying E24 & D53 Junction Connector Terminals
        GTY301984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Measure the voltage according to the value(s) in the table below.

        Standard voltage

        Tester Connection Switch Condition Specified Condition
        E24-7 - Body ground Ignition switch ON 4.5 to 14 V
        D53-5 (*1) - Body ground Ignition switch ON 4.5 to 14 V
        E24-5 (*2) - Body ground Ignition switch ON 4.5 to 14 V
        D53-7 - Body ground Ignition switch ON 4.5 to 14 V

        *1: w/ Smart Key System

        *2: w/ Back Door Speaker

        RESULT

        Result Proceed to
        Voltage is not present in one circuit A
        Voltage is present in all the circuits B

    B → See step   8

    A: Go to next step

  2. SYSTEM CHECK
    1. Check the circuit that did not present voltage in step 6.
      RESULT

      Tester Connection System that uses the circuit Proceed to
      D53-5 (*1) - Body ground Smart key system A
      D53-7 - Body ground Hybrid Vehicle Control System B
      E24-7 (*2) - Body ground Navigation system C
      E24-7 (*3) - Body ground Audio/visual system D
      E24-5 (*4) - Body ground Separate type amplifier system E

      *1: w/ Smart Key System

      *2: w/ Navigation System

      *3: w/o Navigation System

      *4: w/ Back Door Speaker

    B → See step   4

    C → See step   5

    D → See step   6

    E → See step   7

    A: Go to next step

  3. CHECK HARNESS AND CONNECTOR (MAIN BODY ECU CIRCUIT)
    1. Disconnect the D9 main body ECU connector.
      Fig 2: Identifying D53 & D9 Main Body ECU Connector
      GTY294773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      D9-9 (SPD) - D53-5 Always Below 1 Ω
      D9-9 (SPD) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → REPLACE MAIN BODY ECU

  4. CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU CIRCUIT)
    1. Disconnect the D72 hybrid vehicle control ECU connector.
      Fig 3: Identifying D72 Hybrid Vehicle Control ECU Connector & D53 Junction Connector Terminal
      GTY303322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      D72-14 (SPDI) - D53-7 Always Below 1 Ω
      D72-14 (SPDI) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   15

  5. CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER CIRCUIT)
    1. Disconnect the E5 navigation receiver assembly connector.
      Fig 4: Identifying E5 Navigation Receiver Assembly Connector
      GTY300983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      E5-3 (SPD) - E24-7 Always Below 1 Ω
      E5-3 (SPD) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   17

  6. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER ASSEMBLY CIRCUIT)
    1. Disconnect the E3 radio receiver assembly connector.
      Fig 5: Identifying E3 Radio Receiver Assembly Connector
      GTY303915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      E3-3 (SPD) - E24-7 Always Below 1 Ω
      E3-3 (SPD) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   16

  7. CHECK HARNESS AND CONNECTOR (STEREO COMPONENT AMPLIFIER CIRCUIT)
    1. Disconnect the N14 stereo component amplifier connector.
      Fig 6: Identifying N14 Stereo Component Amplifier Connector
      GTY295181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      N14-11 (SPD) - E24-5 Always Below 1 Ω
      N14-11 (SPD) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   18

  8. INSPECT ECU TERMINAL VOLTAGE (INPUT VOLTAGE)
    1. Disconnect the E1 meter connector.
      Fig 7: Identifying E1 Combination Meter Assembly Connector Terminals
      GTY207784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      Tester Connection Switch Condition Specified Condition
      E1-9 (+S) - Body ground Ignition switch ON 4.5 to 14 V

      HINT:

      If any of the ECUs specified in the wiring diagram supplied power to the combination meter, the combination meter will output a waveform.

    NG → See step   11

    OK: Go to next step

  9. INSPECT COMBINATION METER (OUTPUT VOLTAGE)
    1. Reconnect the E1 meter connector.
    2. Disconnect the A44 skid control ECU connector.
      Fig 8: Identifying A44 Skid Control ECU Connector Terminals
      GTY190076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      Tester Connection Switch Condition Specified Condition
      A44-22 (SP1) - Body ground Ignition switch ON 11 to 14 V

    NG → See step   12

    OK: Go to next step

  10. INSPECT SKID CONTROL ECU (INPUT WAVEFORM)
    1. Check the input waveform.
      Fig 9: Identifying E1 Combination Meter Assembly Connector Terminals
      GTY208213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Reconnect the A44 skid control ECU connector.
      2. Remove the combination meter assembly with the connector(s) still connected.
      3. Connect an oscilloscope to terminals E1-29 (SI) and body ground.
      4. Turn the ignition switch to ON (READY).
      5. Turn the wheel slowly.
      6. Check the signal waveform according to the condition(s) in the table below.
        Item Condition
        Tool setting 5 V/DIV., 20 ms./DIV.
        Vehicle condition Driving at approx. 20 km/h (12 mph)

        OK

        The waveform is displayed as shown in the illustration.

        HINT:

        When the system is functioning normally, one wheel revolution generates 4 pulses. As the vehicle speed increases, the width indicated by (A) in the illustration narrows.

    NG → See step   14

    OK → See step   13

  11. CHECK HARNESS AND CONNECTOR (COMBINATION METER - JUNCTION CONNECTOR)
    1. Disconnect the junction connector.

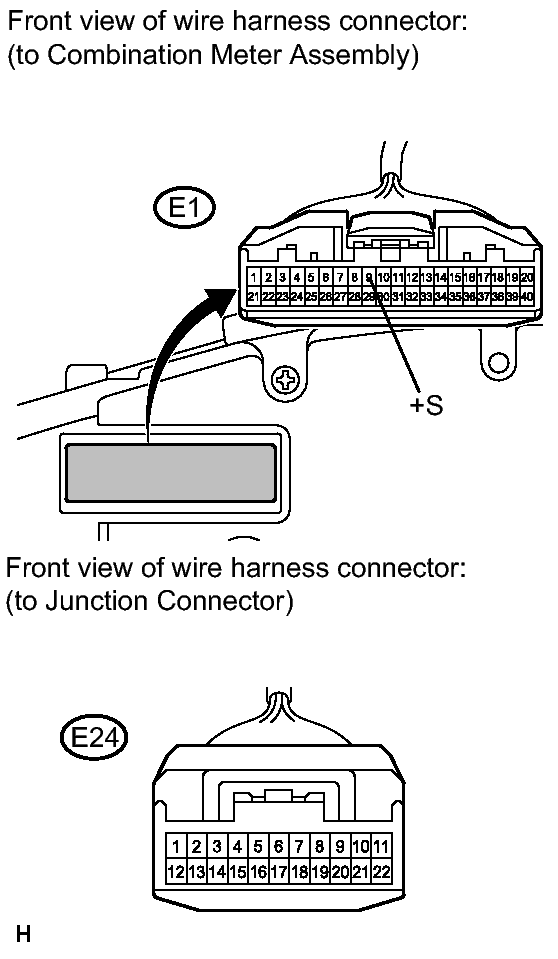

      Fig 10: Identifying E1 Combination Meter Assembly & E24 Junction Connector
      GTY307654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      E1-9 (+S) - E24-6 Always Below 1 Ω
      E1-9 (+S) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → REPLACE JUNCTION CONNECTOR

  12. CHECK HARNESS AND CONNECTOR (COMBINATION METER - SKID CONTROL ECU)
    1. Disconnect the E1 meter connector.

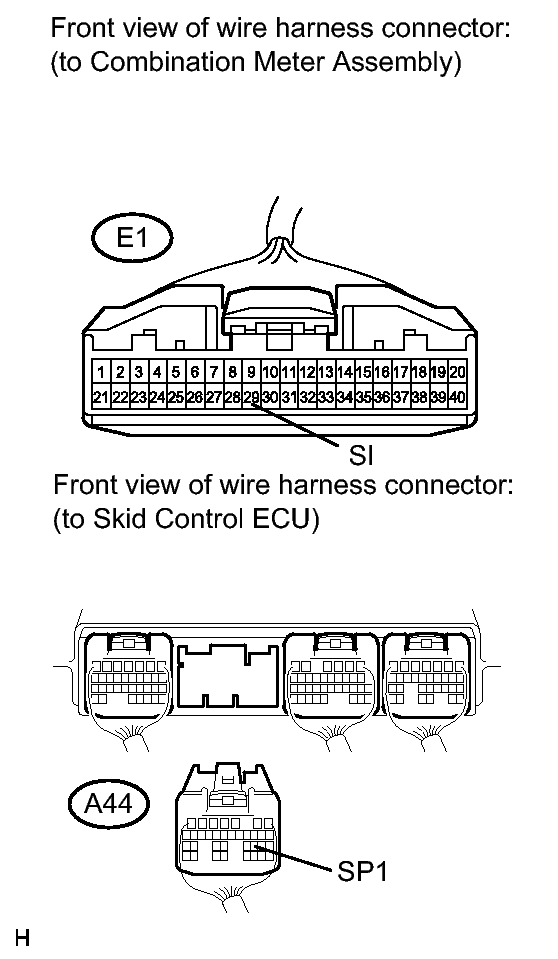

      Fig 11: Identifying E1 And A44 Connector Terminals
      GTY187470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      A44-22 (SP1) - E1-29 (SI) Always Below 1 Ω
      A44-22 (SP1) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   13

  13. REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL
  14. REPLACE SKID CONTROL ECU. Refer to  REMOVAL
  15. REPLACE HYBRID VEHICLE CONTROL ECU. Refer to  REMOVAL
  16. REPLACE RADIO RECEIVER ASSEMBLY. Refer to  REMOVAL
  17. REPLACE NAVIGATION RECEIVER ASSEMBLY. Refer to  REMOVAL
  18. REPLACE STEREO COMPONENT AMPLIFIER. Refer to  REMOVAL
