Entire Combination Meter does not Operate: Wiring Diagram

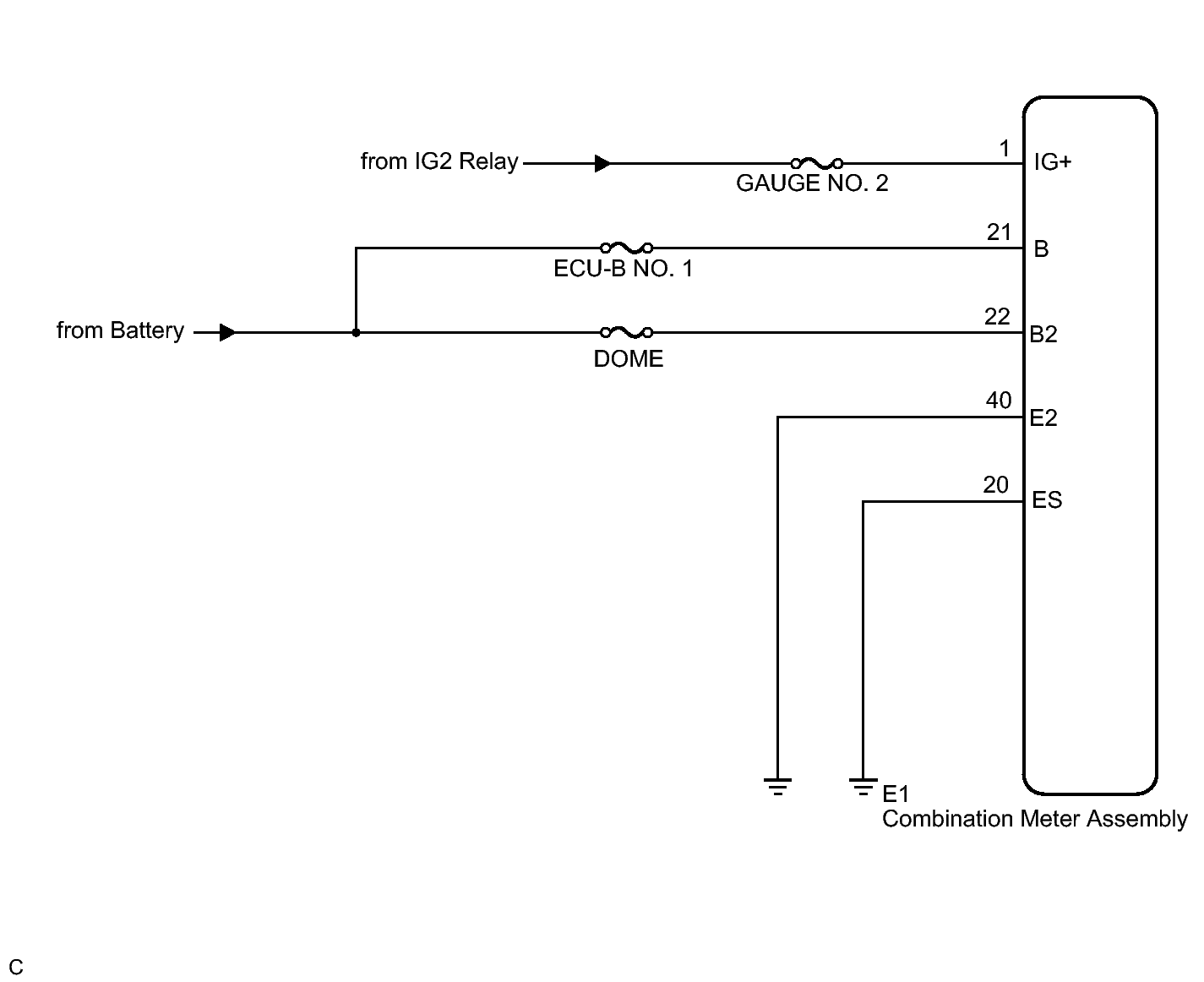

Fig 1: Identifying Combination Meter Assembly Wiring Diagram

GTY299580

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
