DTC B1500: Fuel Sender Open Detected: Procedure

1. Use the Data List to check if the fuel receiver gauge is operating properly, refer to DATA LIST / ACTIVE TEST .
   COMBINATION METER



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Fuel Input	Fuel input signal/Min.: 0, Max.: 127.5	Fuel gauge indicates (E): 6.8(L) Fuel gauge indicates (1/2): 32.4 (L) Fuel gauge indicates (F): 58.3 (L)	-

   OK

   The fuel amount value displayed on the Techstream is almost the same as the needle indication.

NG → See step   3

OK → See step   2

1. Disconnect the E1 meter connector.

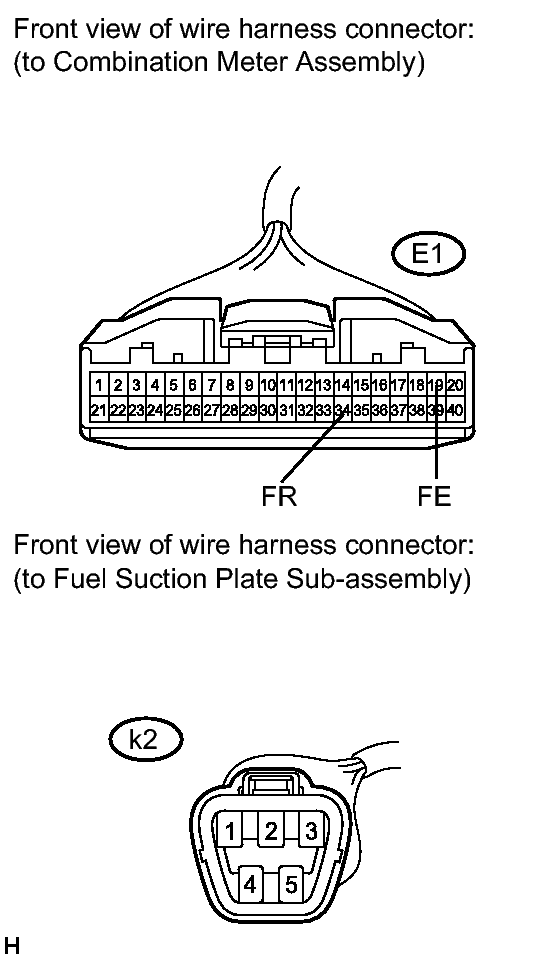

   Fig 1: Identifying E1 Meter Connector Terminal & K2 Fuel Suction Plate Connector Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the k2 fuel suction plate connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   E1-34 (FR) - k2-2	Always	Below 1 Ω
   E1-19 (FE) - k2-3
   E1-34 (FR) - E1-19 (FE)	Always	10 kΩ or higher
   E1-34 (FR) or k2-2 - Body ground

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Remove the fuel suction plate sub-assembly, refer to REMOVAL .
   Fig 2: Identifying Fuel Suction Plate Sub-Assembly & A & B Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   A-2 - B-2	Always	Below 1 Ω
   A-3 - B-1

NG → See step   7

OK: Go to next step

1. Remove the fuel sender gauge assembly, refer to REMOVAL .
   Fig 3: Inspecting Fuel Sender Gauge Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   1 - 2	Float position F (upper)	13.5 to 16.5 Ω
   	Float position E (lower)	405.5 to 414.5 Ω

NG → See step   8

OK → See step   6
