Clock Display Circuit: Procedure

1. Check if CAN communication DTC is output.
   • w/ Smart Key System:, refer to DIAGNOSIS SYSTEM
   • w/o Smart Key System:, refer to DIAGNOSIS SYSTEM
   RESULT



   Result	Proceed to
   CAN communication system DTC is not output.	A
   CAN communication system DTC is output. (w/ Smart Key System)	B
   CAN communication system DTC is output. (w/o Smart Key System)	C

B → See step   4

C → See step   7

A: Go to next step

1. Disconnect the E11 clock and E1 meter connectors.

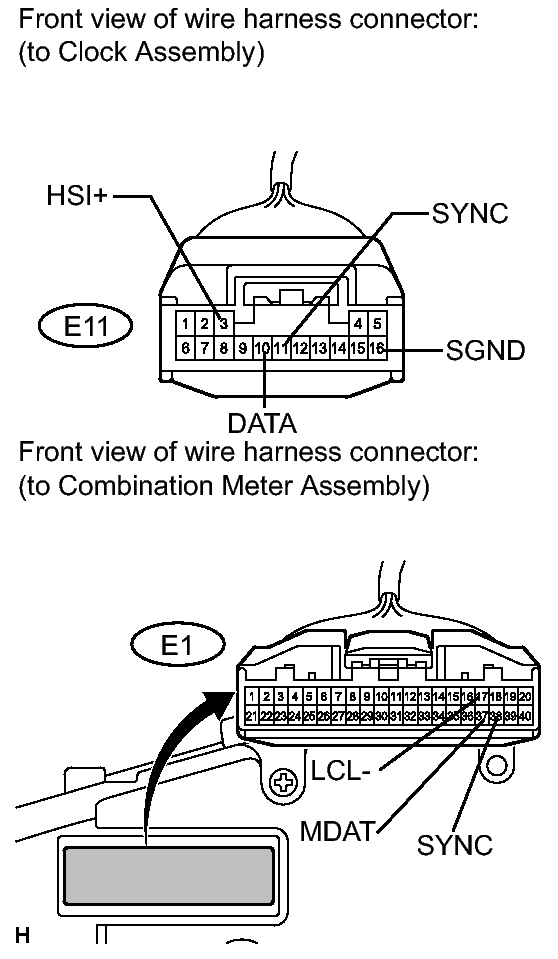

   Fig 1: Identifying E11 And E1 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   E11-3 (HSI+) - E1-17 (LCL-)	Always	Below 1 Ω
   E11-10 (DATA) - E1-37 (MDAT)	Always	Below 1 Ω
   E11-11 (SYNC) - E1-38 (SYNC)	Always	Below 1 Ω
   E11-3 (HSI+) - Body ground	Always	10 kΩ or higher
   E11-10 (DATA) - Body ground	Always	10 kΩ or higher
   E11-11 (SYNC) - Body ground	Always	10 kΩ or higher
   E11-16 (SGND) - Body ground	Always	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Reconnect the E1 meter connector.
   Fig 2: Identifying E11 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Switch Condition	Specified Condition
   E11-3 (HSI+) - Body ground	Ignition switch ON	Pulse generation
   E11-10 (DATA) - Body ground	Ignition switch ON	Pulse generation
   E11-11 (SYNC) - Body ground	Ignition switch ON	4 to 6 V

NG → See step   5

OK → See step   6
