Engine Room Relay Block No. 2 Assembly
Front Fender Apron LH (See Figure)

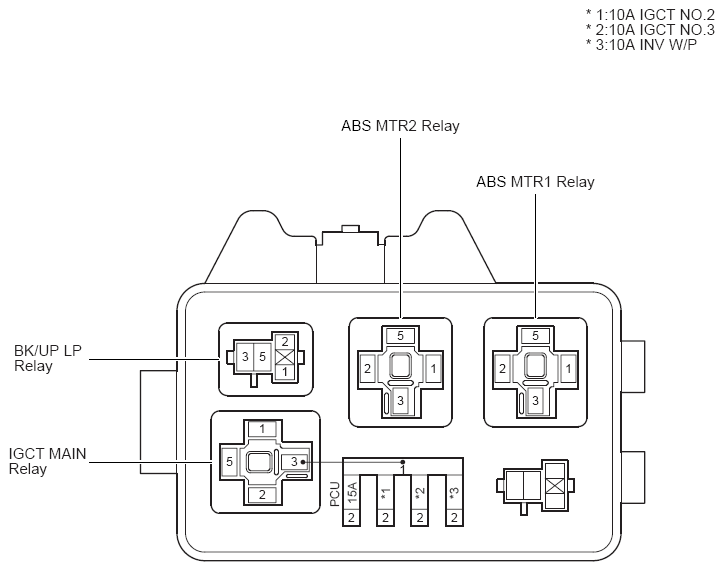

ENGINE ROOM R/B NO. 2 RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| IGCT Main Relay |
| BK/UP LP Relay |
| ABS MTR2 Relay |
| ABS MTR1 Relay |
ENGINE ROOM R/B NO.2 ASSEMBLY FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 10A | IGCT NO.2 | Hybrid System |
| Multi-Display and Parking Assist (Rear View Monitor w/o Navigation System) | ||
| 10A | IGCT NO.3 | Audio System (JBL), Navigation System and Parking Assist (Rear View Monitor w/Navigation System) |
| Back-Up Light | ||
| Door Lock Control, Glass Hatch Opener, Back Door Opener (w/o Power Back Door) and Wireless Door Lock Control (w/o Smart Key System) | ||
| EPS | ||
| Hybrid System | ||
| Interior Light | ||
| Power Back Door | ||
| Smart Key System | ||
| 10A | INV W/P | Air Conditioning |
| 15A | PCU | Hybrid System |
