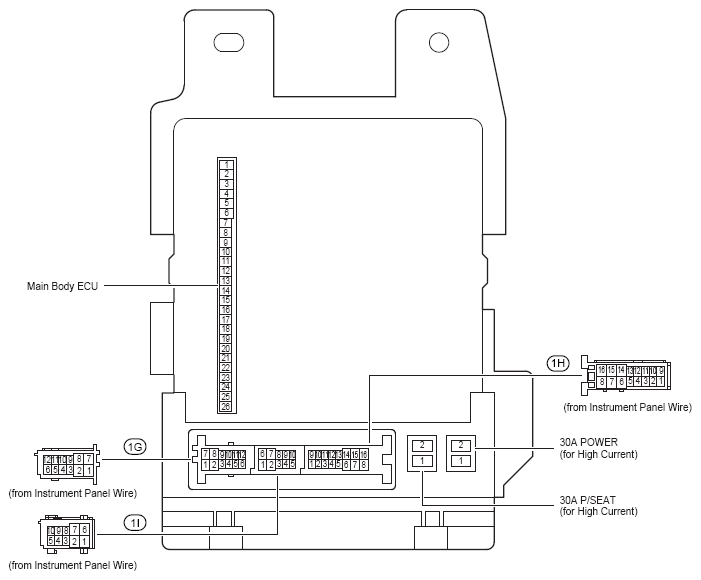

Instrument Panel Junction Block Assembly

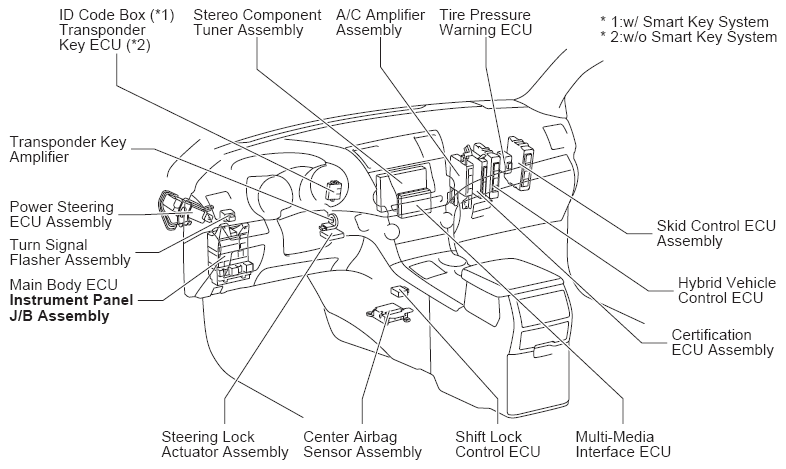

Left Instrument Panel Reinforcement (See Figure)

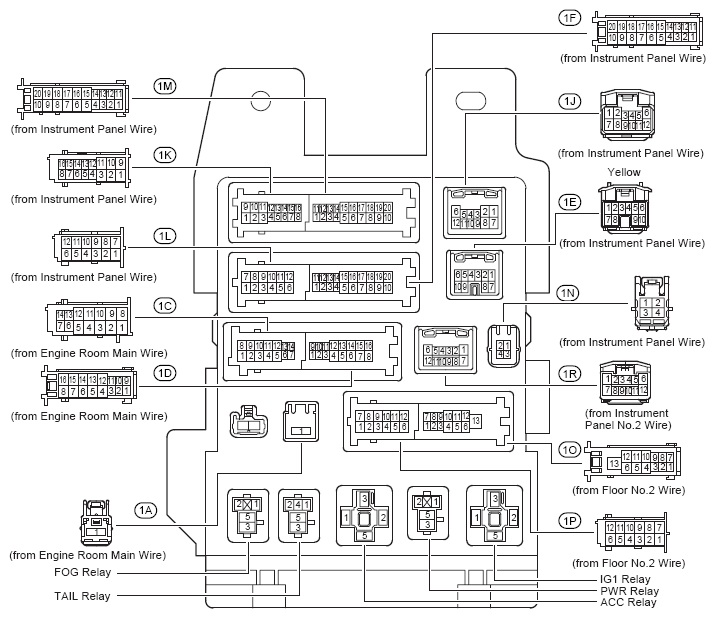

INSTRUMENT PANEL J/B RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Tail Relay |
| Fog Relay |
| IG1 Relay |
| PWR Relay |
| ACC Relay |

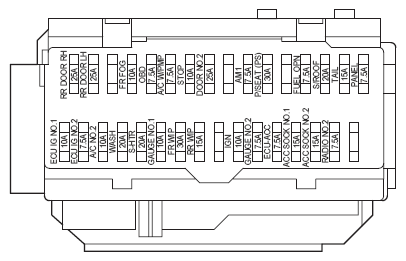

INSTRUMENT PANEL J/B ASSEMBLY FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 7.5A | A/C W/PMP | Air Conditioning |
| 7.5A | ECU IG NO.2 | EPS |
| Stop Light | ||
| 7.5A | ECU-ACC | Air Conditioning |
| Automatic Light Control and Light Auto Turn Off System | ||
| Door Lock Control, Glass Hatch Opener, Back Door Opener (w/o Power Back Door) and Wireless Door Lock Control (w/o Smart Key System) | ||
| Front Fog Light | ||
| Headlight | ||
| Hybrid System | ||
| Interior Light | ||
| Key Reminder (w/o Smart Key System) | ||
| Multi-Display and Parking Assist (Rear View Monitor w/o Navigation System) | ||
| Power Back Door | ||
| Power Window | ||
| Remote Control Mirror | ||
| Seat Belt Warning | ||
| Shift Lock | ||
| Sliding Roof | ||
| Smart Key System | ||
| Taillight and Illumination | ||
| Theft Deterrent | ||
| 7.5A | ECU-IG NO.2 | Trailer Towing |
| Vehicle Dynamics Integrated Management (for Hybrid Vehicle) | ||
| 7.5A | FUEL OPN | Fuel Lid Opener |
| 7.5A | GAUGE NO.2 | Air Conditioning |
| Audio System (Except JBL) | ||
| Audio System (JBL), Navigation System and Parking Assist (Rear View Monitor w/Navigation System) | ||
| Combination Meter | ||
| Cooling Fan | ||
| Door Lock Control, Glass Hatch Opener, Back Door Opener (w/o Power Back Door) and Wireless Door Lock Control (w/o Smart Key System) | ||
| EPS | ||
| Front Fog Light | ||
| Fuel Lid Opener | ||
| Headlight | ||
| Hybrid System | ||
| 7.5A | GAUGE NO.2 | Key Reminder (w/o Smart Key System) |
| Multi-Display and Parking Assist (Rear View Monitor w/o Navigation System) | ||
| Power Back Door | ||
| Seat Belt Warning | ||
| Sliding Roof | ||
| Smart Key System | ||
| SRS | ||
| Taillight and Illumination | ||
| Tire Pressure Warning System | ||
| Vehicle Dynamics Integrated Management (for Hybrid Vehicle) | ||
| 7.5A | OBD | Data Link Connector 3 |
| 7.5A | PANEL | Taillight and Illumination |
| 7.5A | RADIO NO.2 | Audio System (Except JBL) |
| Audio System (JBL), Navigation System and Parking Assist (Rear View Monitor w/Navigation System) | ||
| Taillight and Illumination | ||
| 10A | A/C NO.2 | Air Conditioning |
| Cooling Fan | ||
| 10A | ECU IG NO.1 | Air Conditioning |
| Automatic Glare-Resistant EC Mirror with Compass | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| Door Lock Control, Glass Hatch Opener, Back Door Opener (w/o Power Back Door) and Wireless Door Lock Control (w/o Smart Key System) | ||
| EPS | ||
| Front Fog Light | ||
| Headlight | ||
| Hybrid System | ||
| Interior Light | ||
| Key Reminder (w/o Smart Key System) | ||
| Multi-Display and Parking Assist (Rear View Monitor w/o Navigation System) | ||
| Power Back Door | ||
| Power Window | ||
| Seat Belt Warning | ||
| Seat Heater | ||
| Shift Lock | ||
| Sliding Roof | ||
| Smart Key System | ||
| Taillight and Illumination | ||
| Tire Pressure Warning System | ||
| 10A | ECU IG NO.1 | Vehicle Dynamics Integrated Management (for Hybrid Vehicle) |
| 10A | ECU-IG NO.1 | Theft Deterrent |
| 10A | FR FOG | Front Fog Light |
| 10A | GAUGE NO.1 | Air Conditioning |
| Audio System (JBL), Navigation System and Parking Assist (Rear View Monitor w/Navigation System) | ||
| Back-Up Light | ||
| Front Window Deicer | ||
| Mirror Heater | ||
| Multi-Display and Parking Assist (Rear View Monitor w/o Navigation System) | ||
| Power Outlet (120V) | ||
| Rear Window Defogger | ||
| Seat Belt Warning | ||
| Trailer Towing | ||
| Turn Signal and Hazard Warning Light | ||
| 10A | IGN | Engine Immobiliser System (w/o Smart Key System) |
| Hybrid System | ||
| Seat Belt Warning | ||
| Smart Key System | ||
| SRS | ||
| Vehicle Dynamics Integrated Management (for Hybrid Vehicle) | ||
| 10A | STOP | EPS |
| Hybrid System | ||
| Multi-Display and Parking Assist (Rear View Monitor w/o Navigation System) | ||
| Shift Lock | ||
| Smart Key System | ||
| Stop Light | ||
| Trailer Towing | ||
| Vehicle Dynamics Integrated Management (for Hybrid Vehicle) | ||
| 15A | ACC SOCK NO.1 | Power Outlet (12V) |
| 15A | ACC SOCK NO.2 | Power Outlet (12V) |
| 15A | RR WIP | Rear Wiper and Washer |
| 15A | TAIL | Front Fog Light |
| Taillight and Illumination | ||
| 20A | S/ROOF | Sliding Roof |
| 20A | S-HTR | Seat Heater |
| 20A | WASH | Front Wiper and Washer |
| Rear Wiper and Washer | ||
| 25A | DOOR NO.2 | Power Window |
| 25A | RR DOOR LH | Power Window |
| 25A | RR DOOR RH | Power Window |
| 30A | FR WIP | Air Conditioning |
| Front Wiper and Washer | ||
| 30A | P/SEAT | Power Seat (Driver's Seat) |
| 30A | P/SEAT (PS) | Power Seat (Front Passenger's Seat) |
| 30A | POWER | Power Window |
