Vehicle Dynamics Integrated Management (for Hybrid Vehicle)

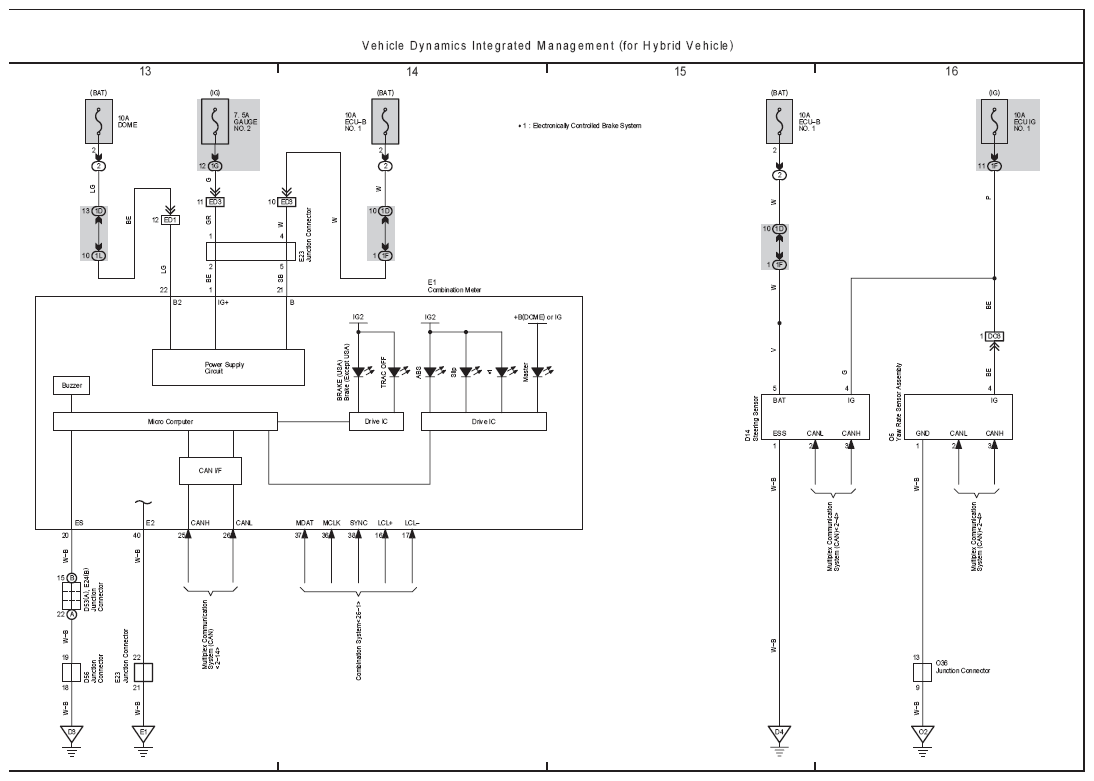

Fig 1: Vehicle Dynamics Integrated Management (For Hybrid Vehicle) (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

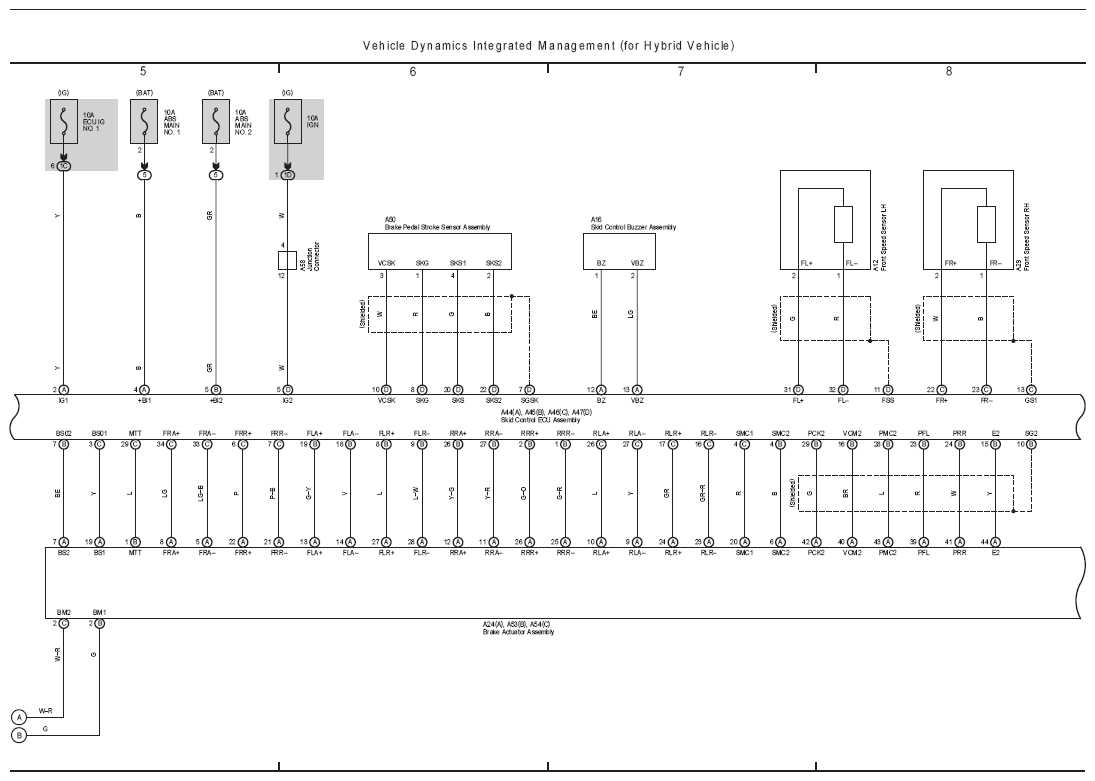

Fig 2: Vehicle Dynamics Integrated Management (For Hybrid Vehicle) (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

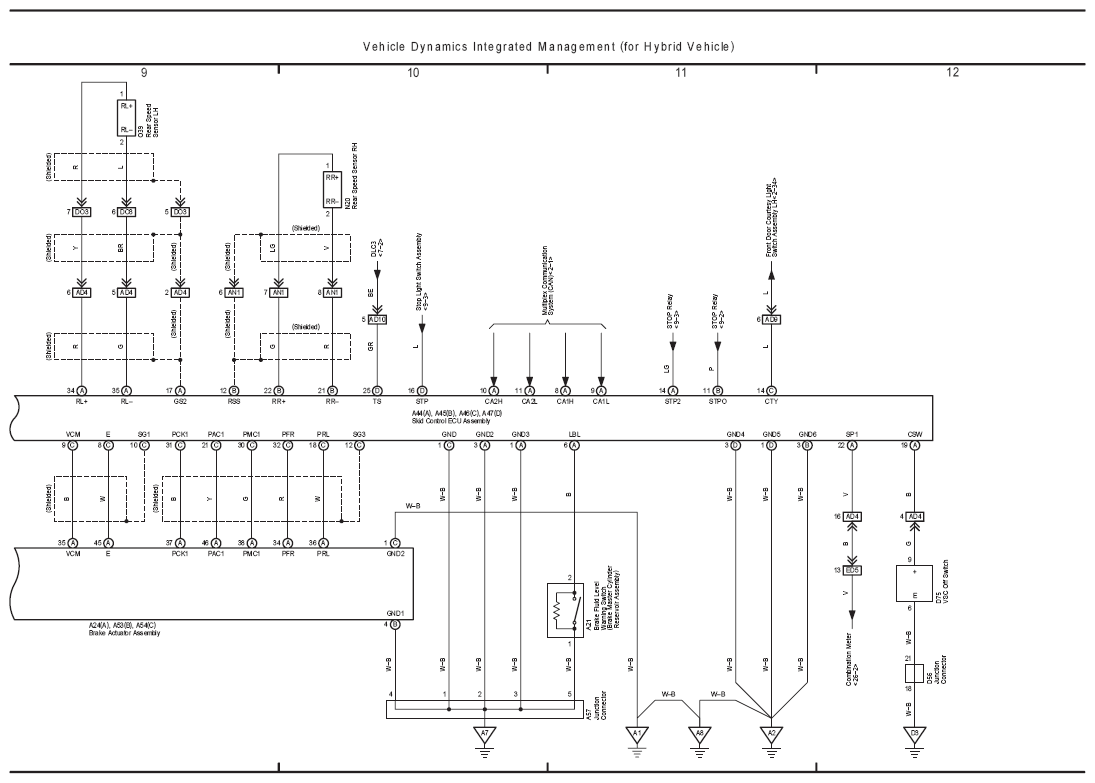

Fig 3: Vehicle Dynamics Integrated Management (For Hybrid Vehicle) (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

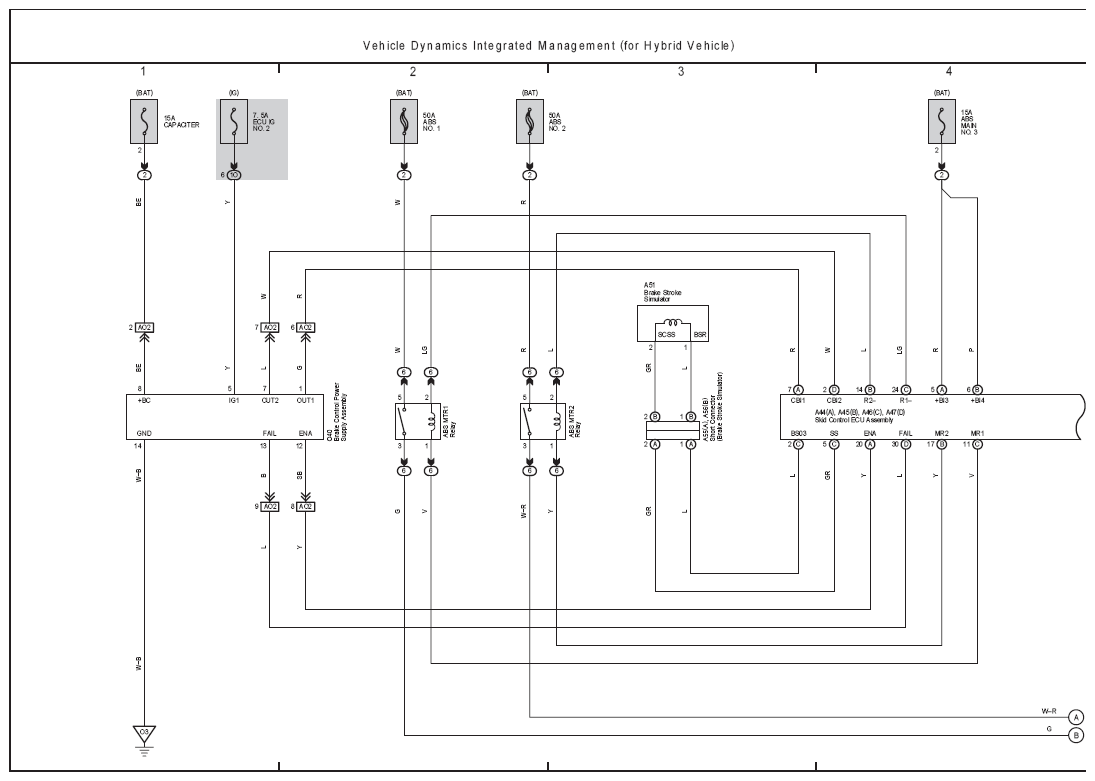

Fig 4: Vehicle Dynamics Integrated Management (For Hybrid Vehicle) (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
