Smart Key System

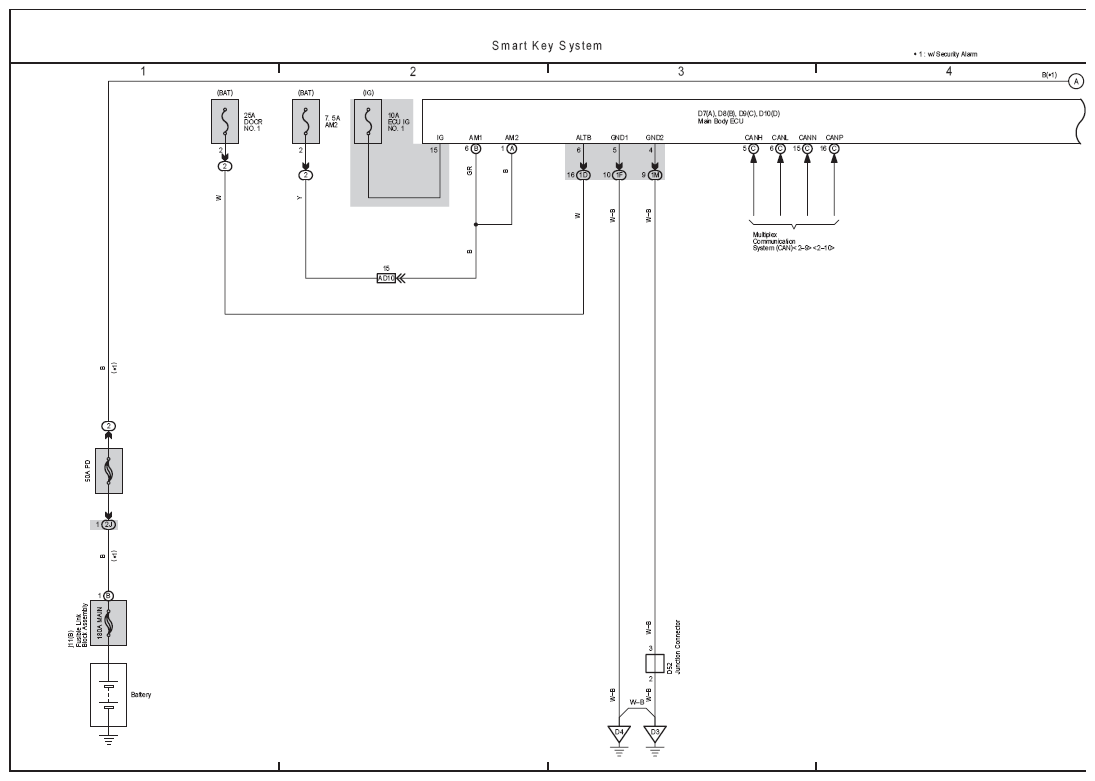

Fig 1: Smart Key System Electrical Wiring Diagram (1 Of 5)
G07115798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

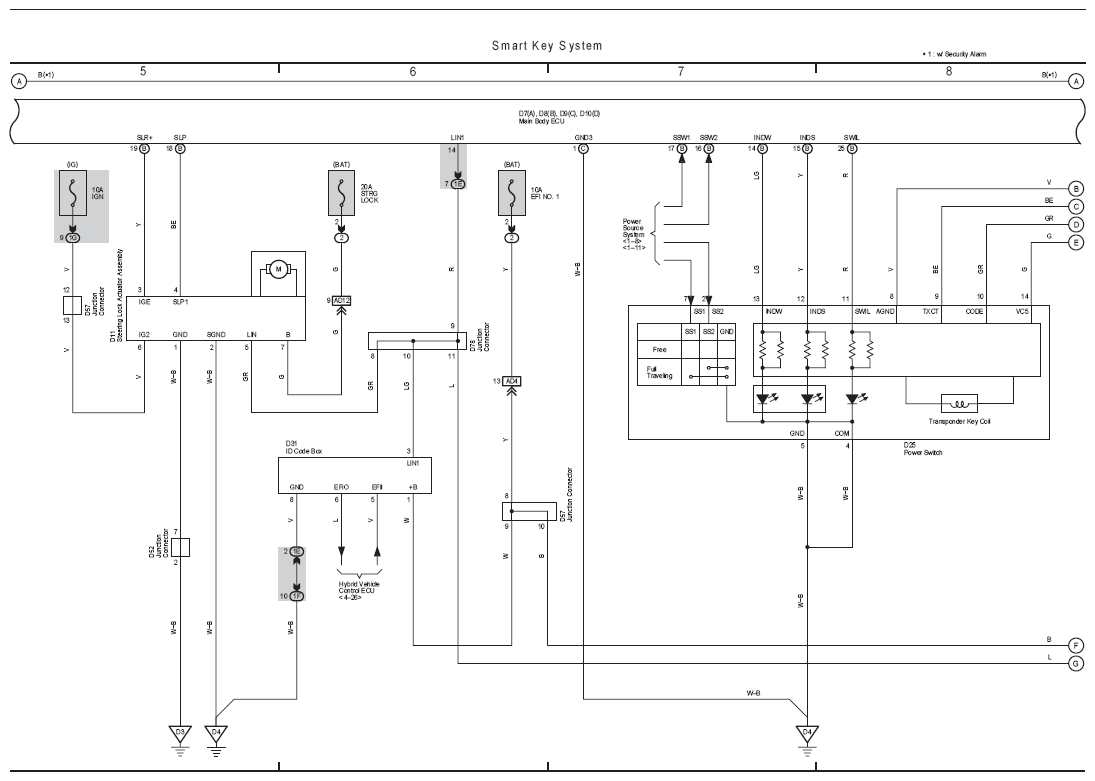

Fig 2: Smart Key System Electrical Wiring Diagram (2 Of 5)
G07115799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

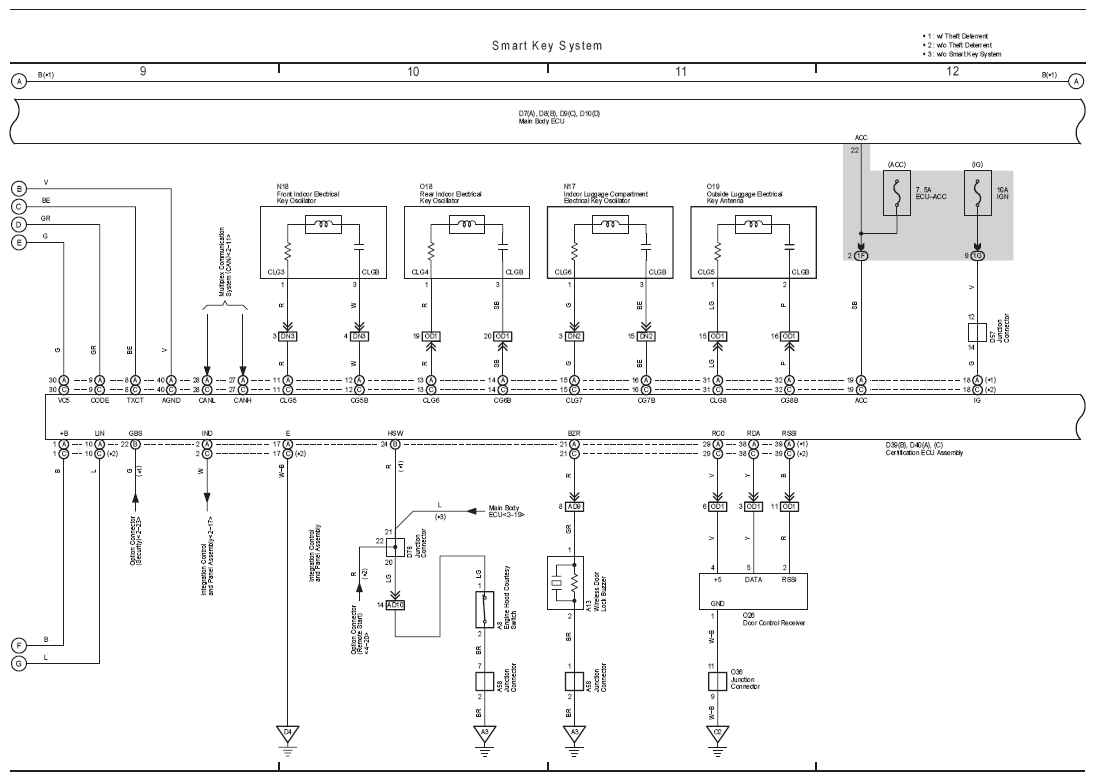

Fig 3: Smart Key System Electrical Wiring Diagram (3 Of 5)
G07115800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

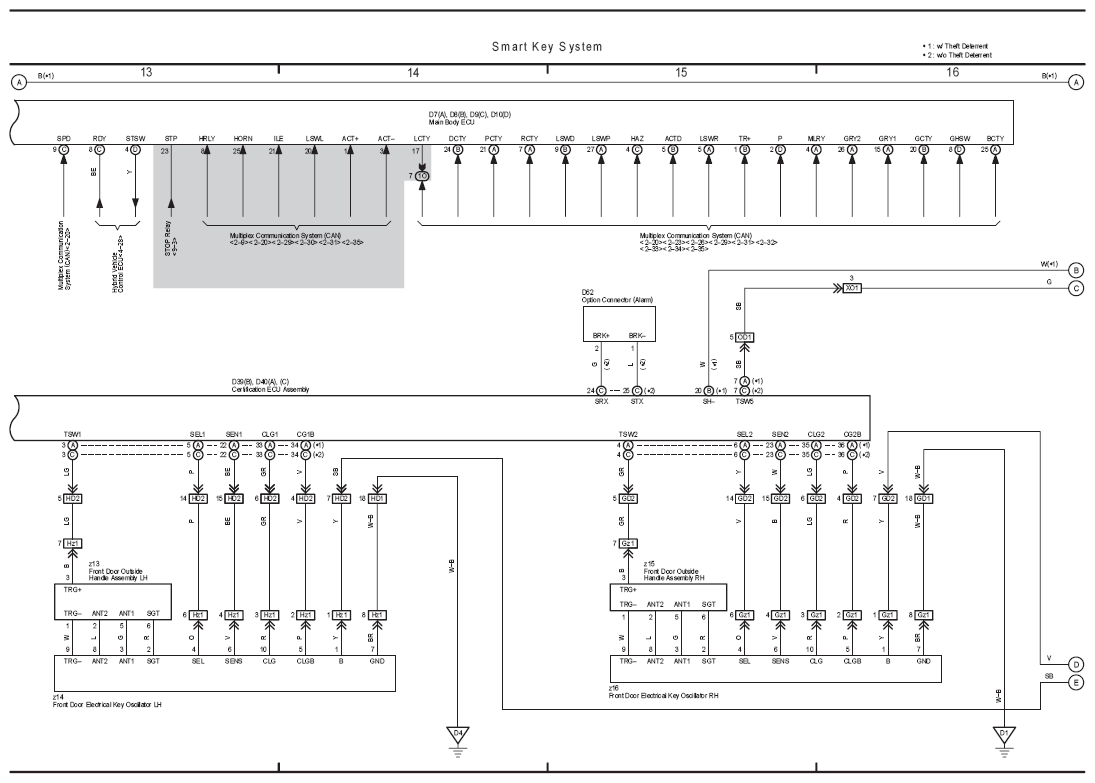

Fig 4: Smart Key System Electrical Wiring Diagram (4 Of 5)
G07115801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

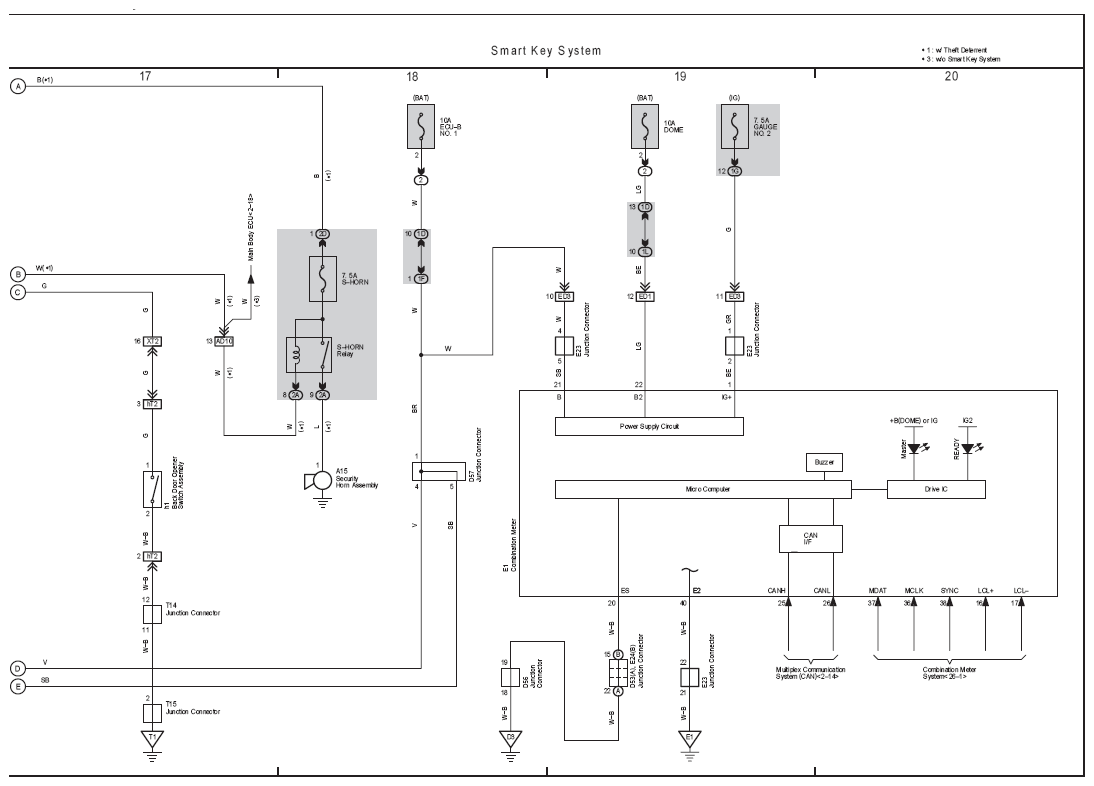

Fig 5: Smart Key System Electrical Wiring Diagram (5 Of 5)
G07115802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
