Power Source

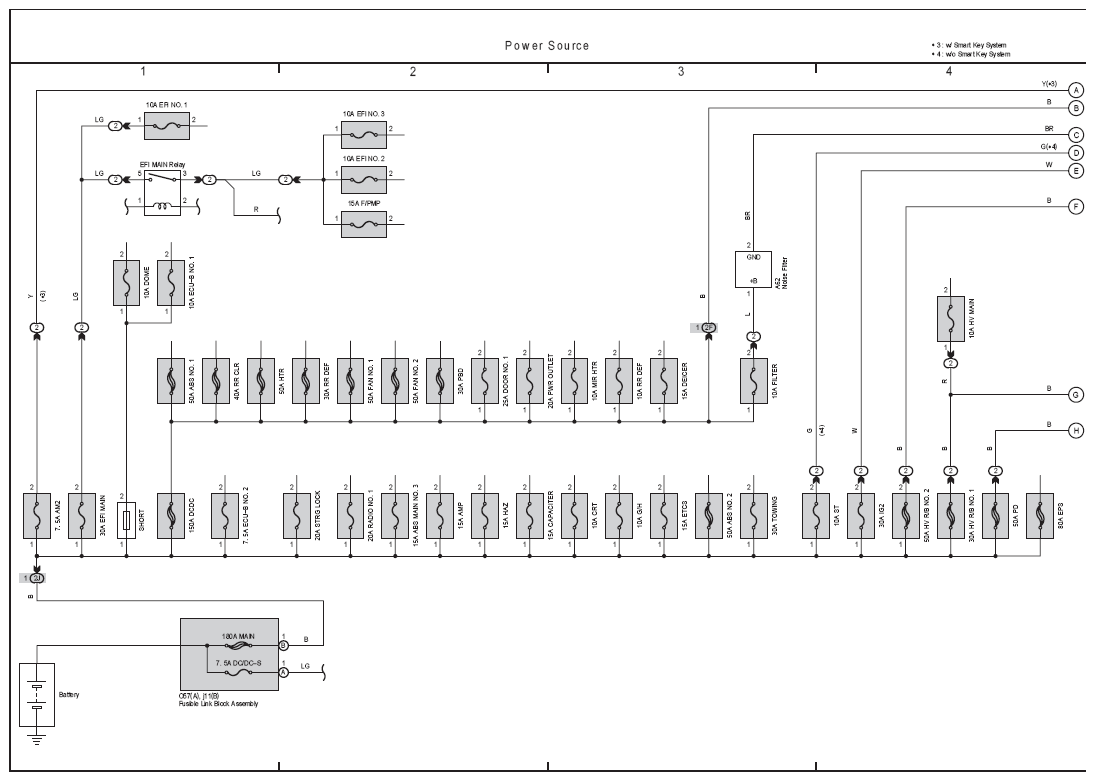

Fig 1: Power Source Electrical Wiring Diagram (1 Of 3)
G07115781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

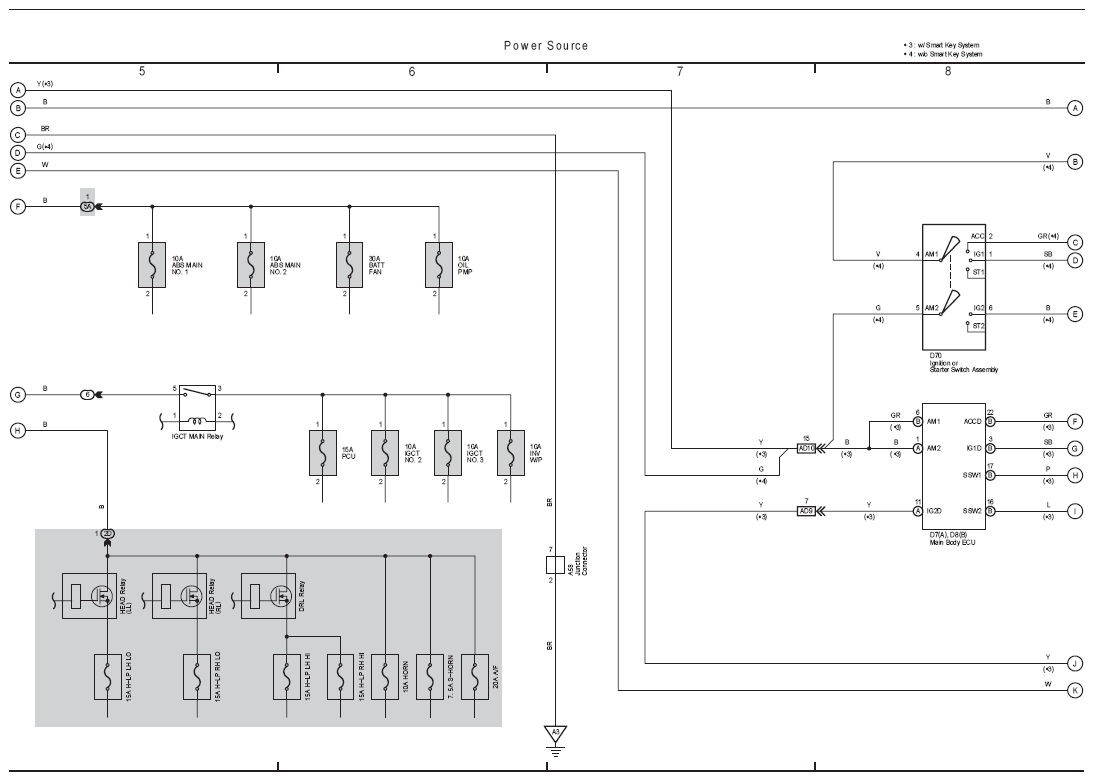

Fig 2: Power Source Electrical Wiring Diagram (2 Of 3)
G07115782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

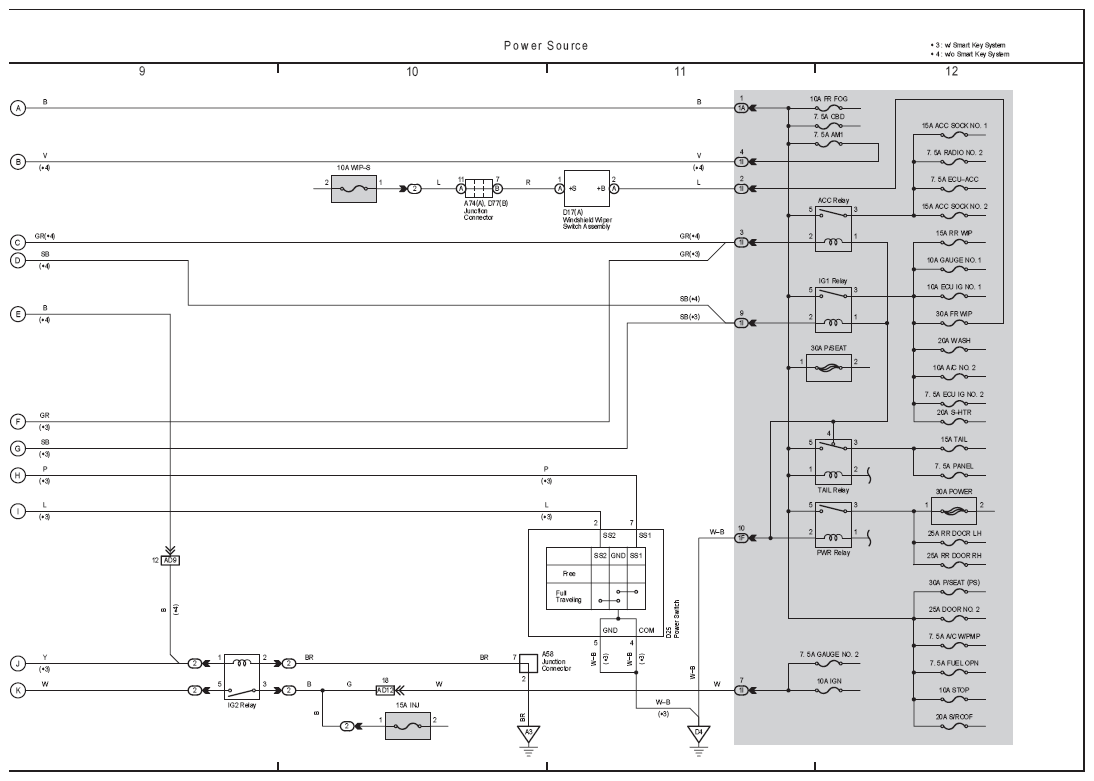

Fig 3: Power Source Electrical Wiring Diagram (3 Of 3)
G07115783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
