Multi-Display: Parking Assist (Rear View Monitor w/o Navigation System)

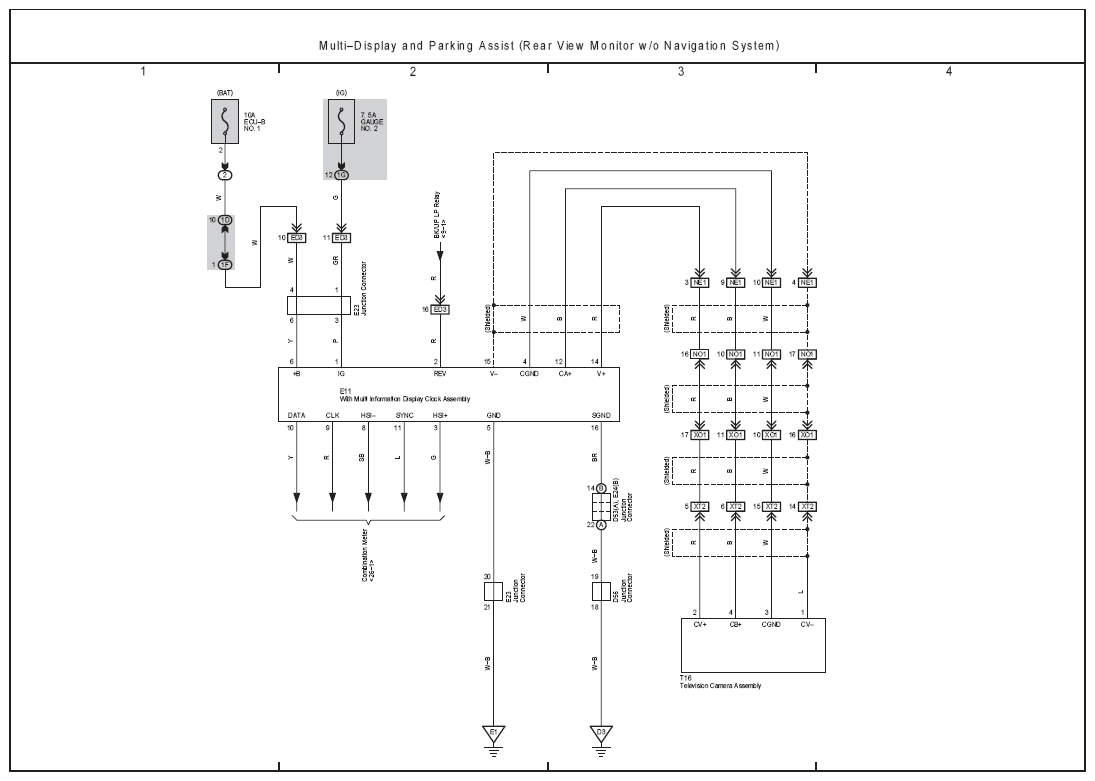

Fig 1: Multi-display And Parking Assist (Rear View Monitor w/o Navigation System) Electrical Wiring Diagram
G07115840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
