Mirror Heater: Remote Control Mirror

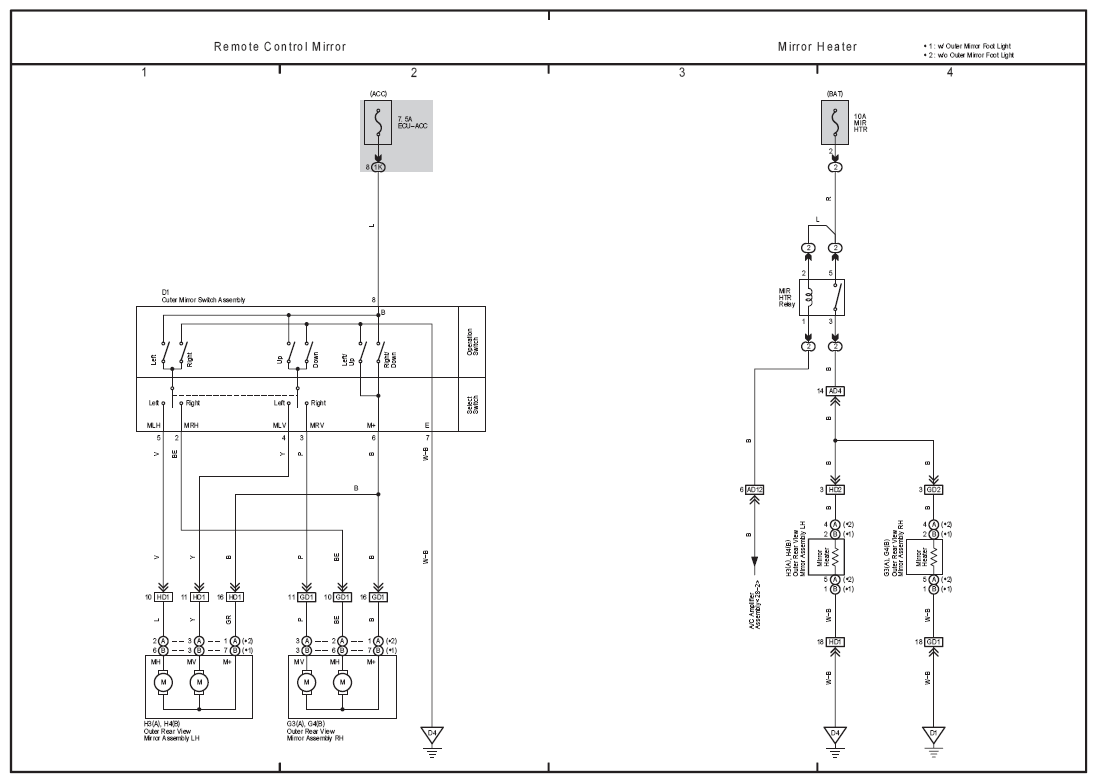

Fig 1: Remote Control Mirror And Mirror Heater Electrical Wiring Diagram

G07115837

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
