Hybrid Vehicle Immobiliser: Push-Button Start: Steering Lock: Wireless Door Lock Control: SRS

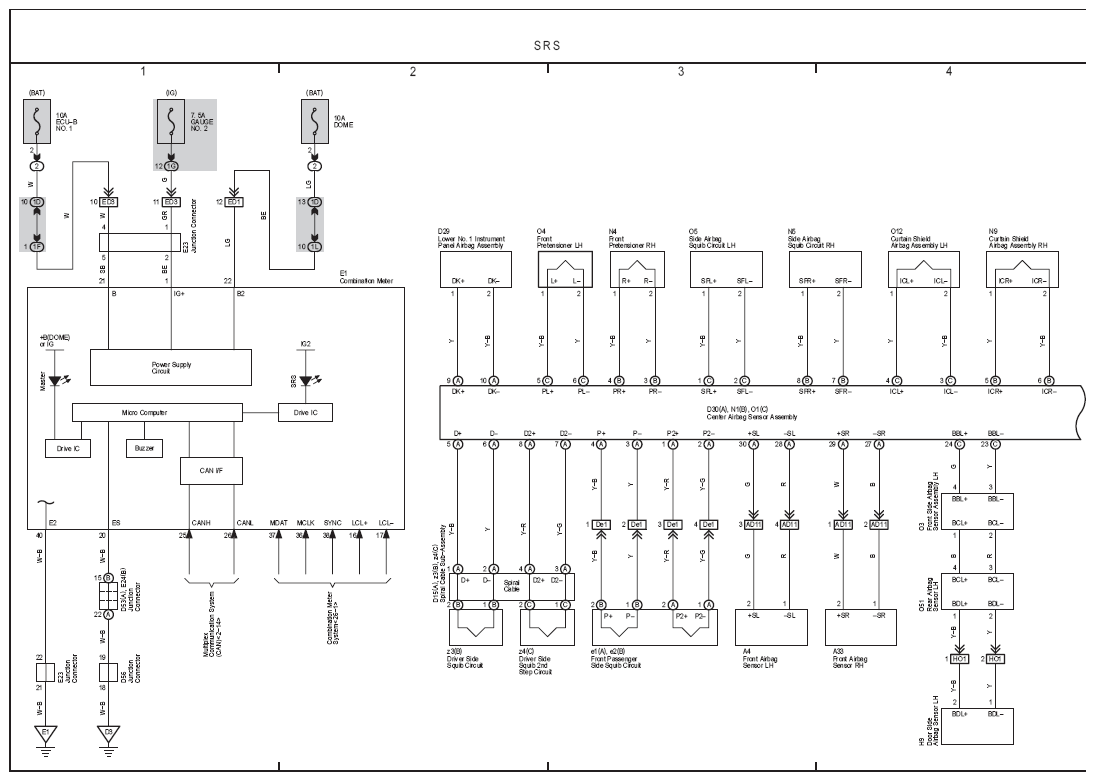

Fig 1: SRS Electrical Wiring Diagram (1 Of 2)
G07115830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

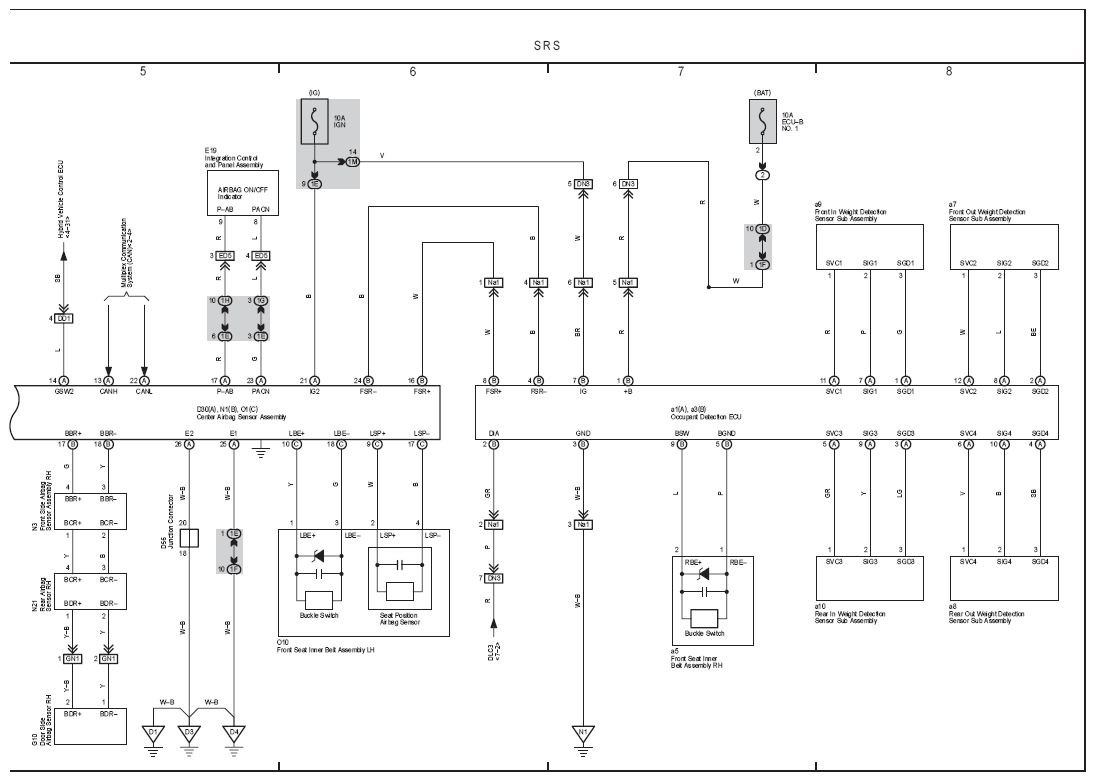

Fig 2: SRS Electrical Wiring Diagram (1 Of 2)
G07115831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
