Hybrid System

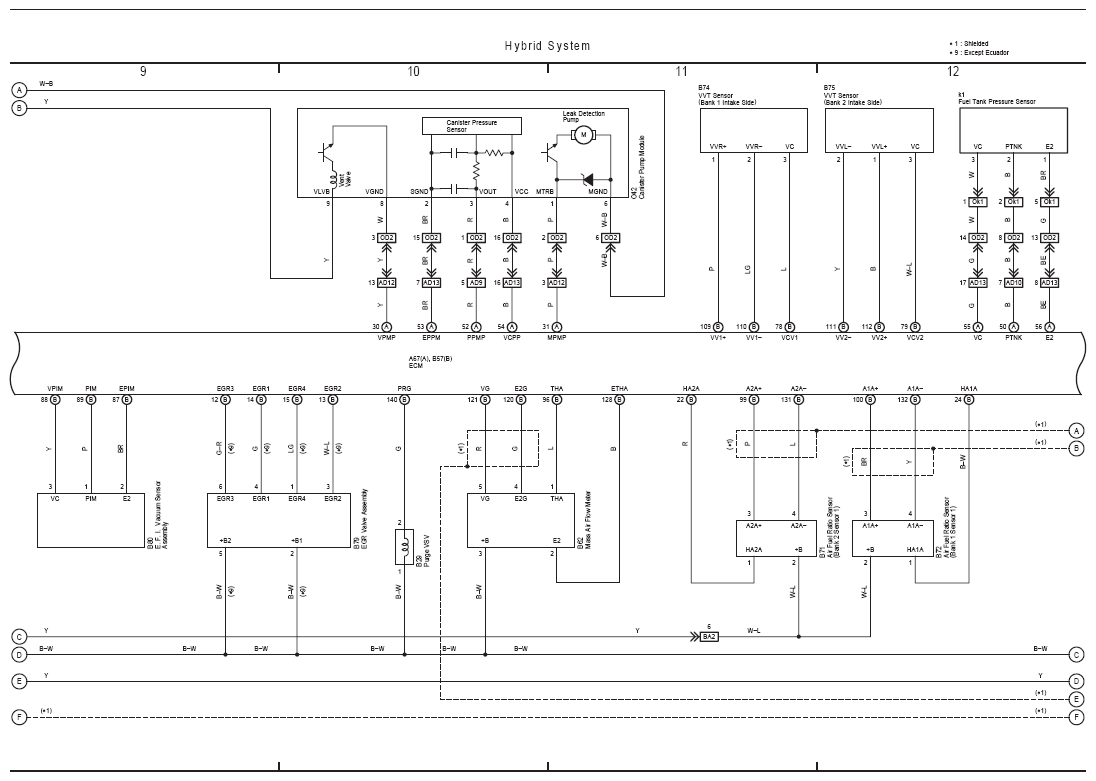

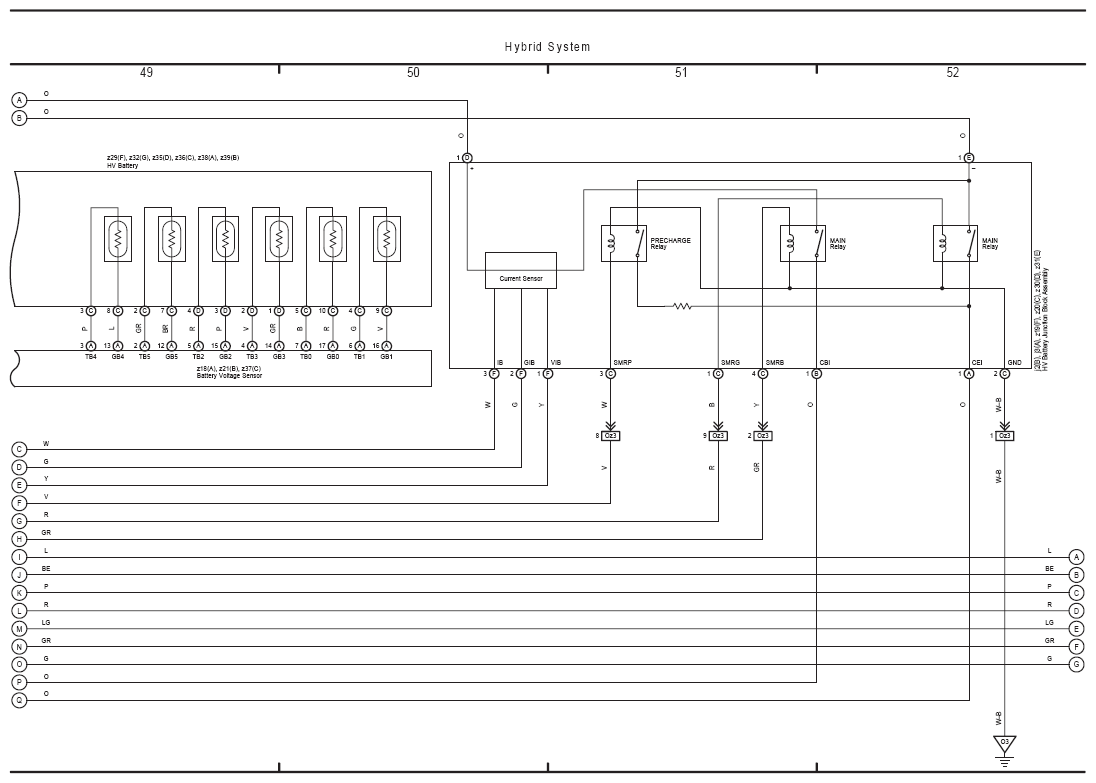

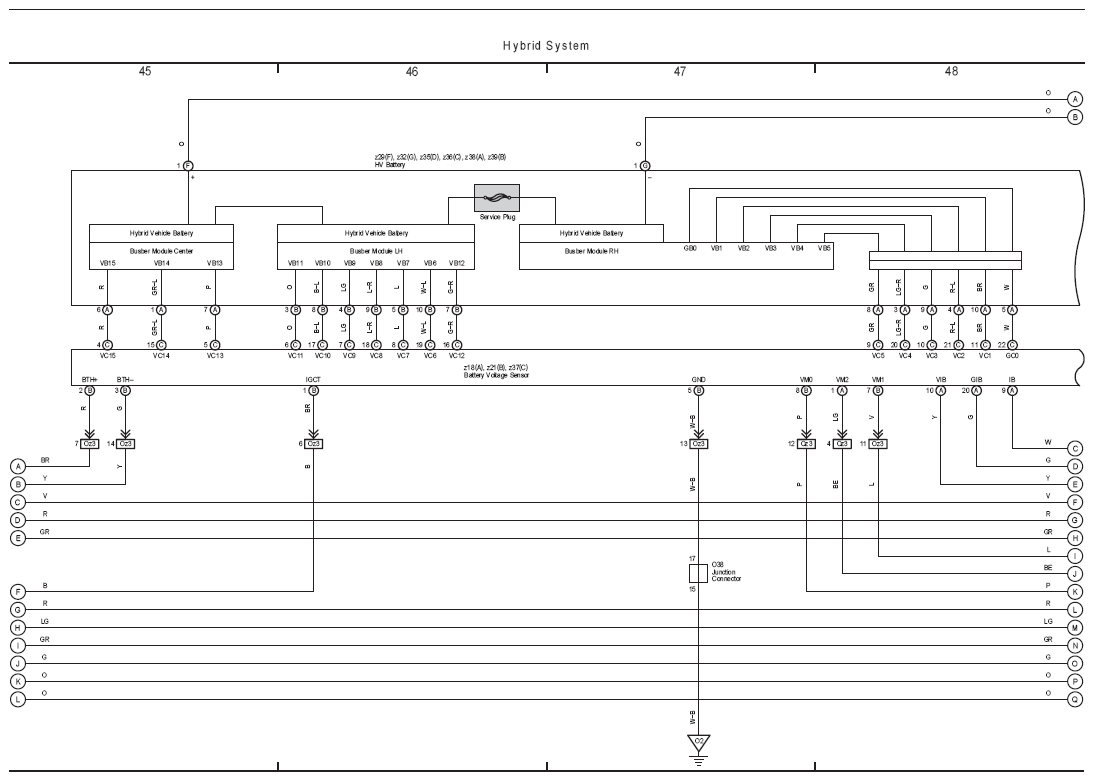

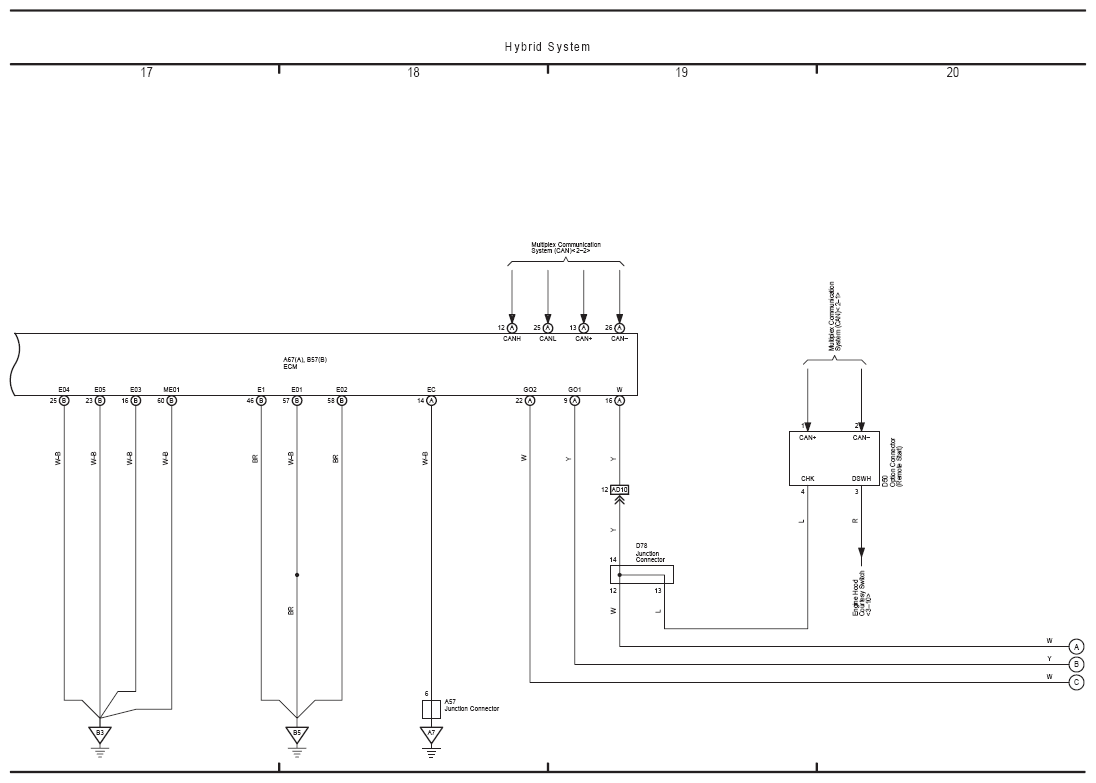

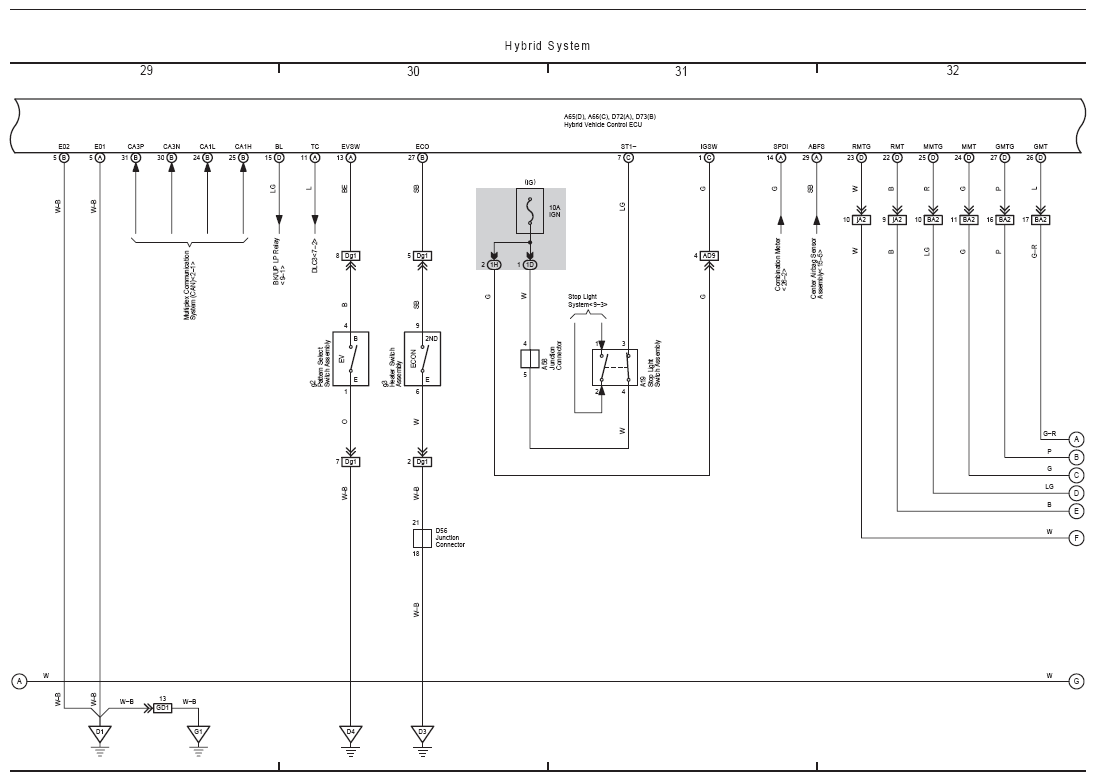

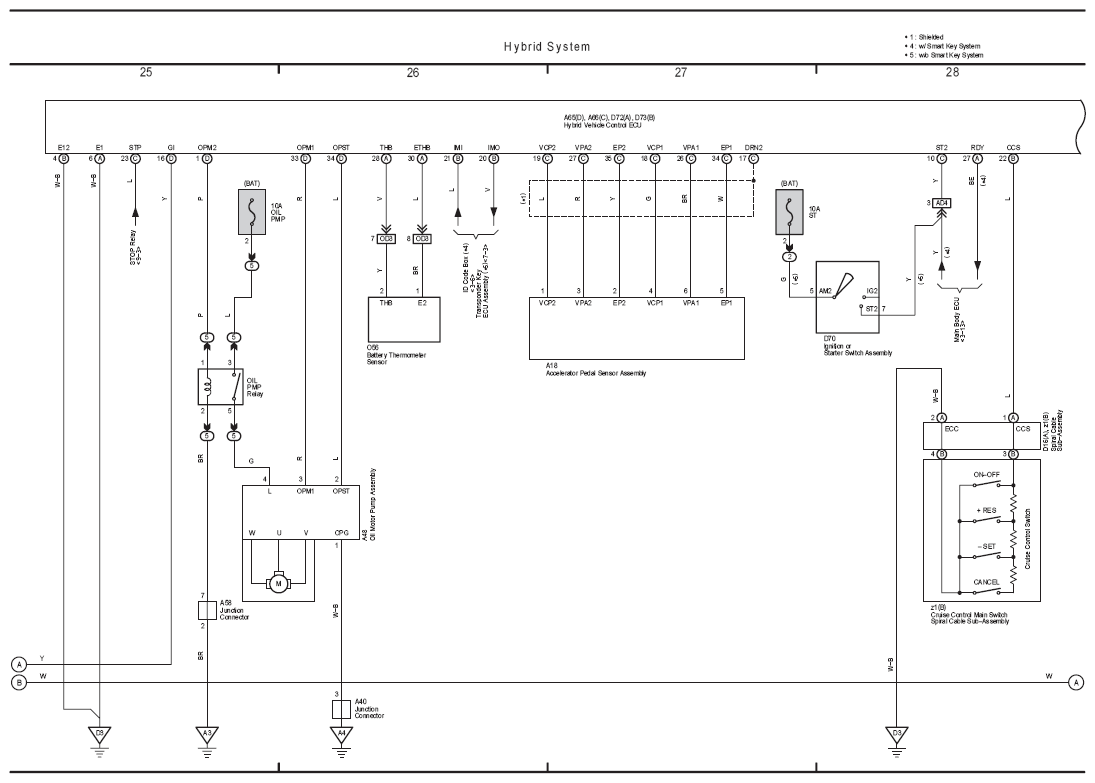

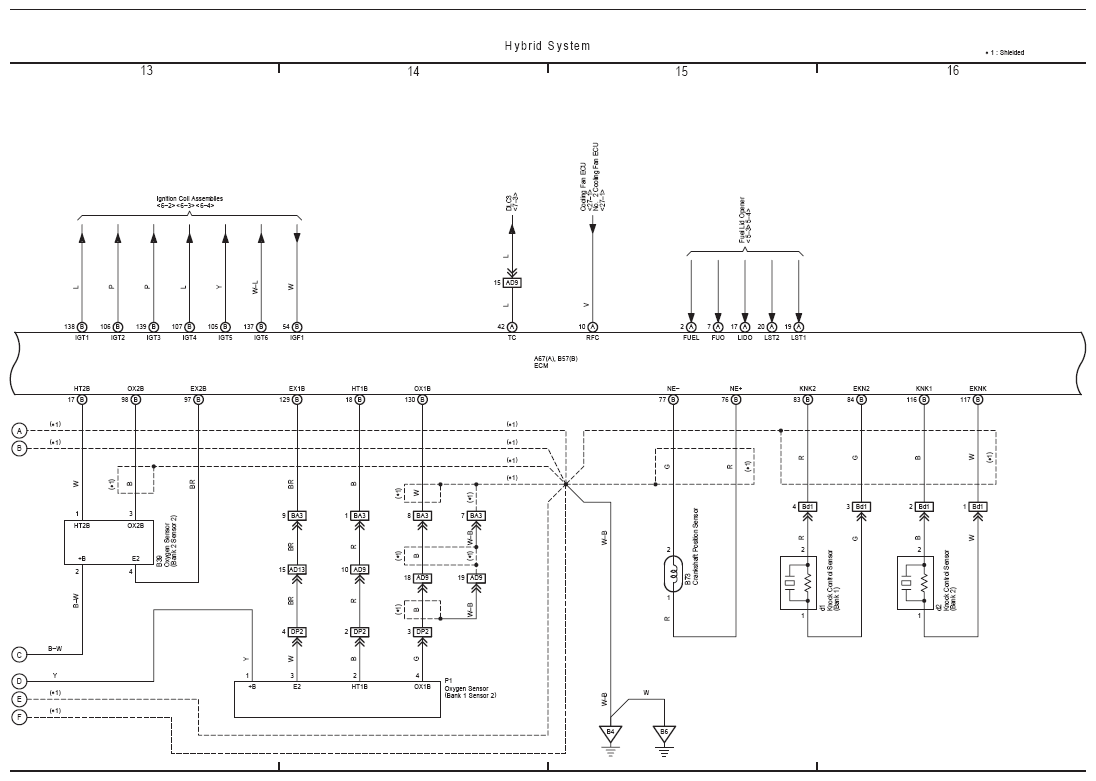

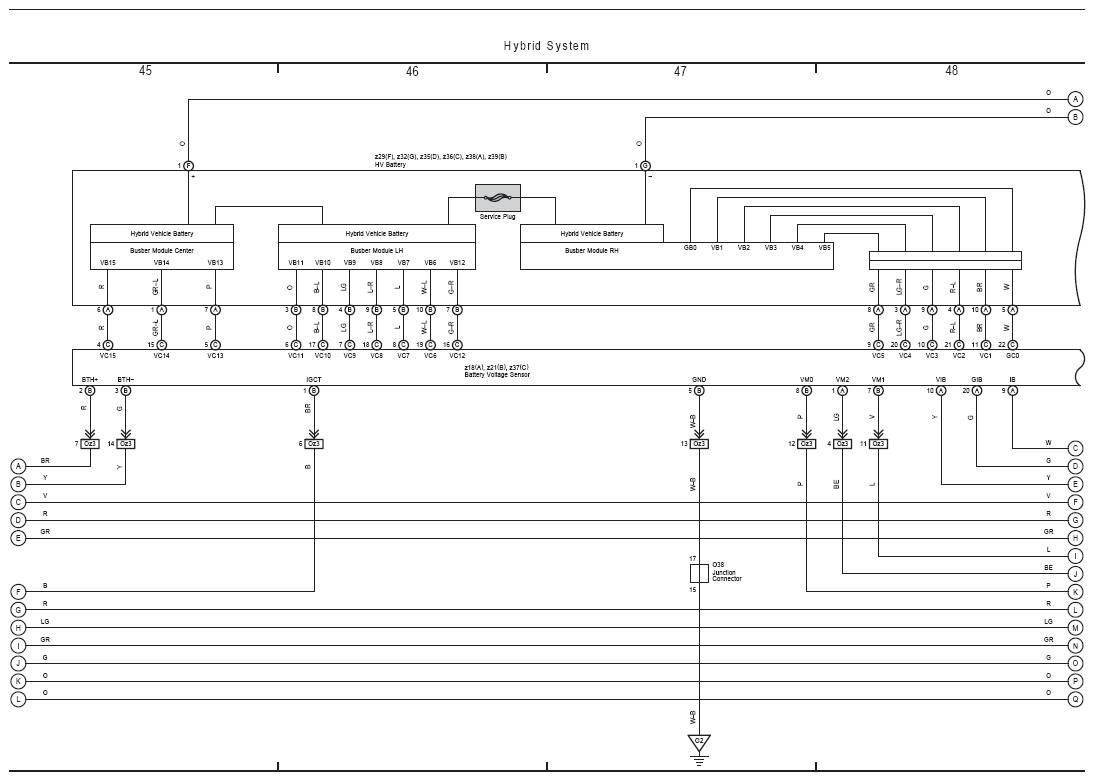

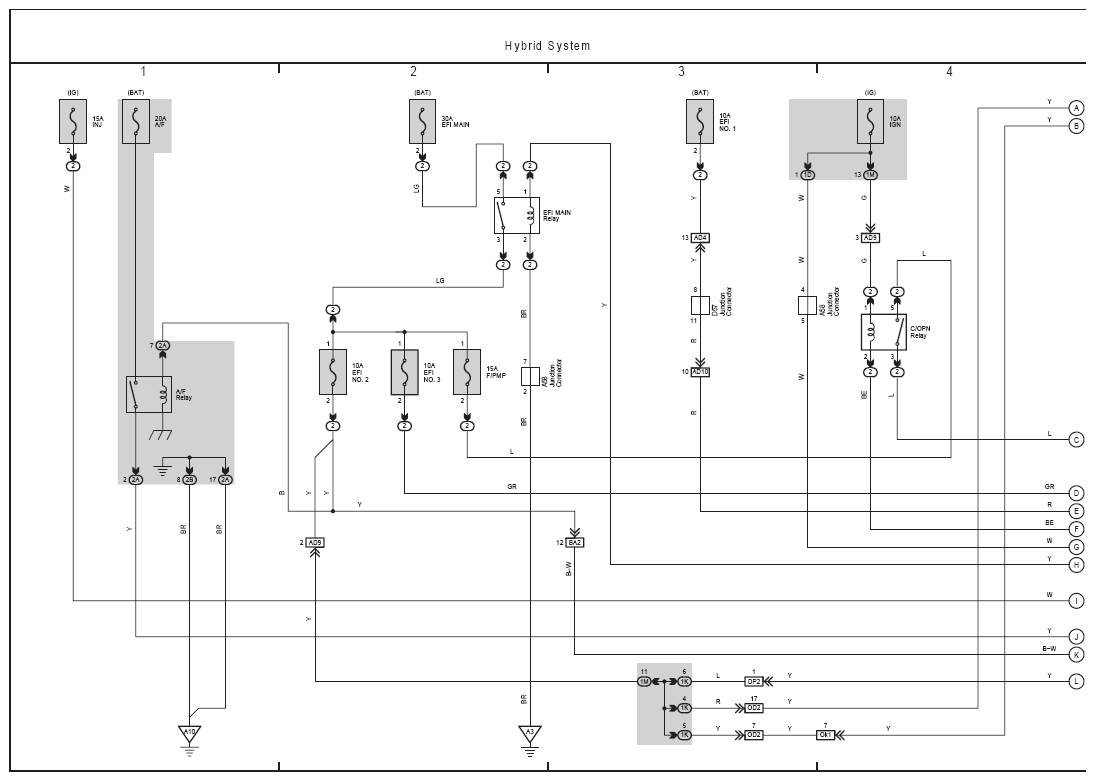

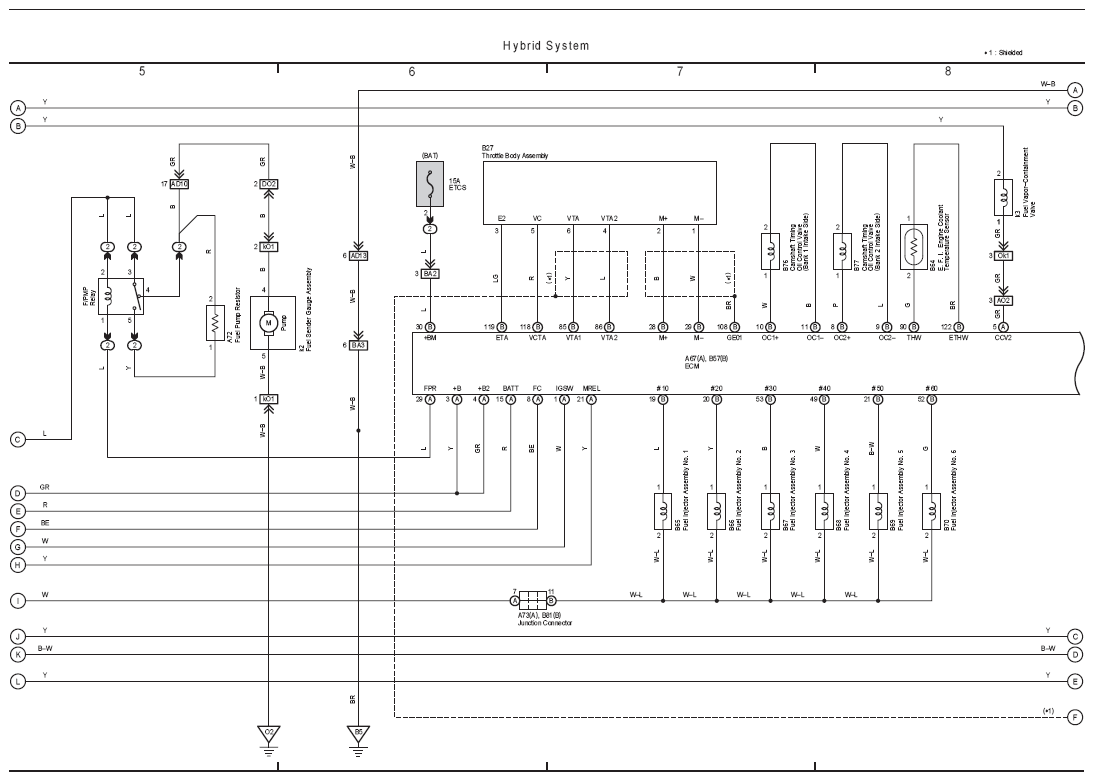

Fig 1: Hybrid System Electrical Wiring Diagram (1 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

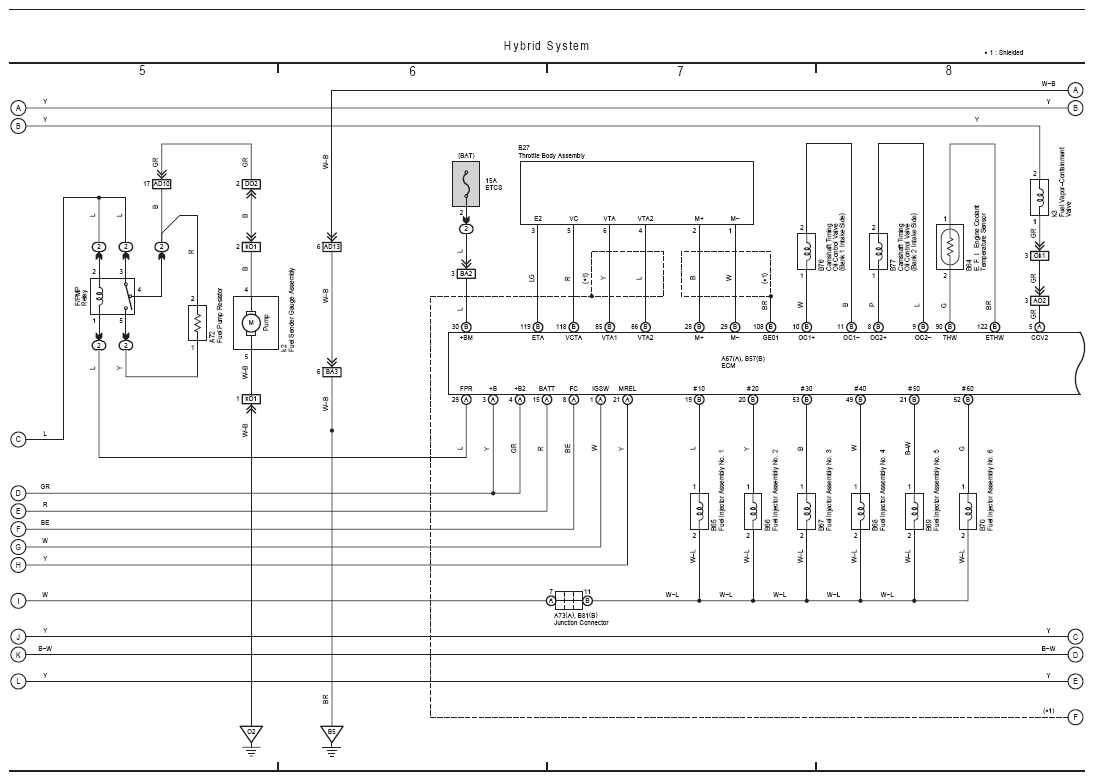

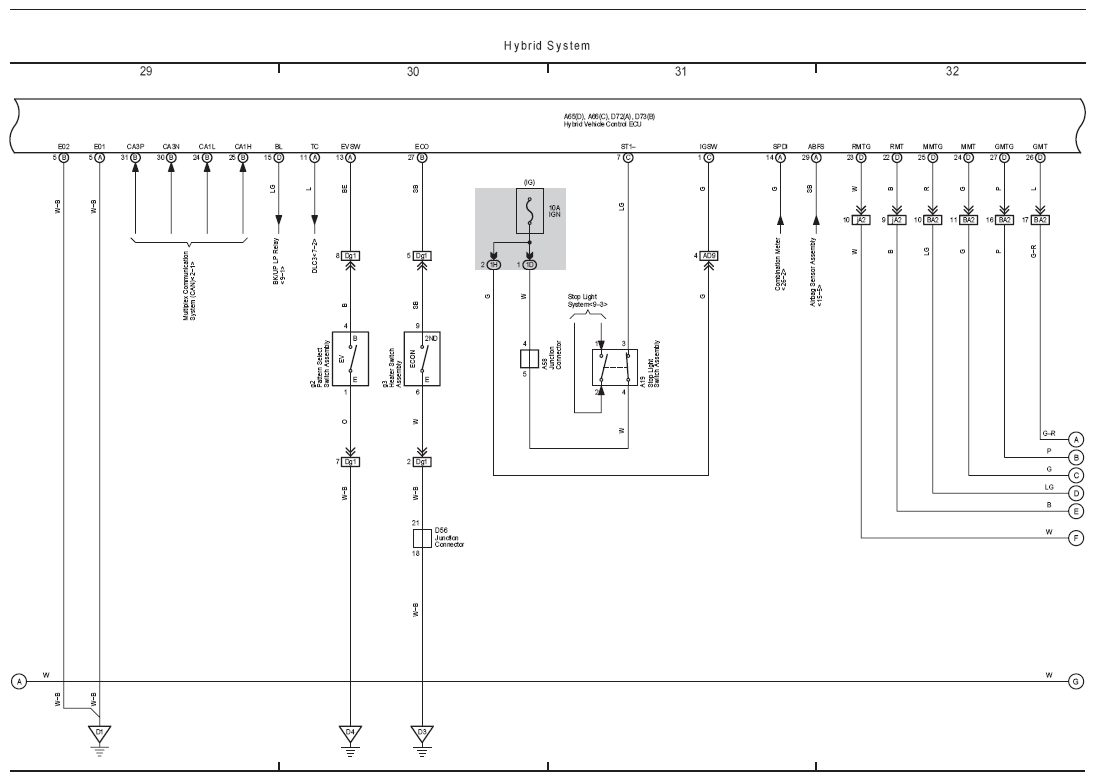

Fig 2: Hybrid System Electrical Wiring Diagram (2 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Hybrid System Electrical Wiring Diagram (3 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Hybrid System Electrical Wiring Diagram (4 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Hybrid System Electrical Wiring Diagram (5 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

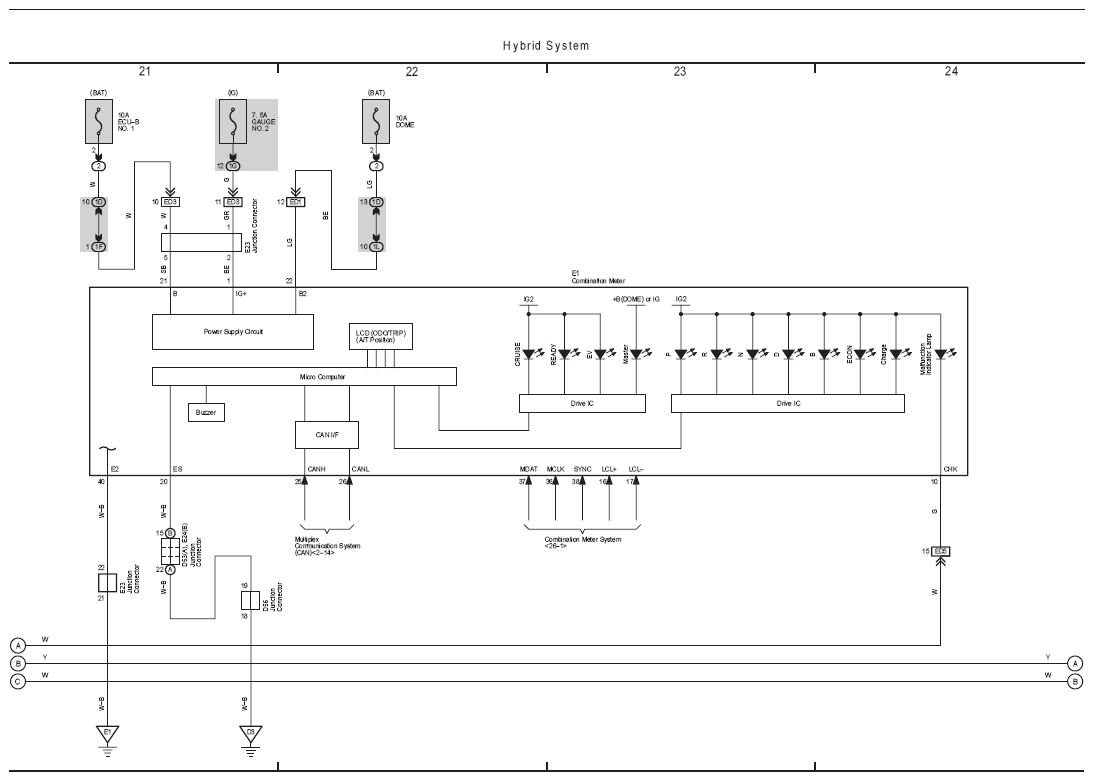

Fig 6: Hybrid System Electrical Wiring Diagram (6 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

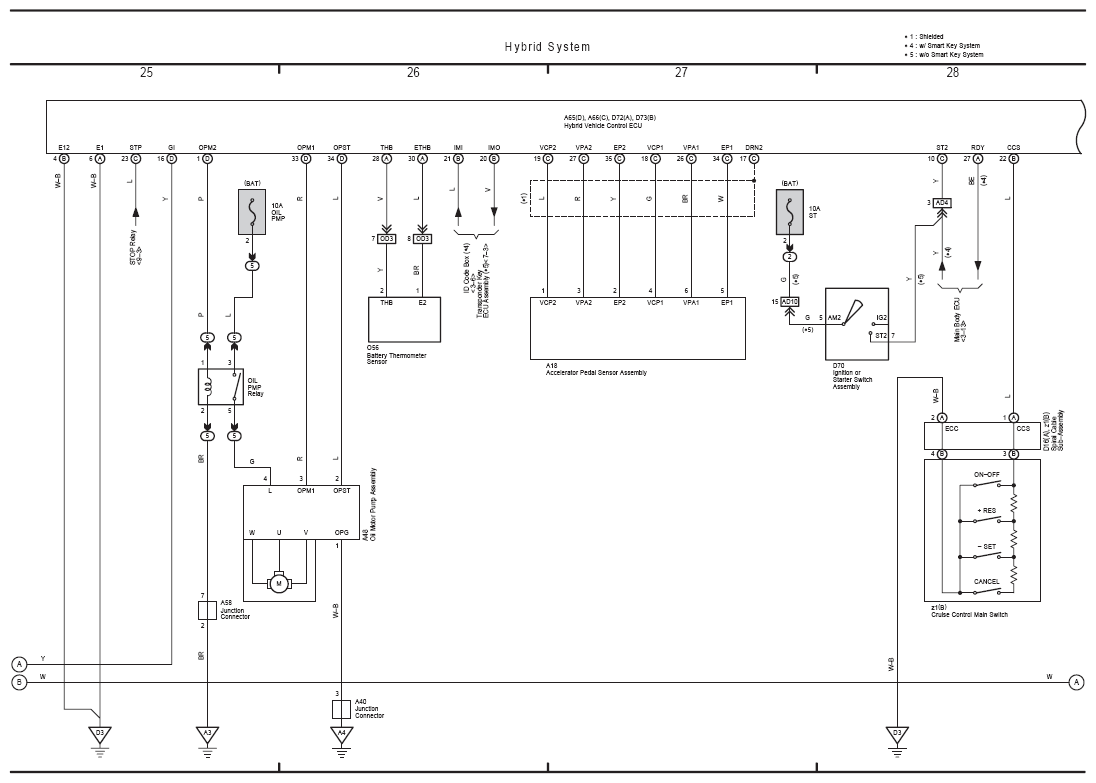

Fig 7: Hybrid System Electrical Wiring Diagram (7 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Hybrid System Electrical Wiring Diagram (8 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

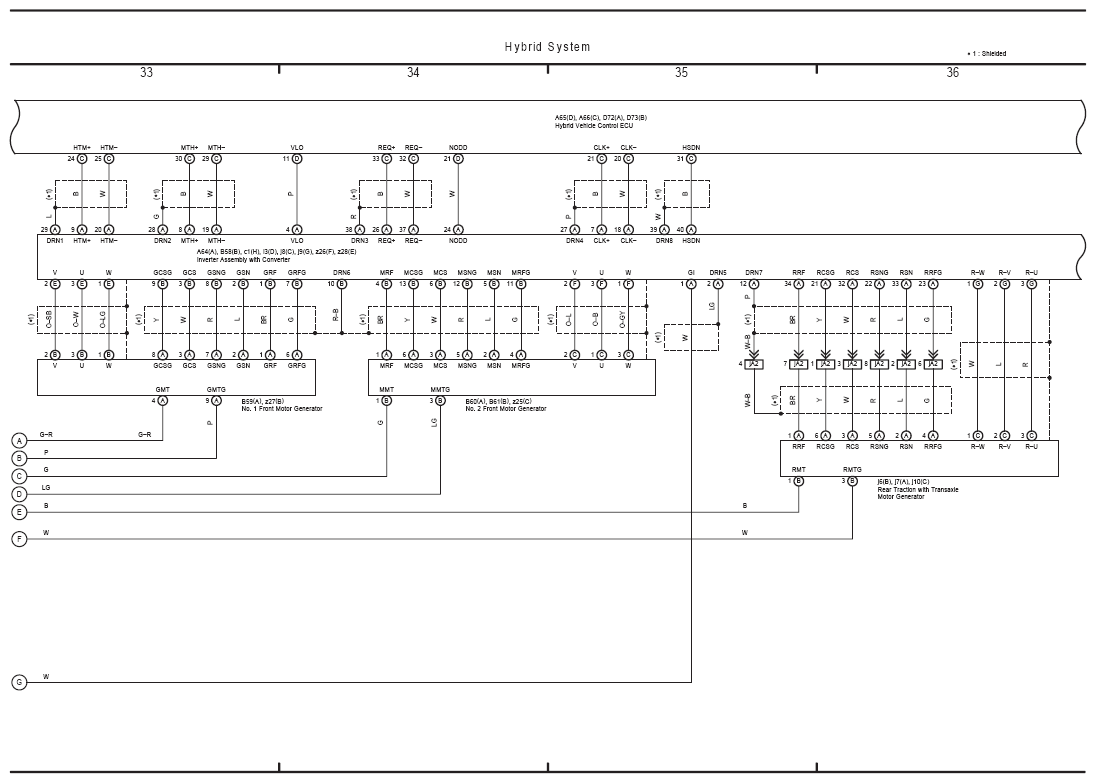

Fig 9: Hybrid System Electrical Wiring Diagram (9 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

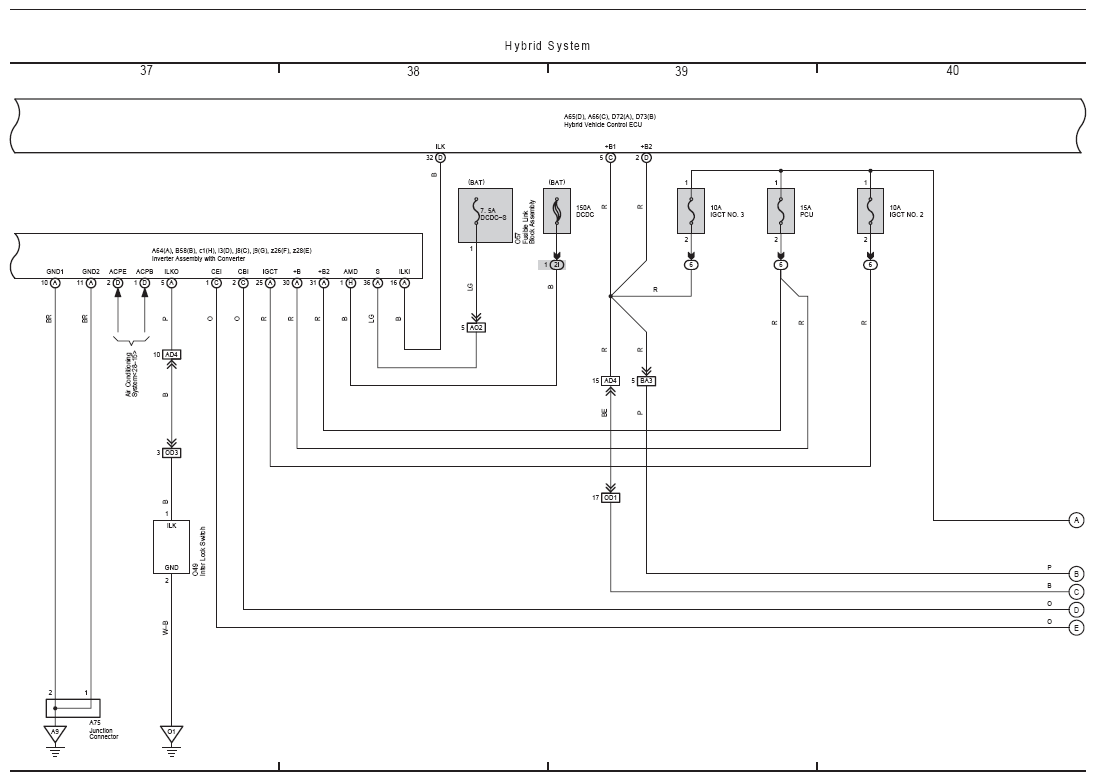

Fig 10: Hybrid System Electrical Wiring Diagram (10 Of 14)

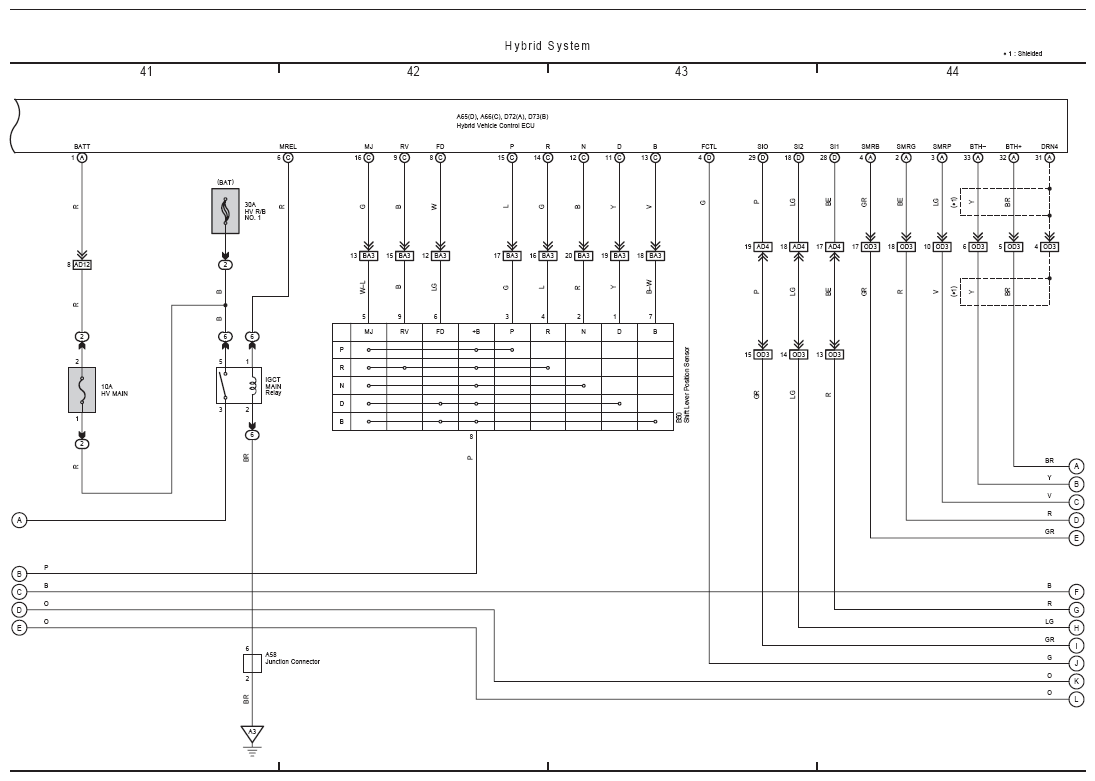

Fig 11: Hybrid System Electrical Wiring Diagram (11 Of 14)

Fig 12: Hybrid System Electrical Wiring Diagram (12 Of 14)

Fig 13: Hybrid System Electrical Wiring Diagram (13 Of 14)

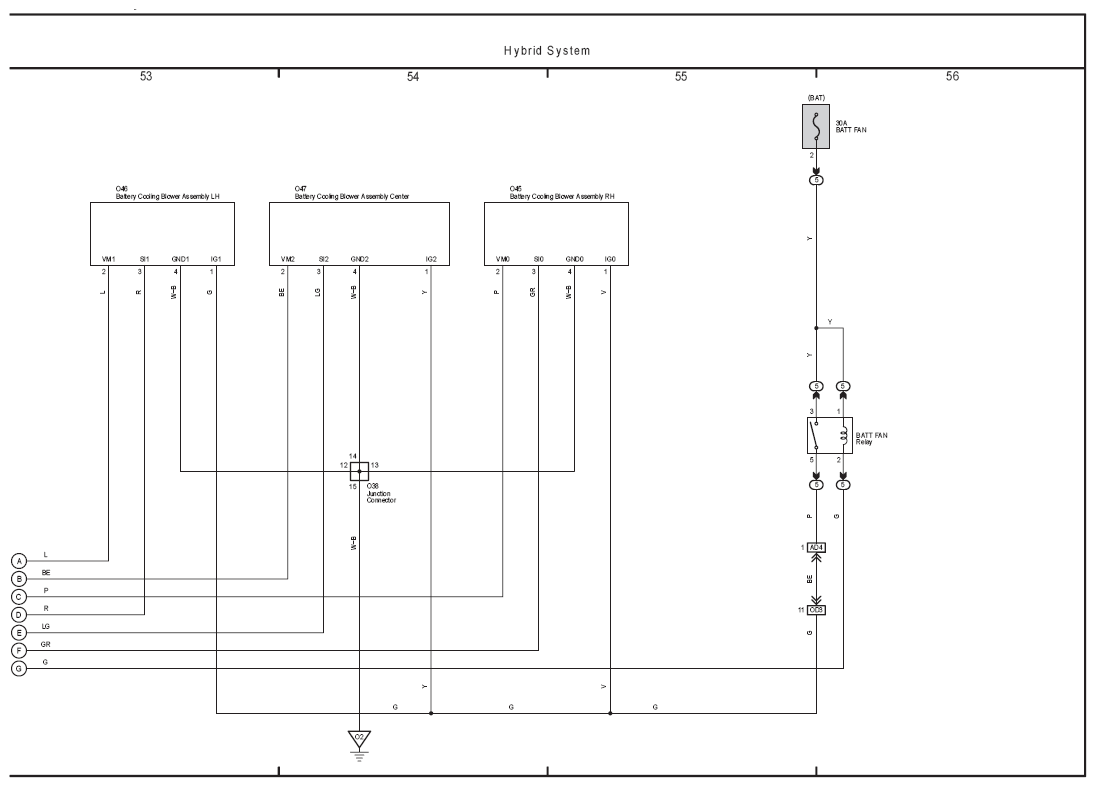

Fig 14: Hybrid System Electrical Wiring Diagram (14 Of 14)
