How To Read This Section

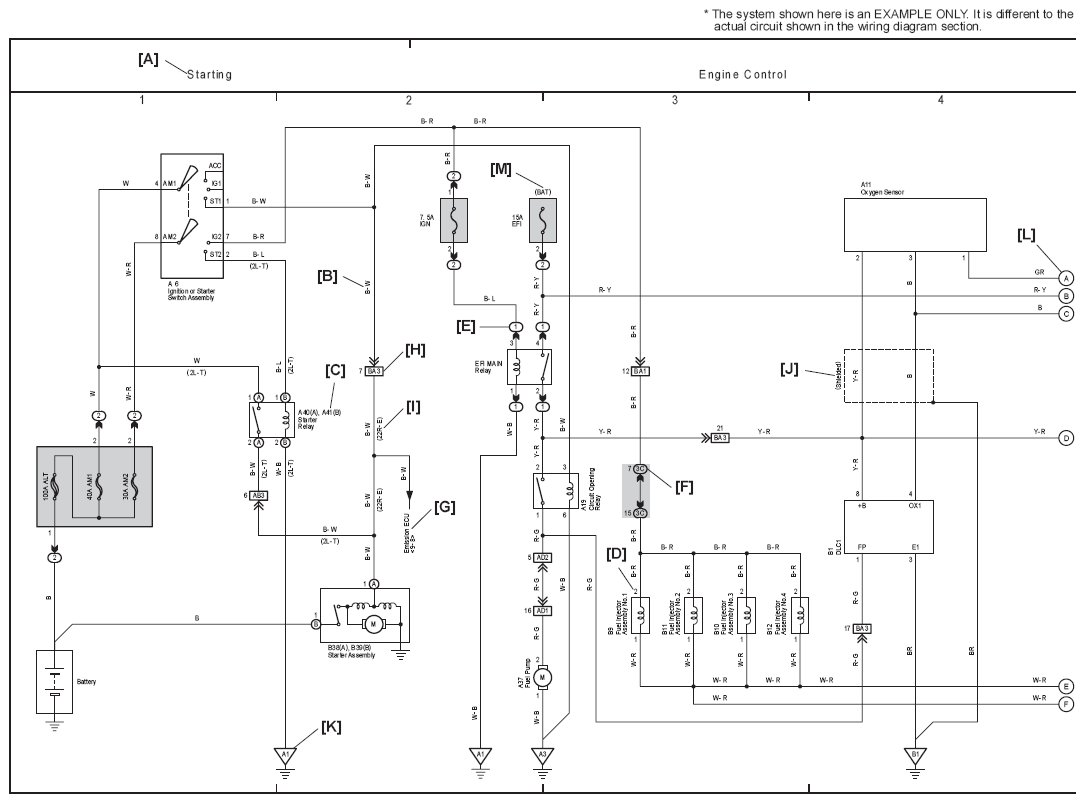

Fig 1: Electrical Wiring Diagram Example
G07115779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

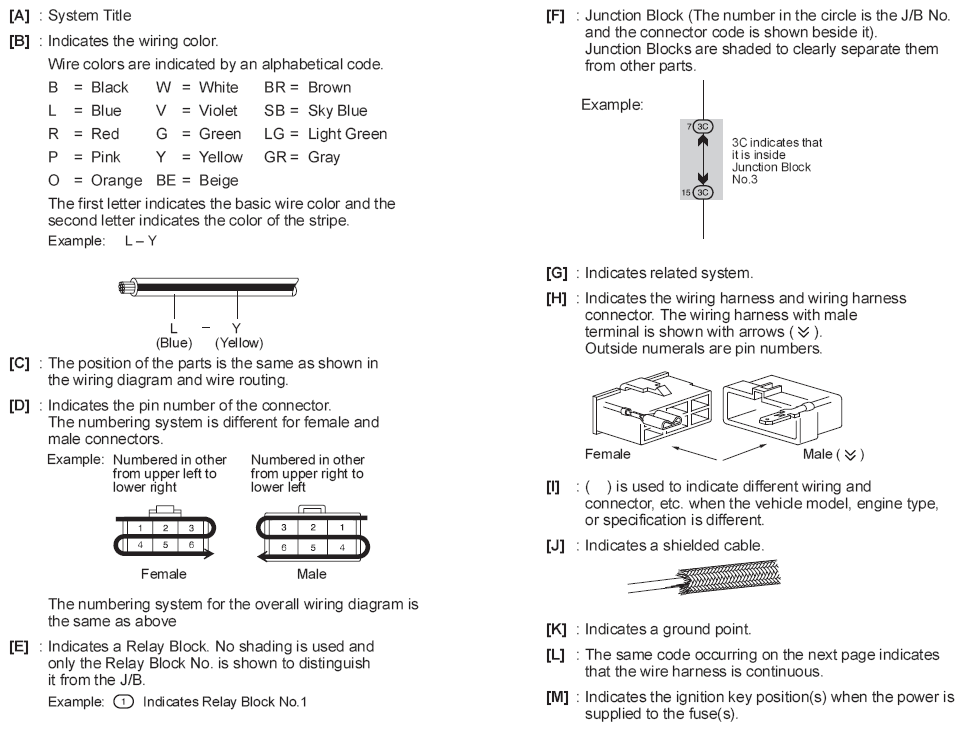

Fig 2: Electrical Wiring Diagram Example (Legends)
G07115780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
