Front Window Deicer: Horn: Shift Lock

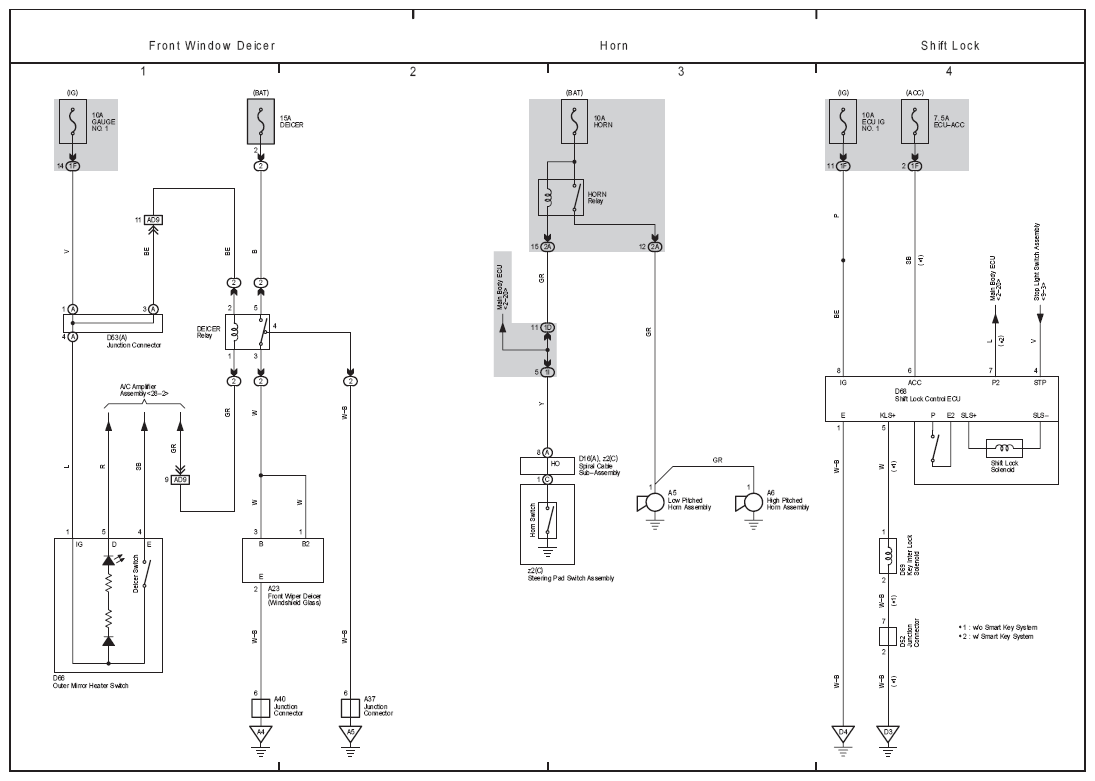

Fig 1: Front Window Deicer, Horn And Shift Lock Electrical Wiring Diagram

G07115838

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
