Data Link Connector 3: Engine Immobiliser System (w/o Smart Key System)

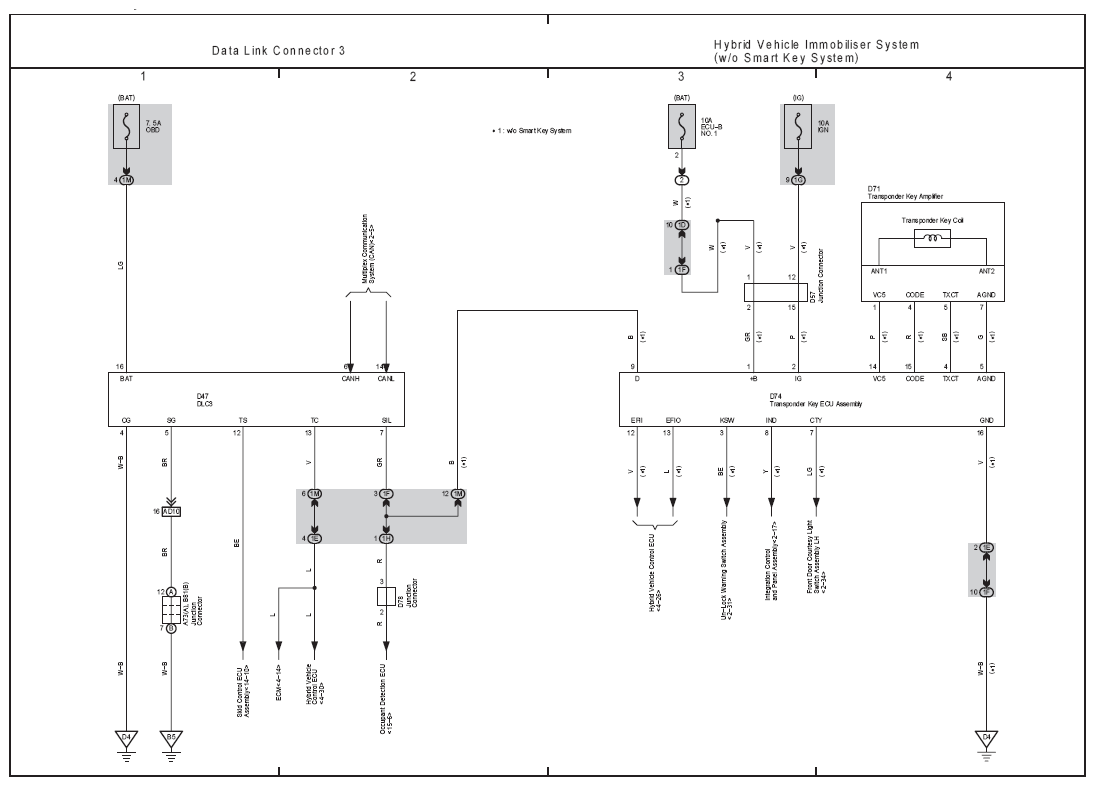

Fig 1: Data Link Connector 3 And Hybrid Vehicle Immobiliser System (w/o Smart Key System) Electrical Wiring Diagram
G07115819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
