Cruise Control: Engine Control: Option Connector (Remote Engine Start): Shift Control: Starting (w/o Smart Key System): Ignition

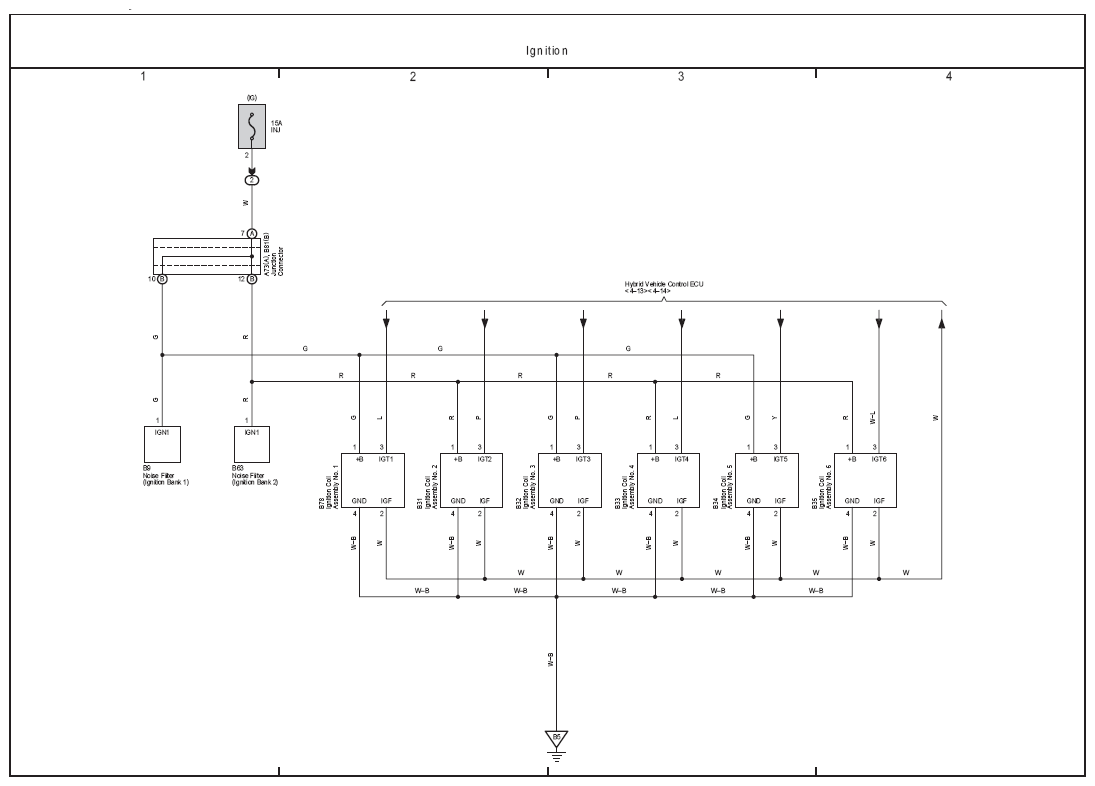

Fig 1: Ignition Electrical Wiring Diagram
G07115818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
