Automatic Glare-Resistant EC Mirror with Compass: Sliding Roof

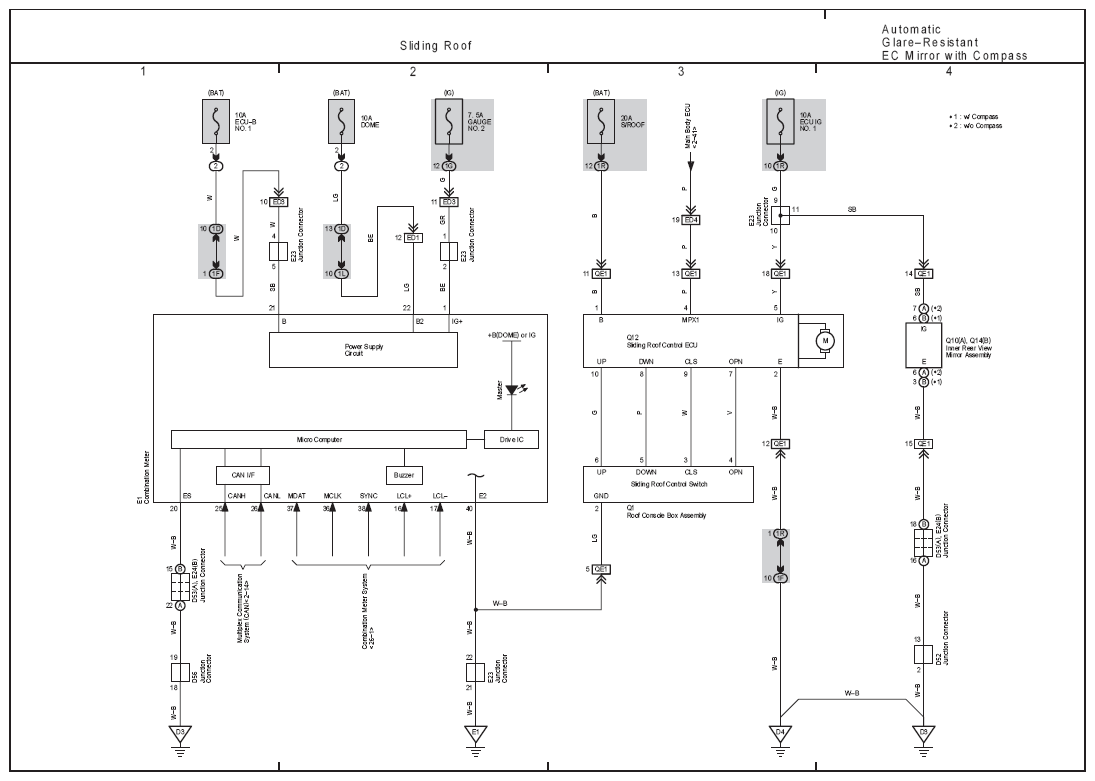

Fig 1: Sliding Roof And Automatic Glare-Resistant EC Mirror With Compass Electrical Wiring Diagram
G07115824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
