OEM Electrical Wiring Harness Routing (Hybrid)
>>
Position of Parts in Seat
>>
W/o Front Passenger's Power Seat
>>
Notes
W/o Front Passenger's Power Seat: Notes

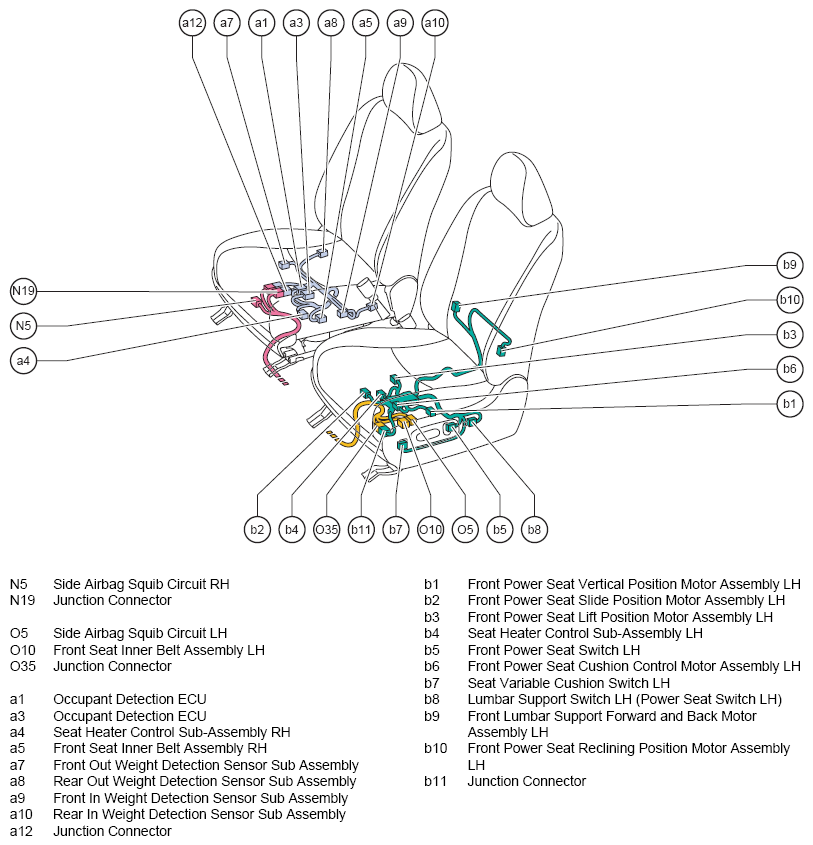

Fig 1: Seat Parts (w/o Front Passenger's Power Seat)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
