DTC C1252/52: Brake Booster Pump Motor on Time Abnormally Long; DTC C1253/53: Pump Motor Relay Malfunction: Wiring Diagram

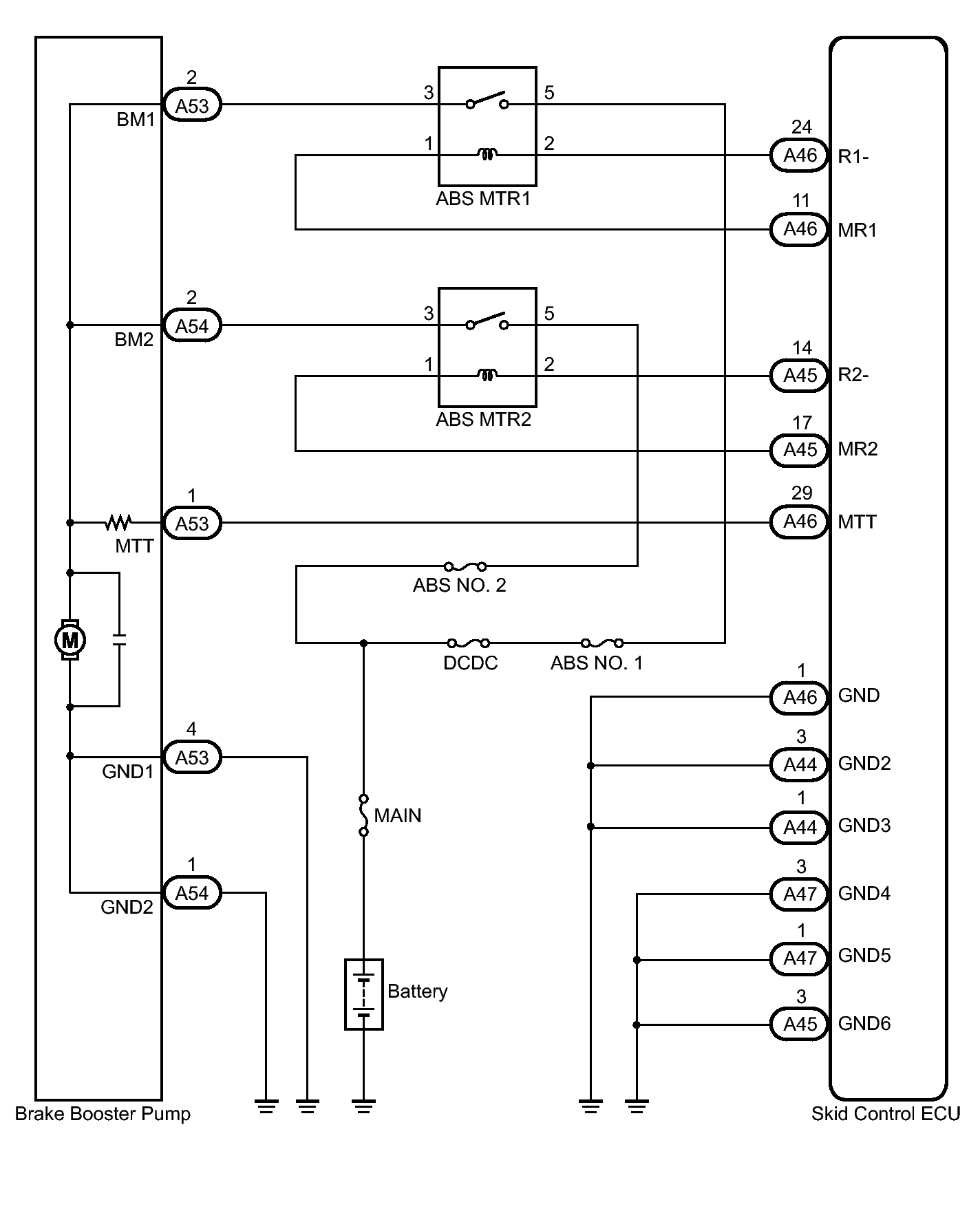

Fig 1: Identifying Brake Booster Pump Motor Circuit- Wiring Diagram
GTY305467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
