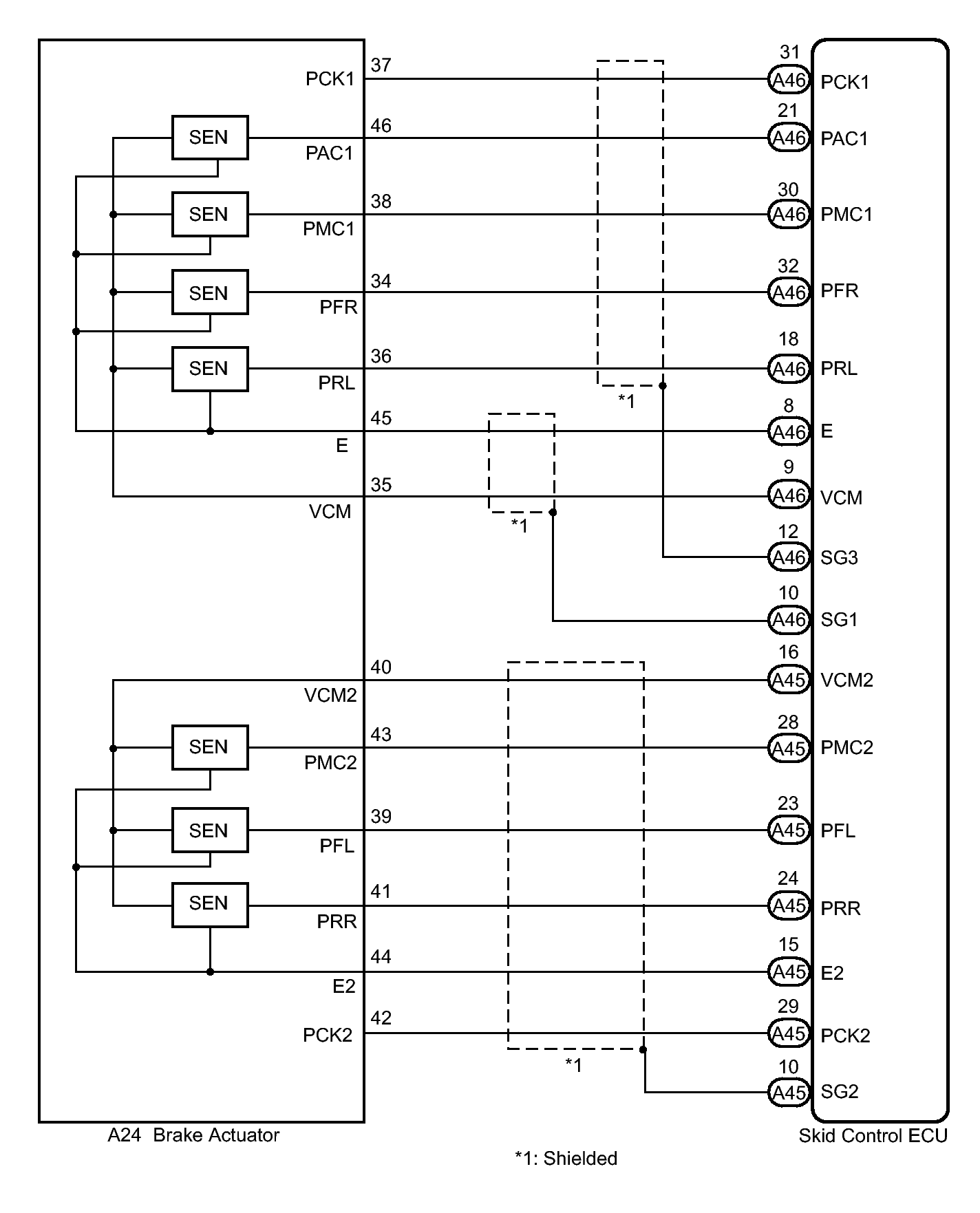

DTC C1246/46: Master Cylinder Pressure Sensor Malfunction; DTC C1281/81: Master Cylinder Pressure Sensor Output Malfunction (Test Mode DTC); DTC C1364/61: Wheel Cylinder Pressure Sensor Malfunction: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
