Brake Warning Light Remains ON: Wiring Diagram

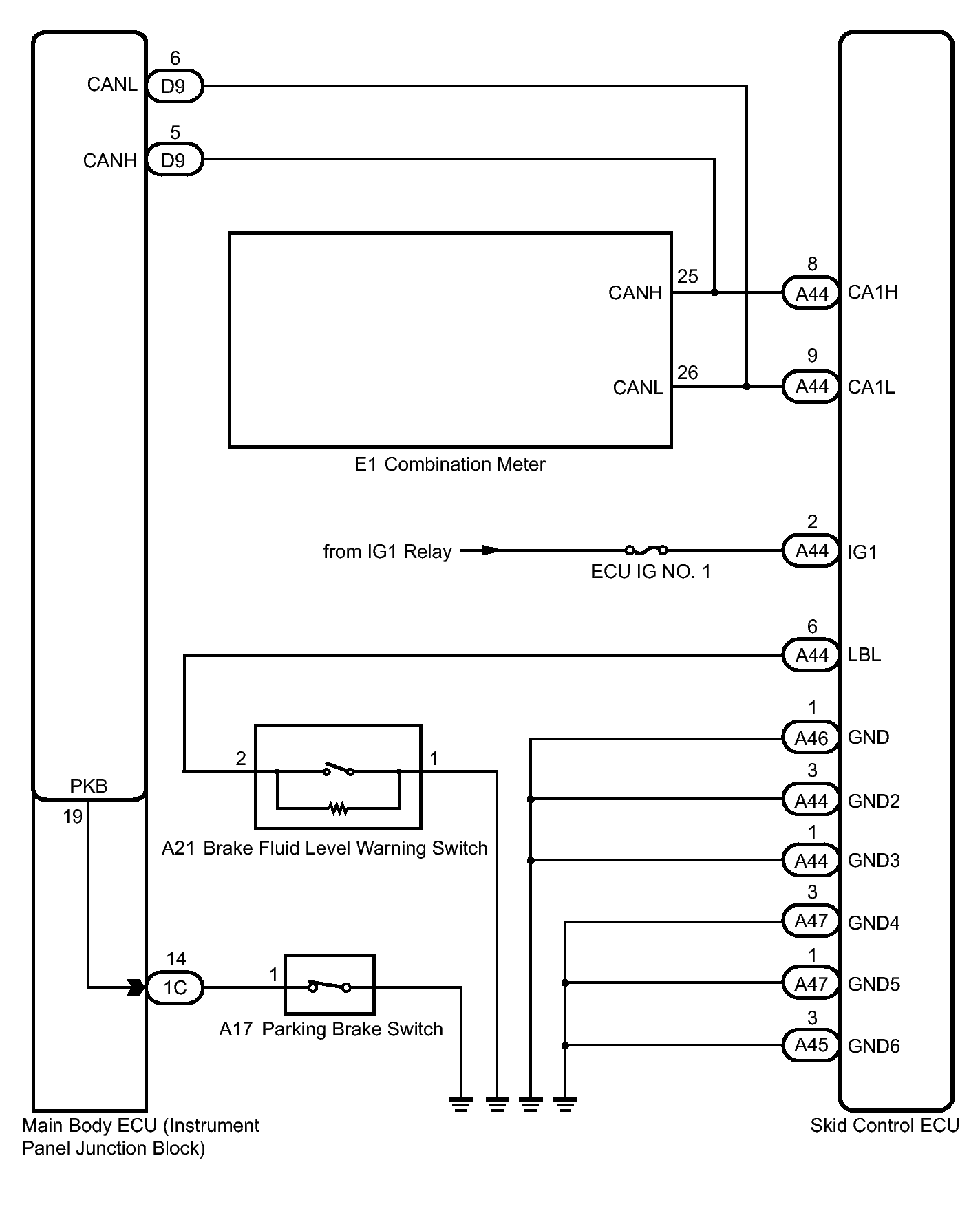

Fig 1: Identifying main Body ECU Wiring Diagram

GTY306435

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
