ABS Warning Light Remains ON: Wiring Diagram

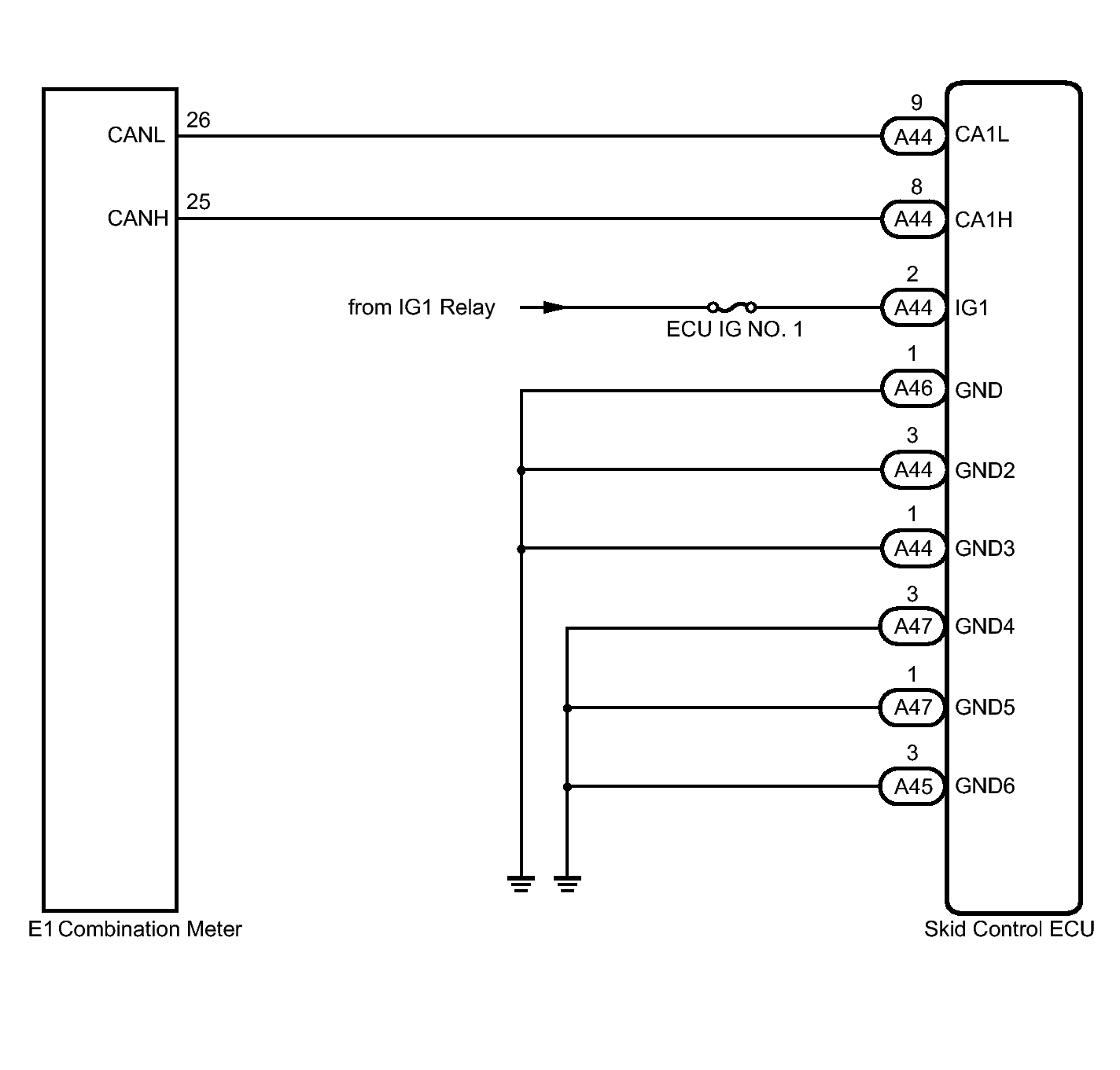

Fig 1: Identifying Skid Control ECU Wiring Diagram

GTY307035

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
