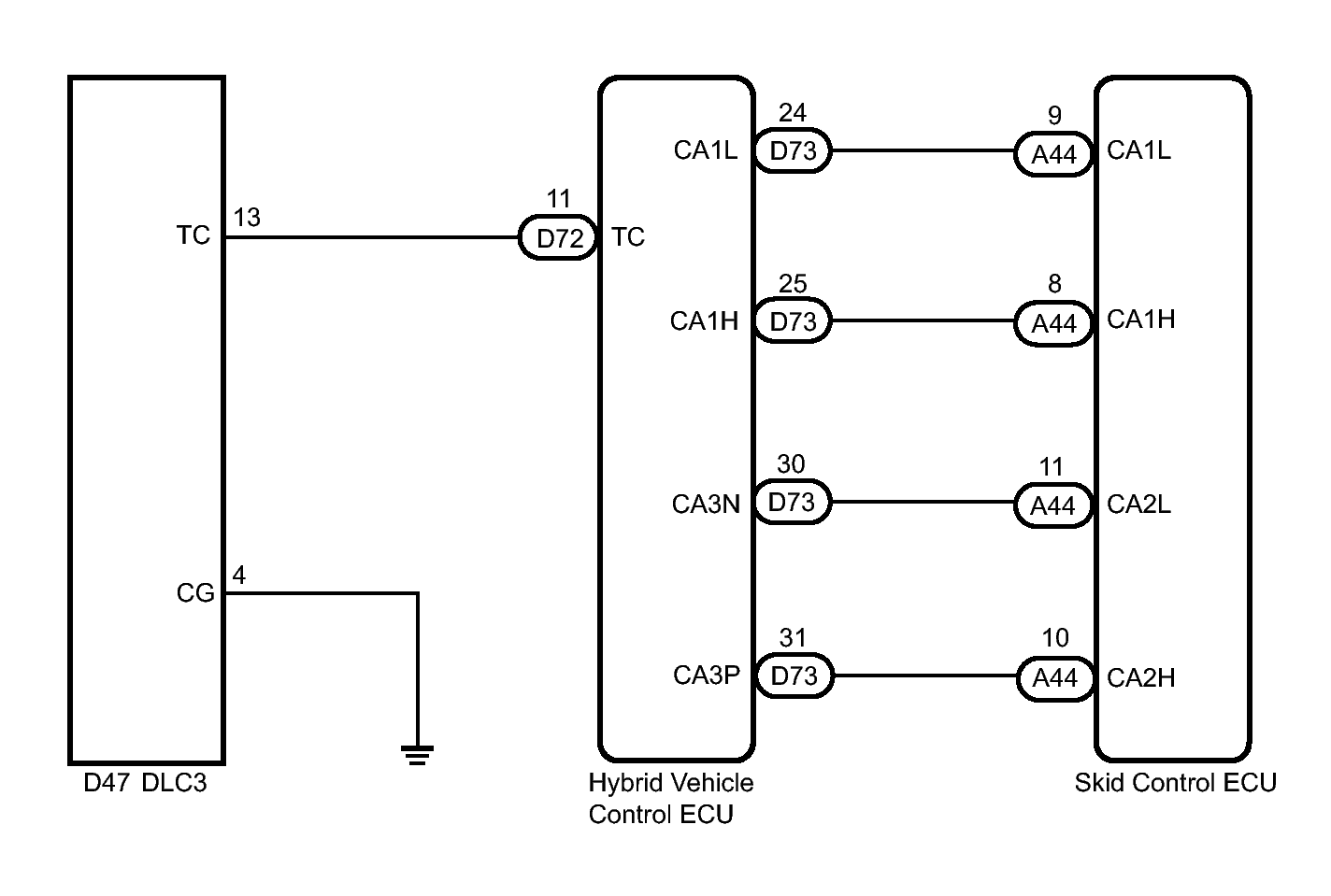

TC and CG Terminal Circuit: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HINT:
When the warning lights continue to blink, a ground short in the wiring of terminal TC of the DLC3 or an internal ground short in one or more ECUs may be the cause.
