DTC C1319/35: SCSS Changeover Solenoid Malfunction: Wiring Diagram

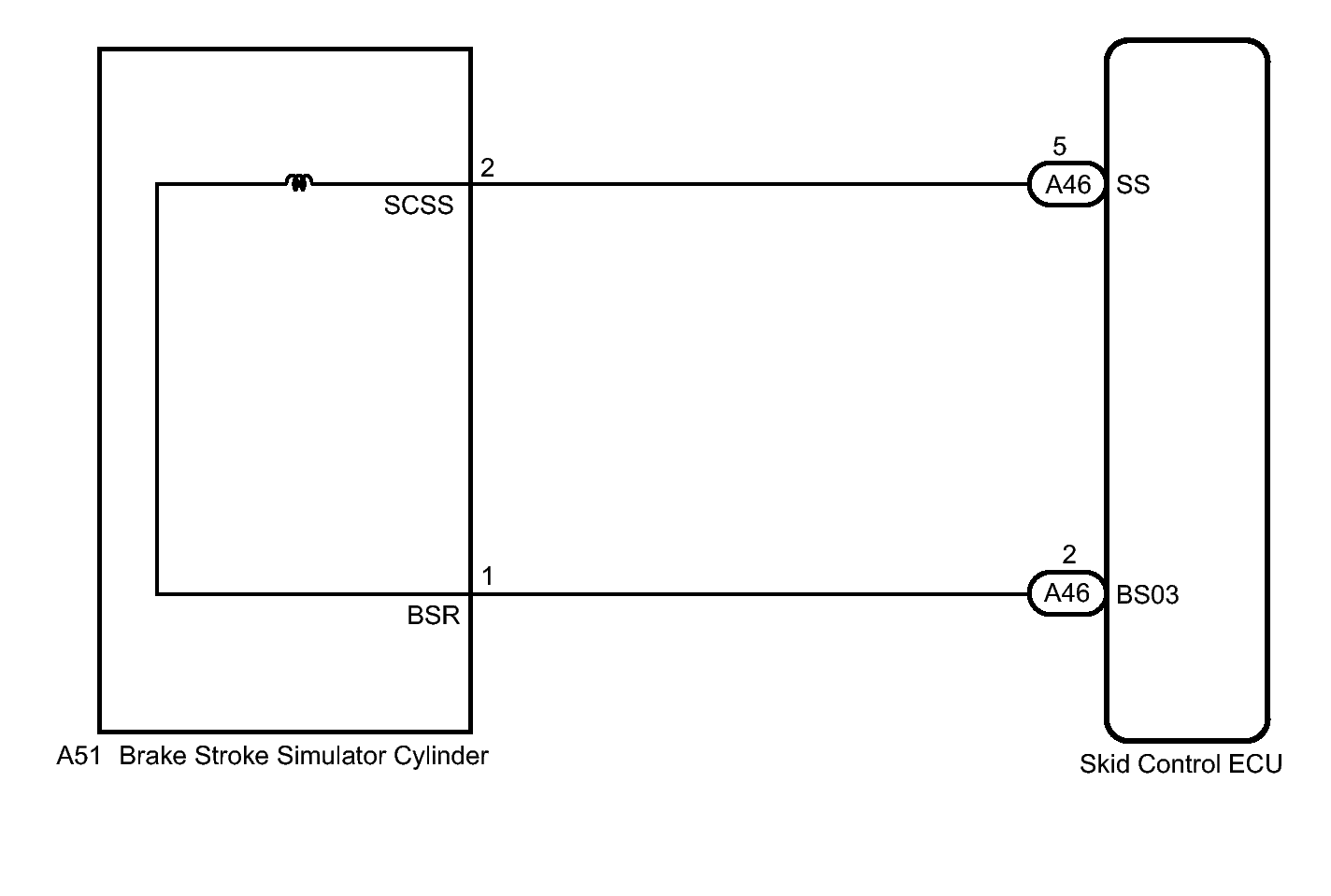

Fig 1: Identifying SCSS Changeover Solenoid Valve Circuit-Wiring Diagram

GTY299345

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
