DTC C1231/31: Steering Angle Sensor Circuit Malfunction: Wiring Diagram

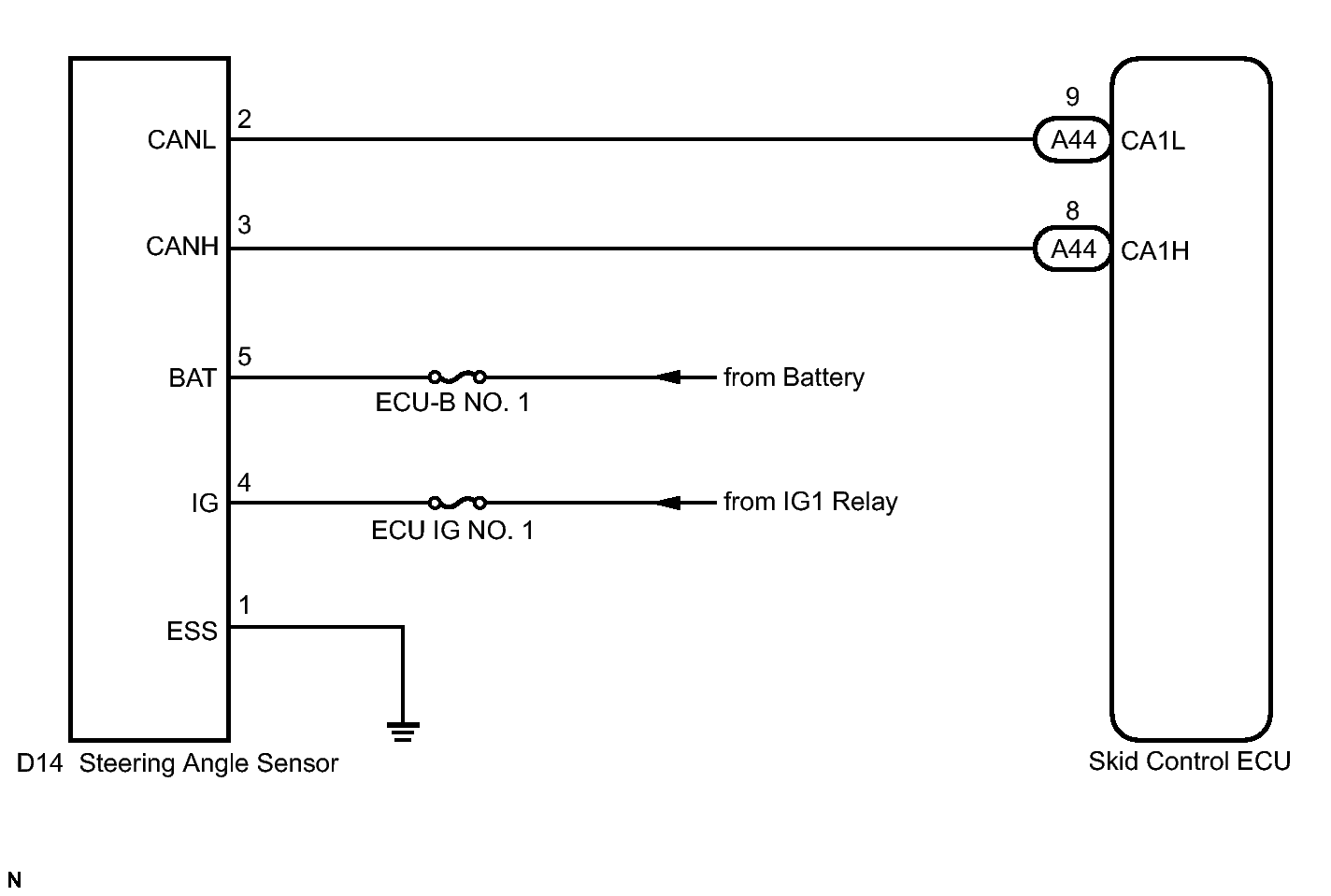

Fig 1: Identifying Steering Angle Sensor Wiring Diagram

GTY302981

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
