Power Back Door System (Diagnostic Codes & Symptom Tests) (Hybrid)
>>
Power Back Door System
>>
Touch Sensor Circuit
>>
Wiring Diagram

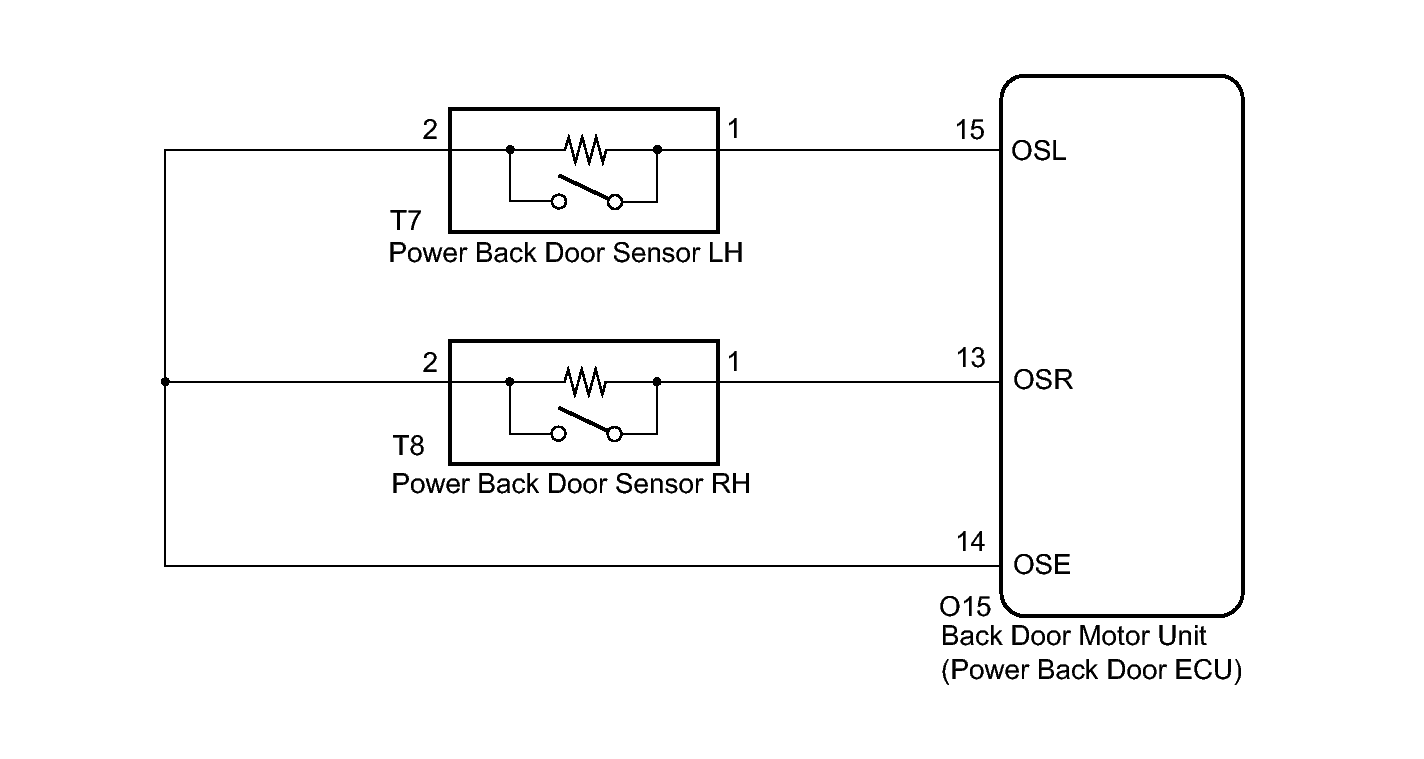

Touch Sensor Circuit: Wiring Diagram
Fig 1: Identifying Power Back Door Touch Sensor-Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
