Power Back Door System (Diagnostic Codes & Symptom Tests) (Hybrid)
>>
Power Back Door System
>>
Power Back Door cannot be Operated Using Any Switch
>>
Wiring Diagram
Power Back Door cannot be Operated Using Any Switch: Wiring Diagram

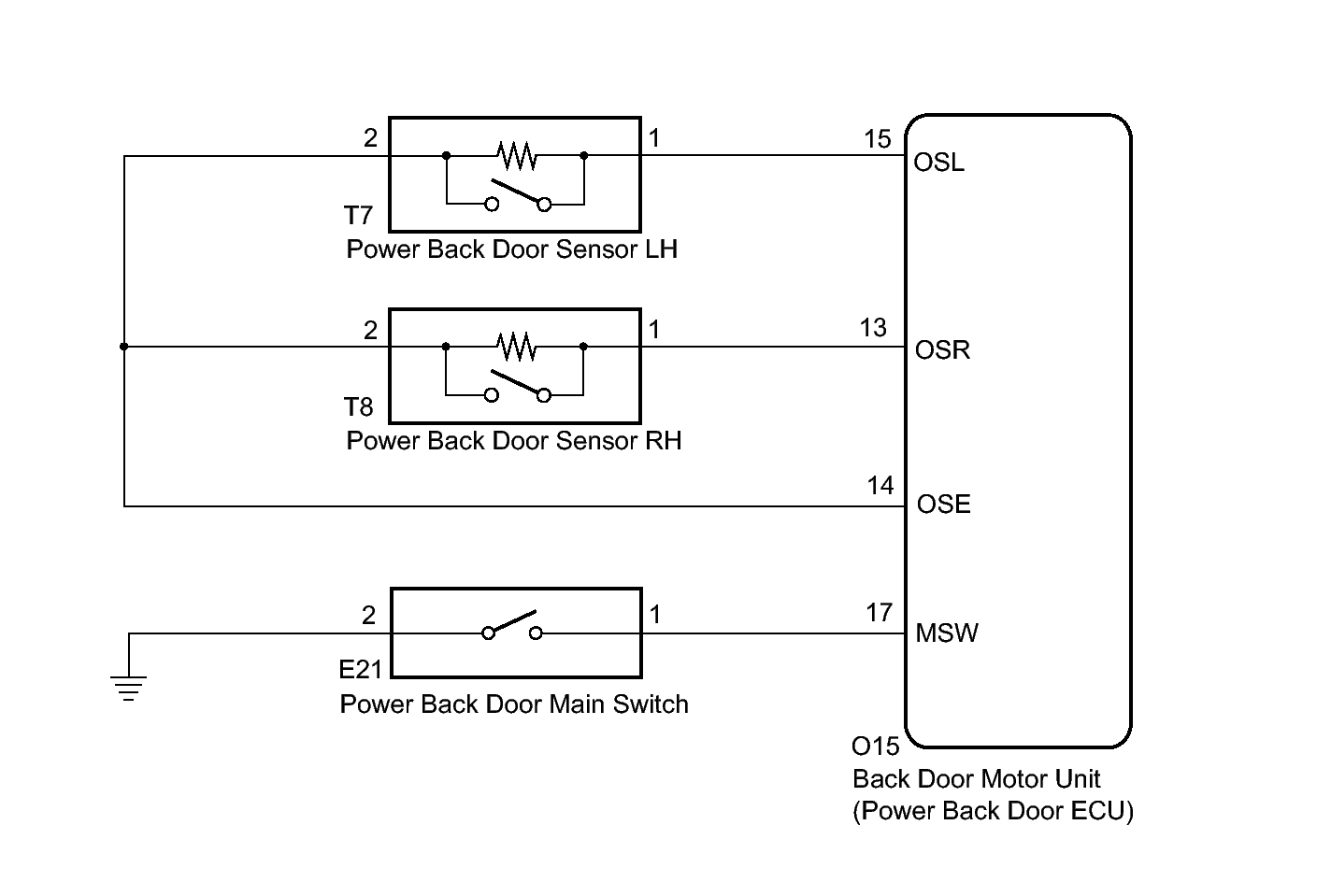

Fig 1: Identifying Power Back Door Main Switch Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
