Power Back Door Warning System does not Operate: Procedure

  1. CHECK OPERATION
    1. Check the power back door system operation.

      Result

      Result Proceed to
      Power back door warning buzzer does not operate. A
      Hazard warning light does not come on. B
      Power back door warning buzzer in the power back door ECU does not operate. C

    B → See step   5

    C → See step   8

    A: Go to next step

  2. PERFORM ACTIVE TEST ON TECHSTREAM
    1. Select the Active Test, use the Techstream to generate a control command, and check that the power back door buzzer sounds.
      BACK DOOR (POWER BACK DOOR ECU)

      Tester Display Test Part Control Range Diagnostic Note
      PBD Buzzer Power back door buzzer sound ON / OFF -

      OK

      Buzzer sounds normally.

    NG → See step   3

    OK → See step   10

  3. INSPECT POWER BACK DOOR WARNING BUZZER
    1. Remove the power back door warning buzzer, refer to REMOVAL
      Fig 1: Identifying Power Back Door Warning Buzzer Connector Terminals
      GTY168125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      1 - 2 Always 950 to 1050 Ω

    NG → See step   9

    OK: Go to next step

  4. CHECK HARNESS AND CONNECTOR (POWER BACK DOOR WARNING BUZZER - POWER BACK DOOR ECU)
    1. Disconnect the T9 buzzer connector.

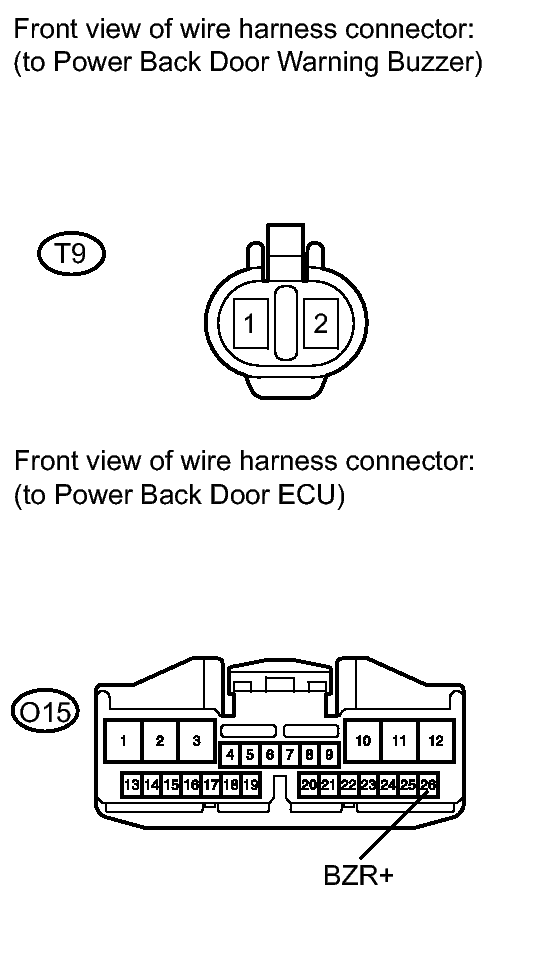

      Fig 2: Identifying Power Back Door Warning Buzzer And Power Back Door ECU Connector Terminals
      GTY198151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the O15 ECU connector.
    3. Disconnect the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      T9-1 - O15-26 (BZR+) Always Below 1 Ω
      T9-2 - Body ground Always Below 1 Ω
      T9-1 - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   10

  5. CHECK WIRELESS DOOR LOCK CONTROL SYSTEM (HAZARD ANSWER - BACK FUNCTION)
    1. Check the wireless door lock operation.

      Result

      Result Proceed to
      OK A
      NG (w/ Smart key System) B
      NG (w/o Smart key System) C

      OK

      Hazard answer-back function operates normally.

    B → See step   11

    C → See step   12

    A: Go to next step

  6. REPLACE BACK DOOR MOTOR UNIT (POWER BACK DOOR ECU)
    1. Replace the back door motor unit (power back door ECU), refer to REMOVAL .

    NEXT: Go to next step

  7. CHECK BACK DOOR MOTOR UNIT (POWER BACK DOOR ECU)
    1. Check that the power back door warning buzzer operates normally.

      OK

      It operates normally.

    NG → REPLACE MAIN BODY ECU (INSTRUMENT PANEL JUNCTION BLOCK)

    OK → END (REPLACE BACK DOOR MOTOR UNIT (POWER BACK DOOR ECU) DEFECTIVE)

  8. REPLACE BACK DOOR MOTOR UNIT (POWER BACK DOOR ECU). Refer to  REMOVAL
  9. REPLACE POWER BACK DOOR WARNING BUZZER. Refer to  REMOVAL
  10. REPLACE BACK DOOR MOTOR UNIT (POWER BACK DOOR ECU). Refer to  REMOVAL
  11. GO TO OTHER FLOW CHART. Refer to  No Answer-Back
  12. GO TO OTHER FLOW CHART. Refer to  No Answer-Back
