Back Door cannot be Opened: Wiring Diagram

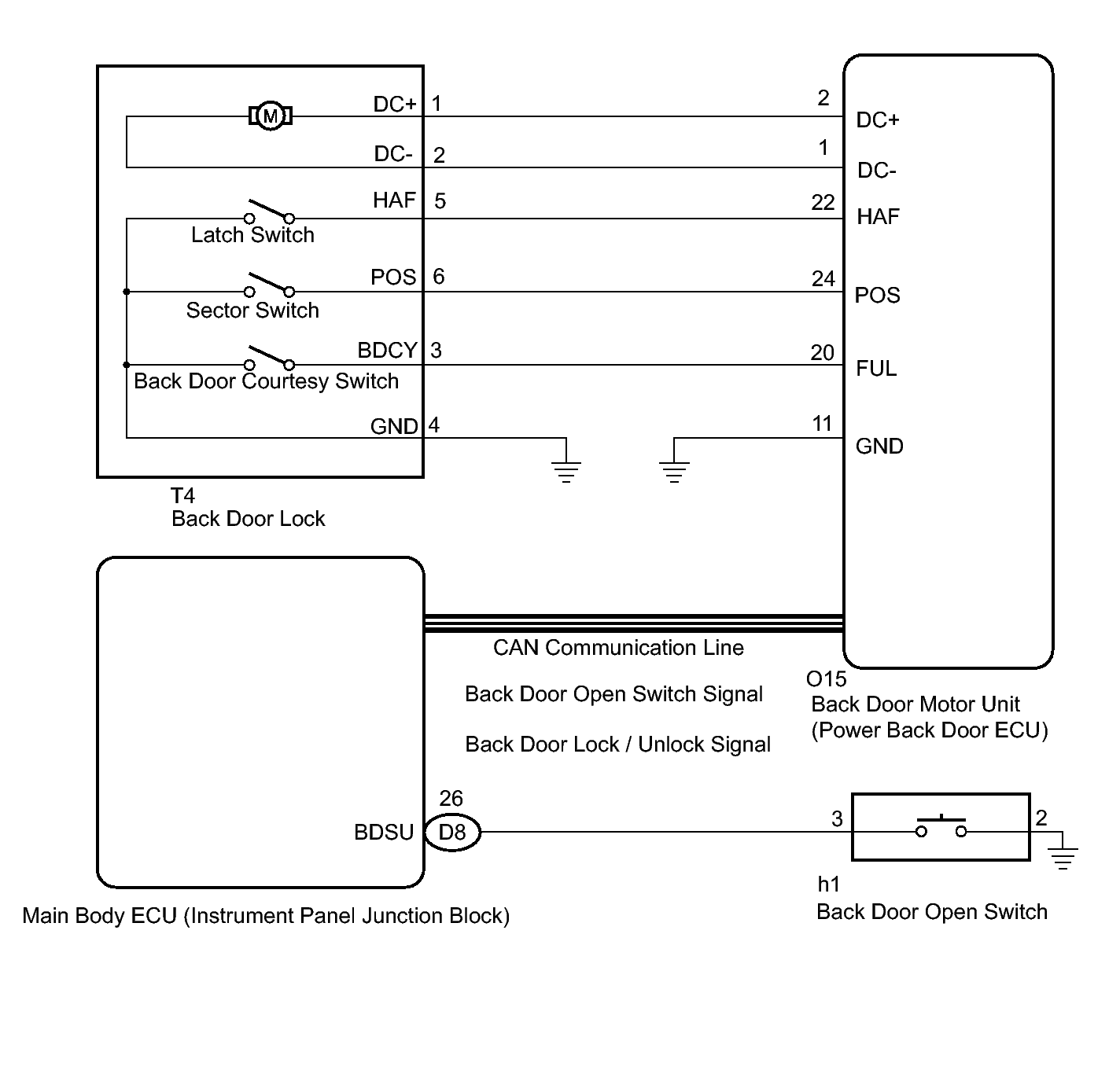

Fig 1: Identifying Back Door-Wiring Diagram

GTY303927

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
