Back Door Closer does not Operate: Wiring Diagram

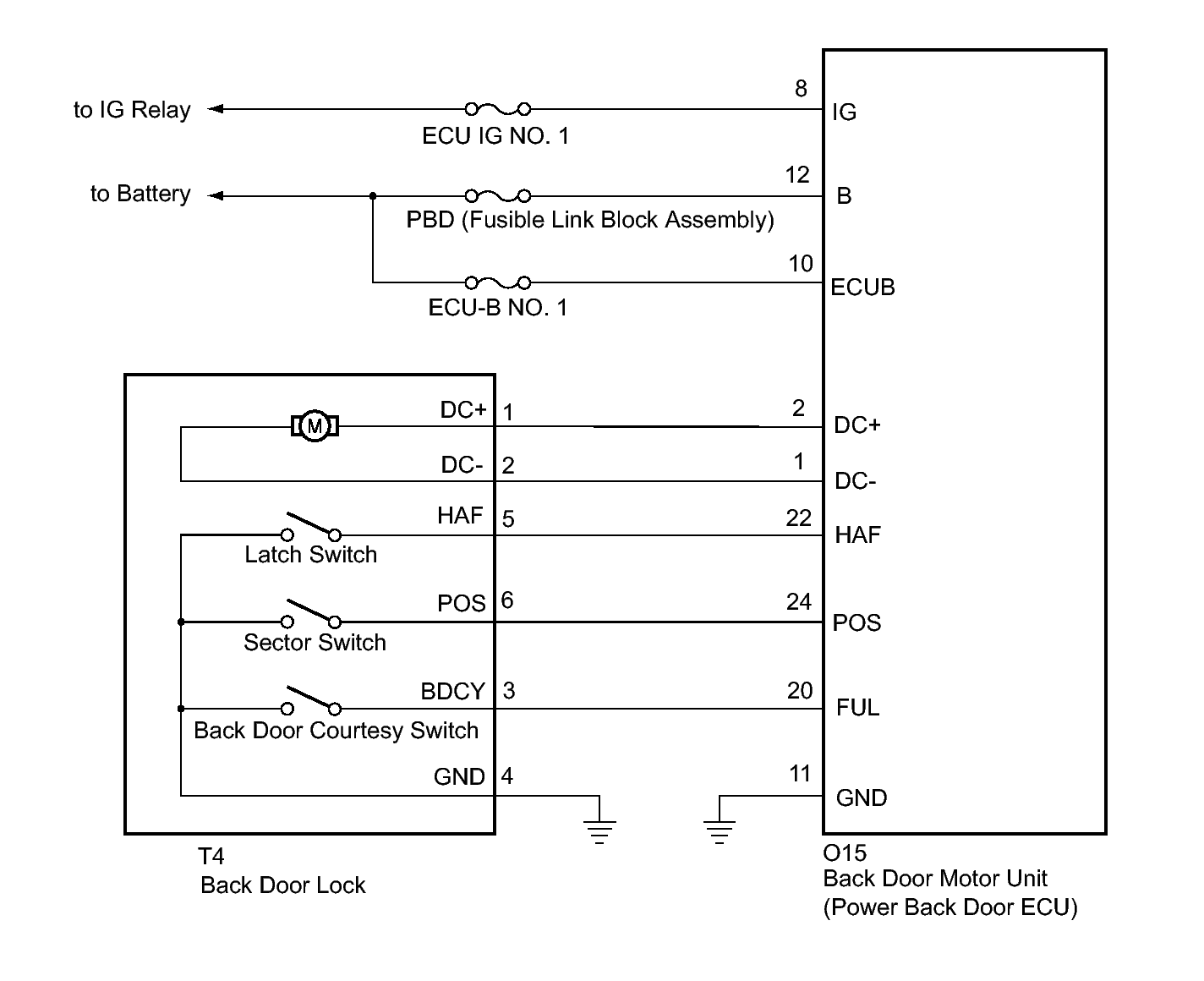

Fig 1: Identifying Power Back Door Drive Unit-Wiring Diagram

GTY298413

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
