Hood Lock Control Cable Assembly: Removal: Removal

REMOVE FRONT FENDER MOULDING SUB-ASSEMBLY LH . Refer to REMOVAL - Step 1
REMOVE FRONT FENDER LINER LH . Refer to REMOVAL - Step 5
REMOVE COOL AIR INTAKE DUCT SEAL . Refer to REMOVAL - Step 1
REMOVE RADIATOR GRILLE SUB-ASSEMBLY . Refer to REMOVAL - Step 2

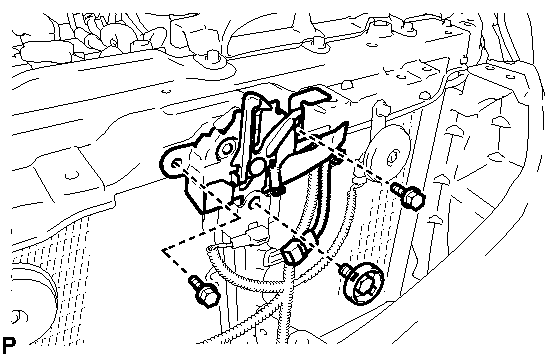

REMOVE HOOD LOCK ASSEMBLY (w/o Engine Hood Courtesy Switch)
1. Remove the hood lock nut cap.

  Fig 1: Identifying Hood Lock Nut Cap
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 3 bolts.

  Fig 2: Identifying Hood Lock Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the hood lock control cable and remove the hood lock assembly.

  Fig 3: Identifying Hood Lock Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HOOD LOCK ASSEMBLY (w/ Engine Hood Courtesy Switch)
1. Disconnect the connector.

  Fig 4: Locating Hood Lock Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the hood lock nut cap.

  Fig 5: Identifying Hood Lock Nut Cap
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 3 bolts.

  Fig 6: Identifying Hood Lock Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disconnect the hood lock control cable and remove the hood lock assembly.

  Fig 7: Identifying Hood Lock Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE HOOD LOCK CONTROL CABLE ASSEMBLY

Disconnect the hood lock control cable from the hood lock control lever.

Fig 8: Identifying Hood Lock Control Cable And Hood Lock Control Lever
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

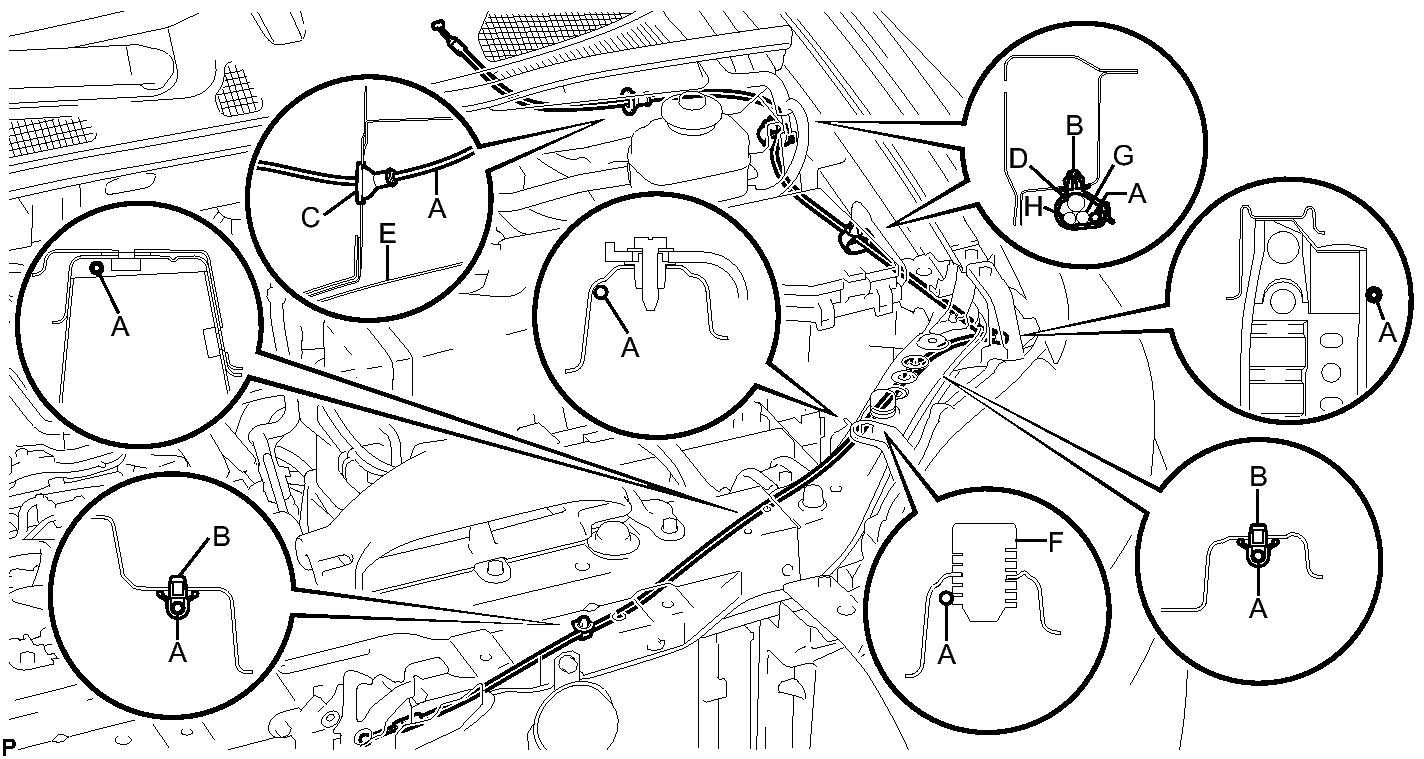

Using a screwdriver, disconnect the clamps shown in the illustration.

Fig 9: Identifying Hood Lock Control Cable, Clamp, Hood Cable Grommet, Wire Harness, Fender Line And Hood Support Rubber

GTY199401

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Area	Part Name	Area	Part Name
A	Hood lock control cable	E	Fender liner
B	Clamp	F	Hood stopper rubber
C	Hood cable grommet	G	Front washer hose
D	Wire harness	H	Rear washer hose

HINT:

Tape the screwdriver tip before use.

Pull the cable from the engine compartment and remove it.
