Hood Lock Control Cable Assembly: Components: Illustration

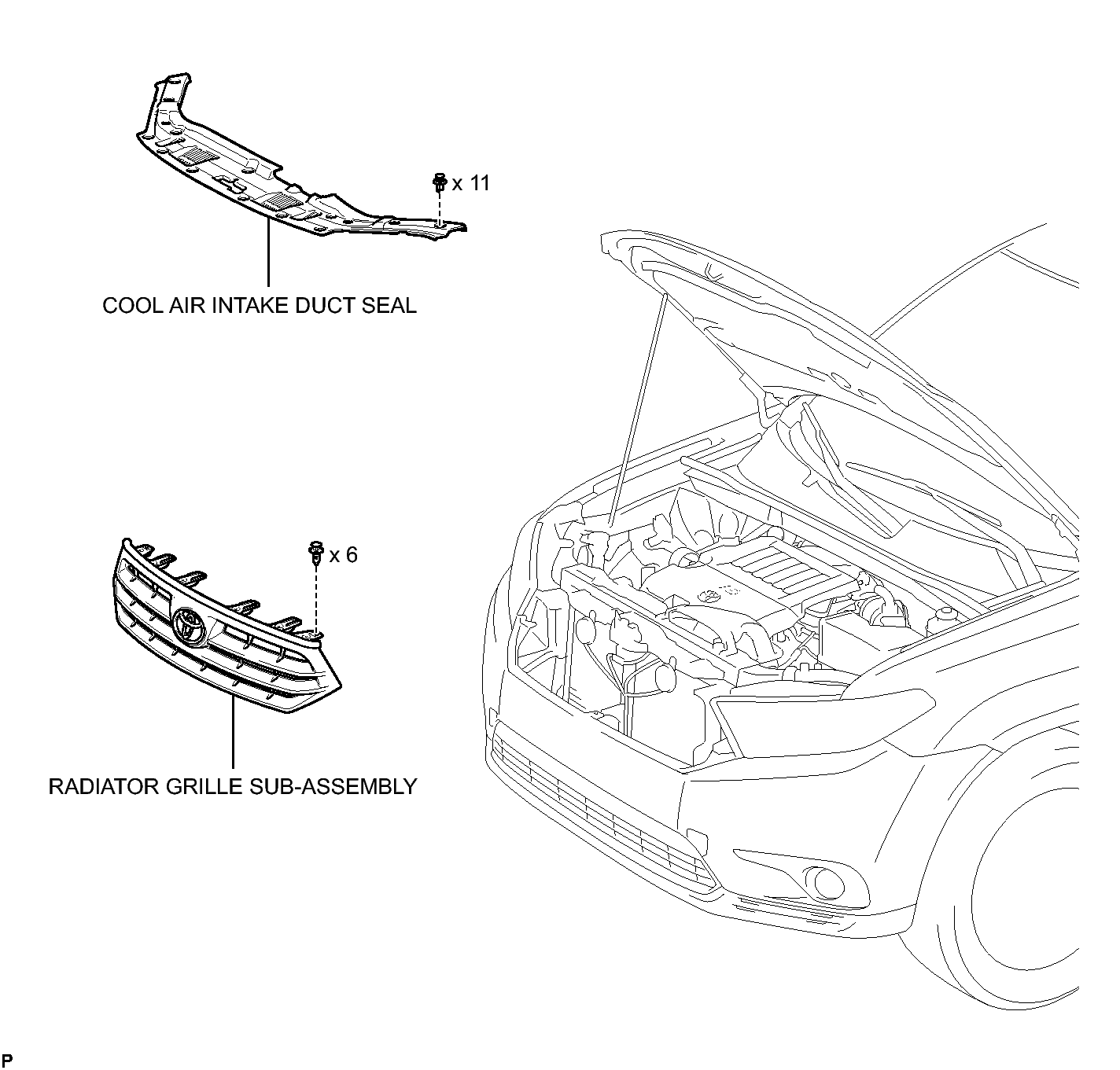

Fig 1: Identifying Hood Lock Control Cable Assembly Replacement Components (1 Of 2)
GTY298298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

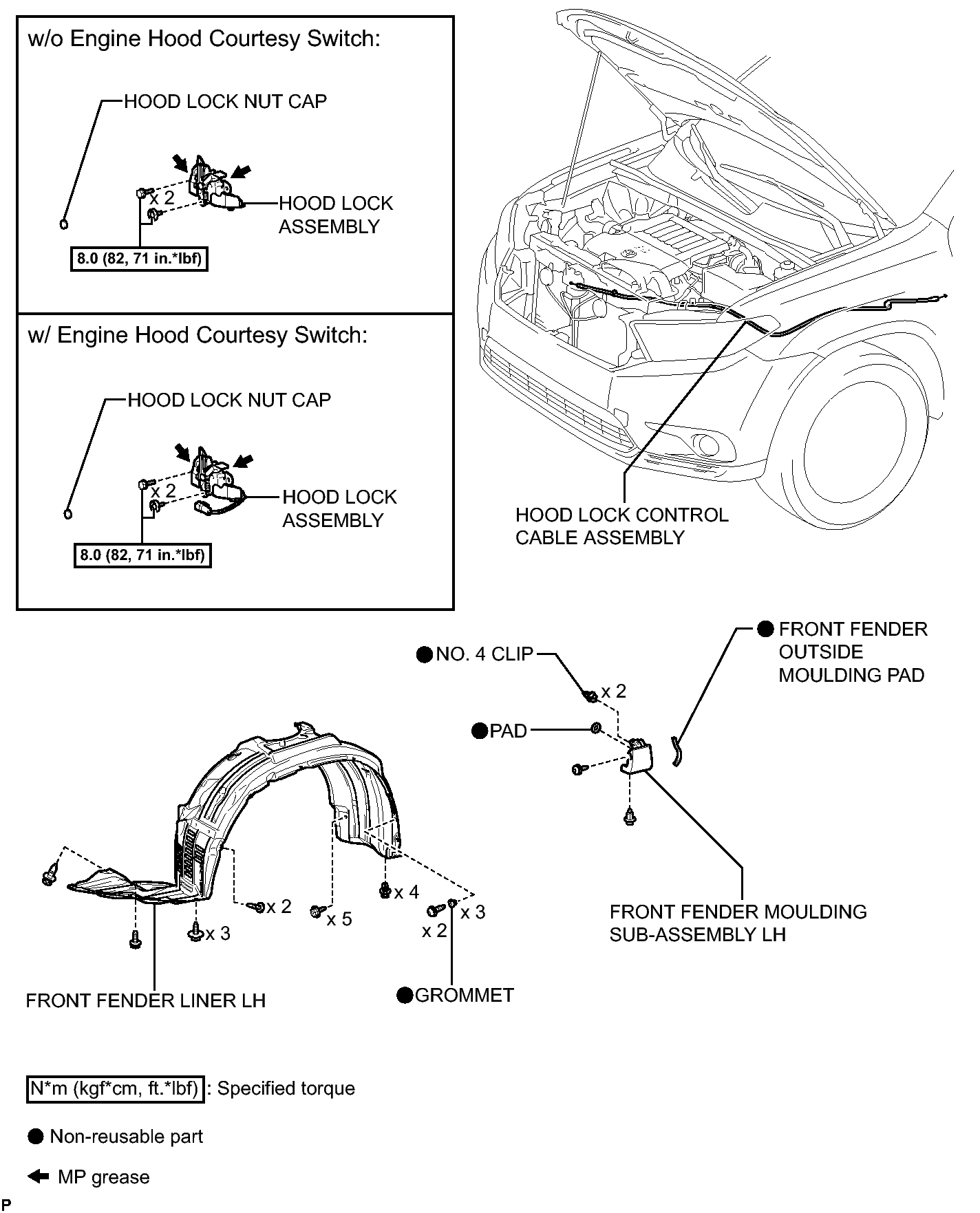

Fig 1: Identifying Hood Lock Control Cable Assembly Replacement Components With Torque Specifications (2 Of 2)
GTY300886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
