Front Door: Components: Illustration

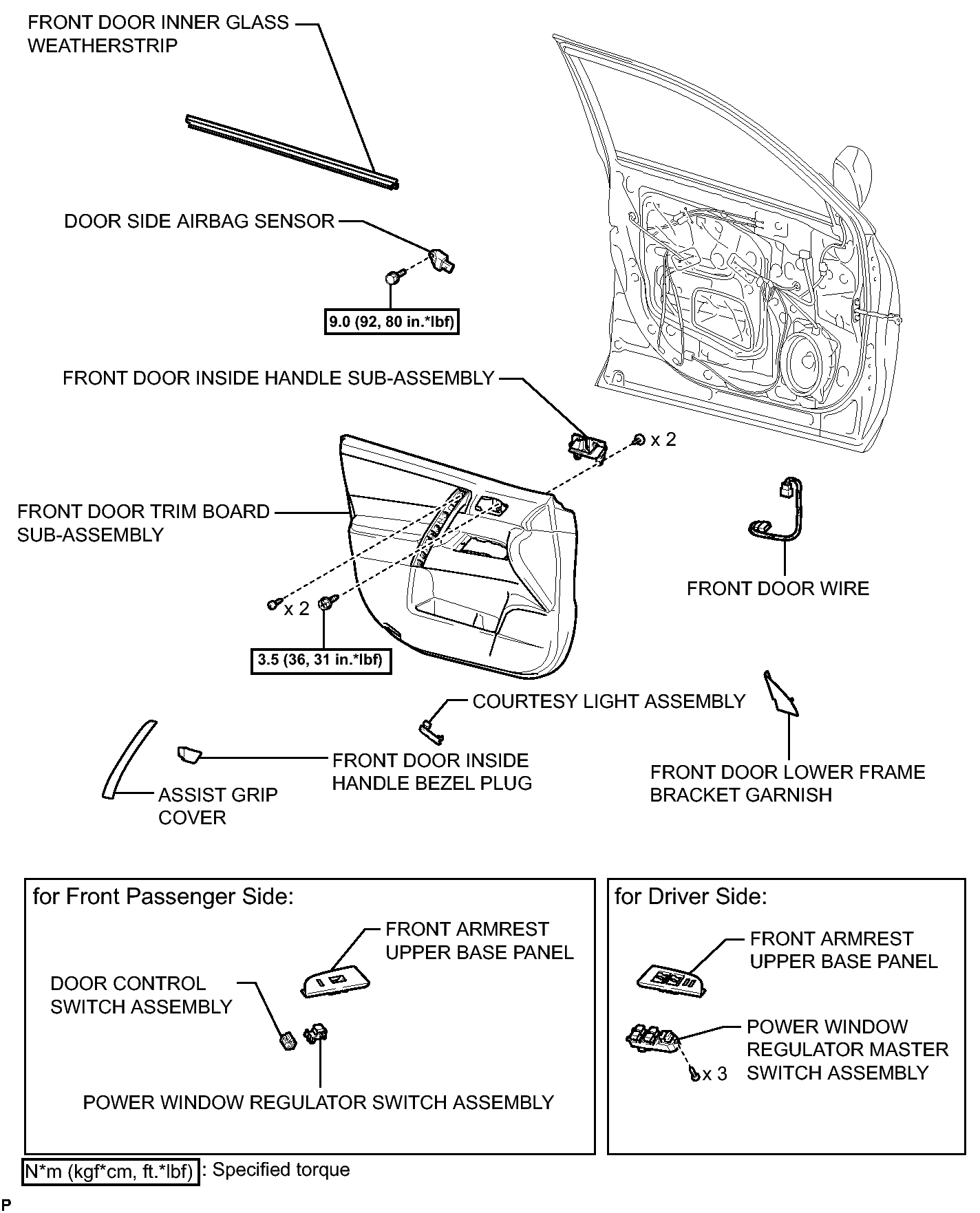

Fig 1: Identifying Front Door Replacement Components With Torque Specifications (1 Of 4)
GTY306632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

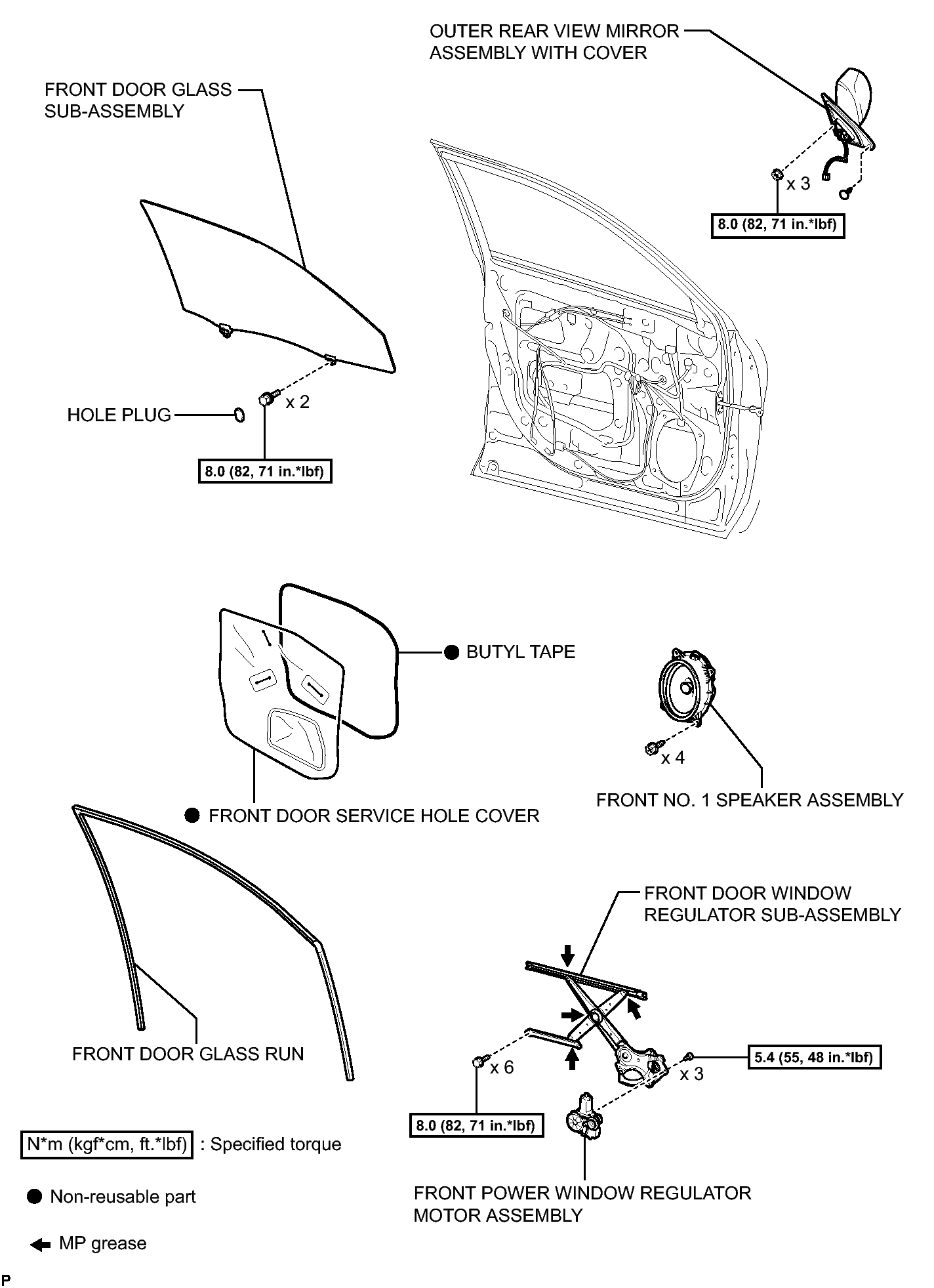

Fig 1: Identifying Front Door Replacement Components With Torque Specifications (2 Of 4)
GTY199121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

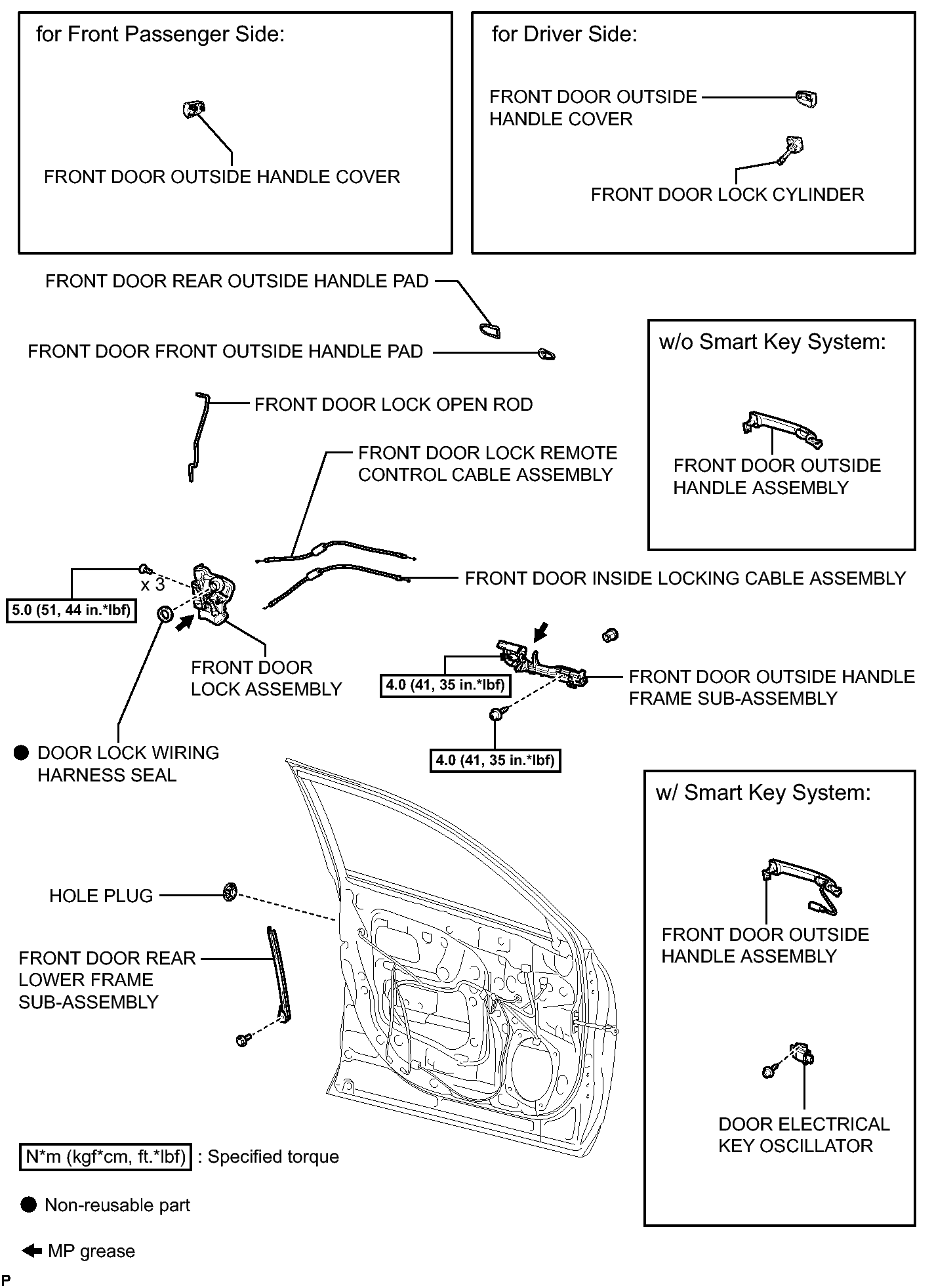

Fig 1: Identifying Front Door Replacement Components With Torque Specifications (3 Of 4)
GTY199122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

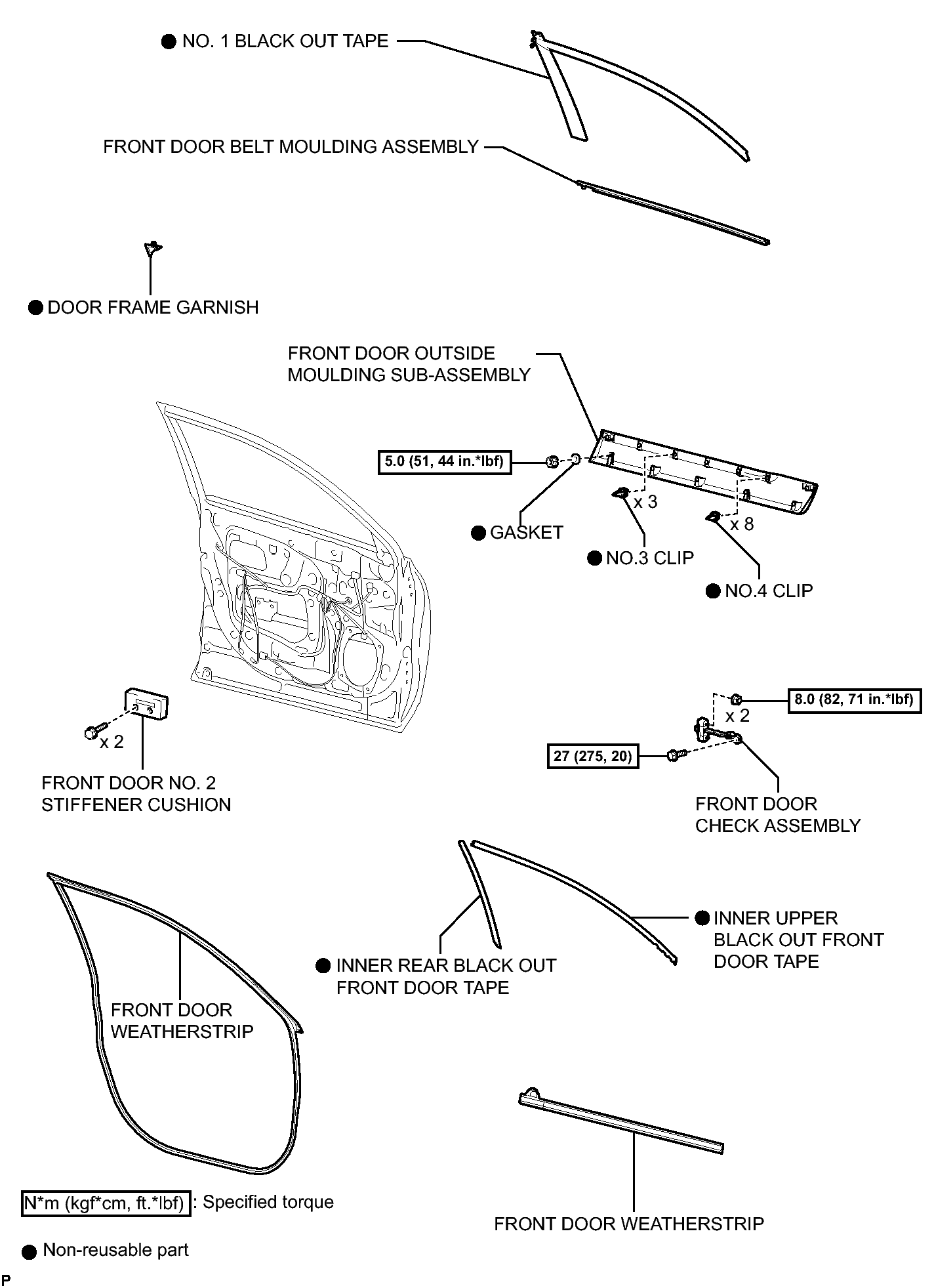

Fig 1: Identifying Front Door Replacement Components With Torque Specifications (4 Of 4)
GTY295673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
