Back Door Opener Switch: Inspection: Inspection

  1. INSPECT BACK DOOR OPENER SWITCH ASSEMBLY
    1. Check operation of the opener switch.
      1. Measure the resistance according to the value(s) in the table below.

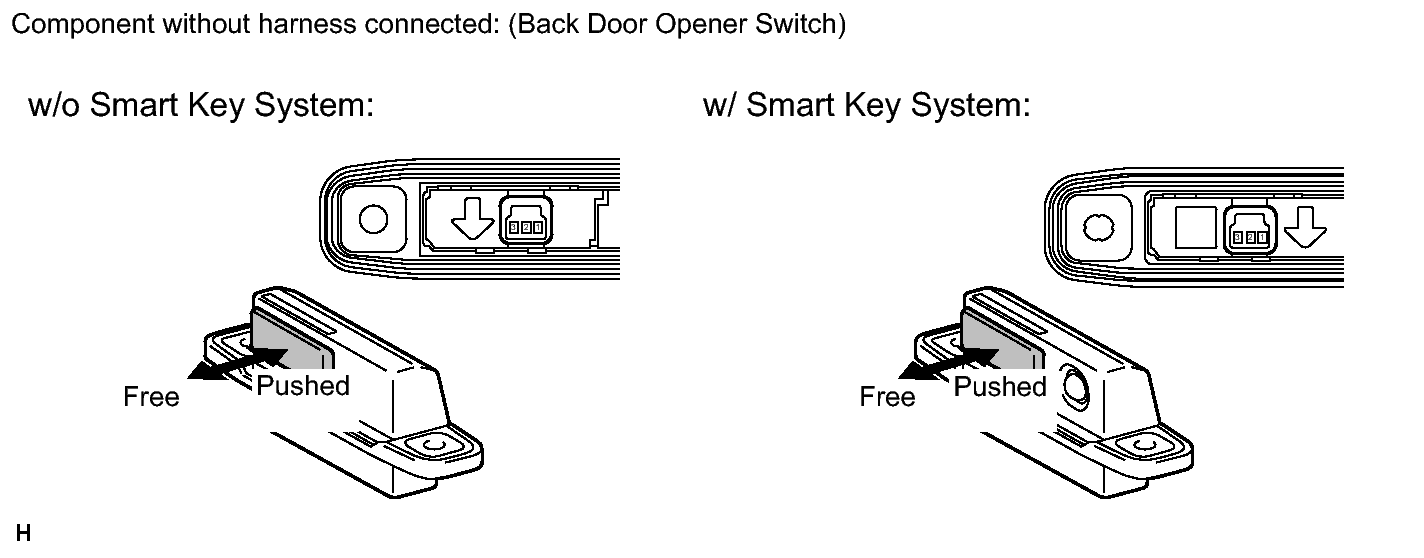

        Fig 1: Inspecting Back Door Opener Switch
        GTY305830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard Resistance

        Tester Connection Switch Position Specified Condition
        2 - 3 Back door opener switch not pushed (Off) 10 kΩ or higher
        2 - 3 Back door opener switch pushed (On) Below 1 Ω

        If the result is not specified, replace the back door opener switch assembly.

    2. Check operation of the lock switch (w/ Smart Key System).
      1. Measure the resistance according to the value(s) in the table below.
        Fig 2: Identifying Back Door Opener Switch
        GTY198972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard Resistance

        Tester Connection Switch Position Specified Condition
        1 - 2 Back door lock switch not pushed (Off) 10 kΩ or higher
        1 - 2 Back door lock switch pushed (On) Below 1 Ω

        If the result is not specified, replace the back door opener switch assembly.
