Television Camera: Components: Illustration

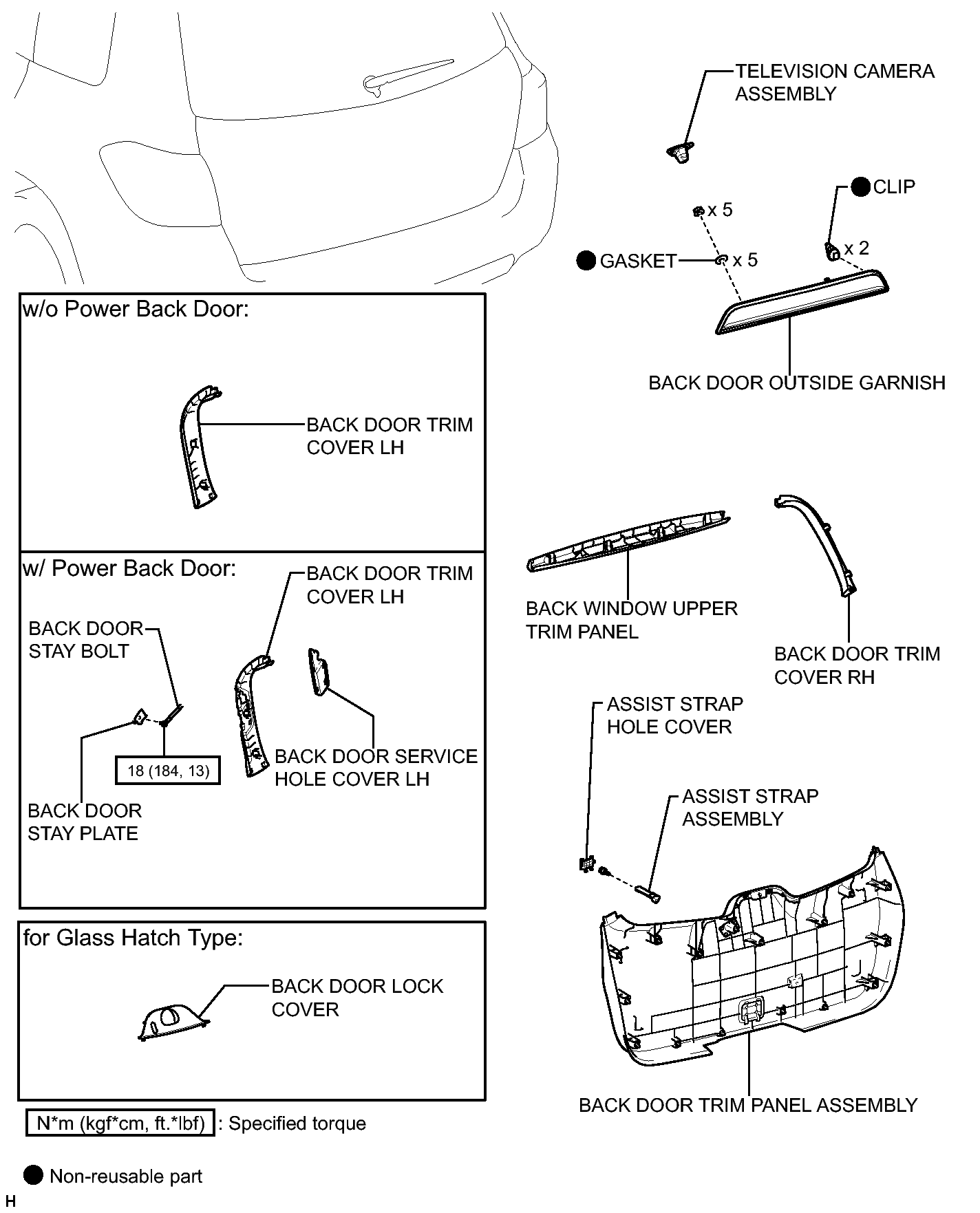

Fig 1: Identifying Television Camera Replacement Components With Torque Specifications

GTY307548

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
