SEAT HEATER CONTROL (for Power Seat): Removal: Removal

  1. REMOVE DECK BOARD ASSEMBLY  . Refer to REMOVAL - Step 1
  2. REMOVE BATTERY SERVICE HOLE COVER ASSEMBLY  . Refer to REMOVAL - Step 2
  3. REMOVE FRONT SEAT HEADREST ASSEMBLY  See step  3
  4. REMOVE FRONT OUTER SEAT TRACK COVER  See step  4
  5. REMOVE FRONT INNER SEAT TRACK COVER  See step  5
  6. REMOVE REAR OUTER SEAT TRACK COVER  See step  6
  7. REMOVE REAR INNER SEAT TRACK COVER  See step  7
  8. REMOVE FRONT SEAT ASSEMBLY  See step  8
  9. REMOVE SEAT HEATER CONTROL SUB-ASSEMBLY
    1. Disconnect the 2 connectors.

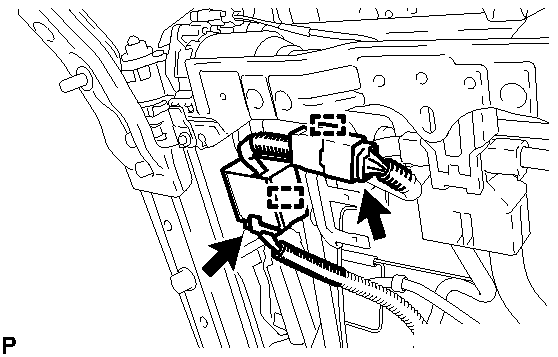

      Fig 1: Locating Seat Heater Control Sub-Assembly Connector And Clamps
      GTY199463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clamps and remove the seat heater control sub-assembly.
