Rear No. 2 Seat Assembly: Installation: Installation

INSTALL REAR NO. 2 SEAT ASSEMBLY

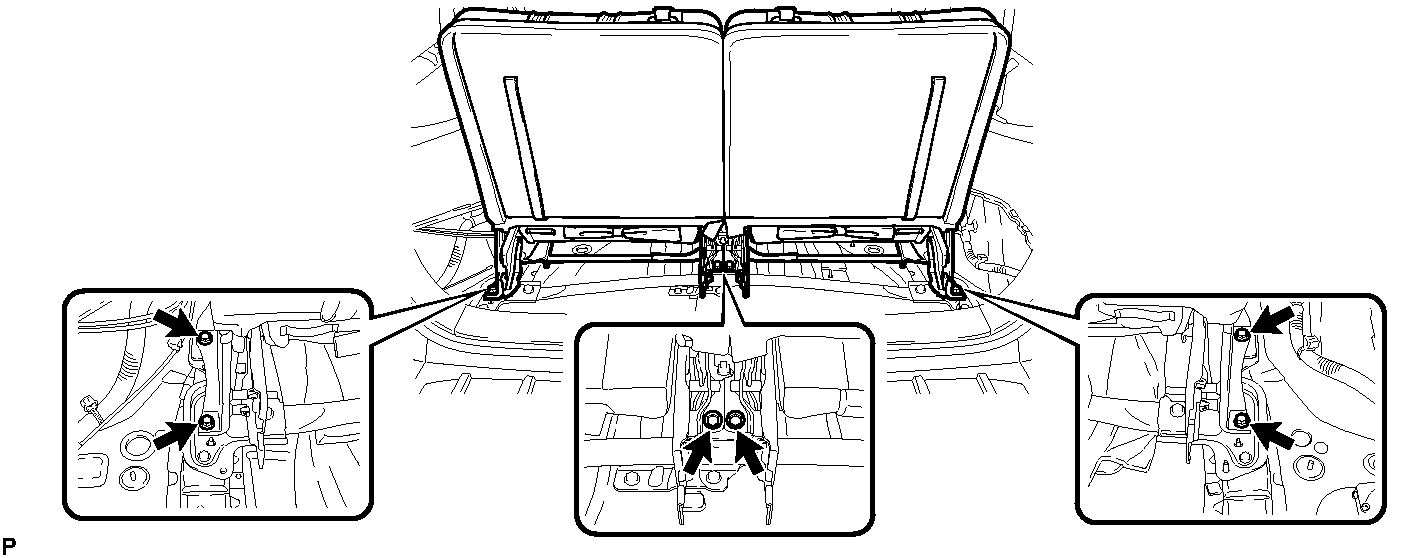

1. Install the 6 bolts on the rear of the seat.

  Fig 1: Identifying Rear No. 2 Seat Assembly & Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)

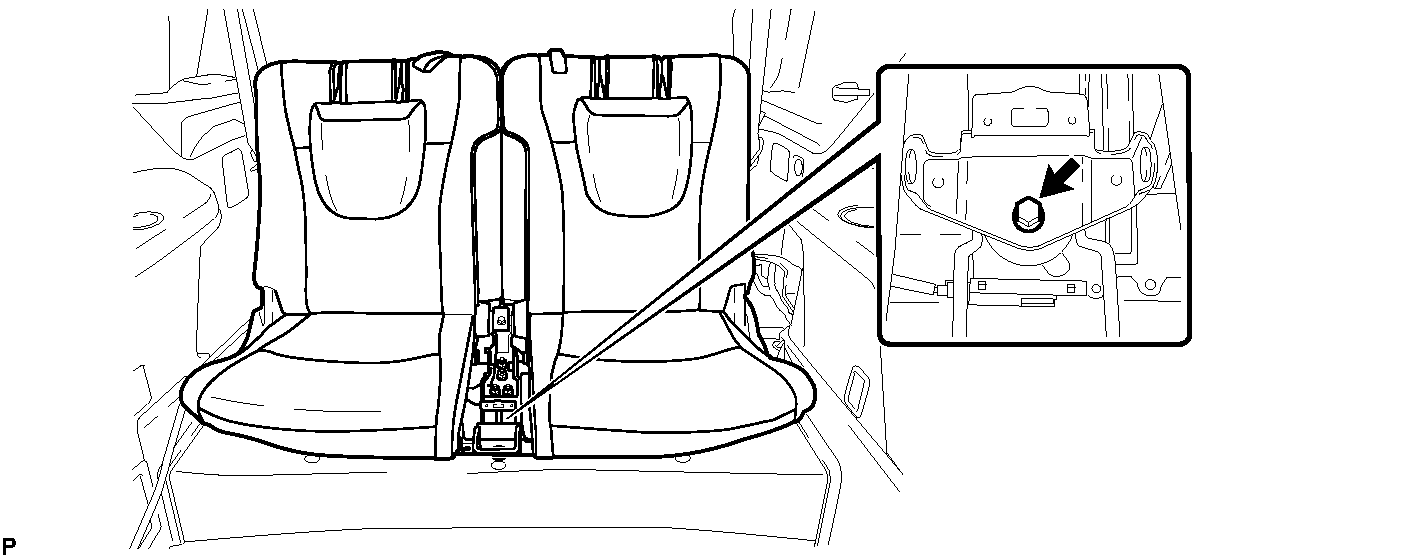

2. Install the rear No. 2 seat assembly with the bolt.

  Fig 2: Identifying Rear No. 2 Seat Assembly & Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)
INSTALL CENTER SEAT CUSHION COVER SUB-ASSEMBLY
1. Engage the 2 claws <B>.

  Fig 3: Identifying Center Seat Cushion Cover Sub-Assembly & Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 2 claws <A> to install the center seat cushion cover sub-assembly.
CONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY RH . Refer to INSTALLATION - Step 29
CONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH . Refer to INSTALLATION - Step 28
INSTALL REAR DECK FLOOR BOX . Refer to INSTALLATION - Step 72
INSTALL REAR MAT . Refer to INSTALLATION - Step 73
INSTALL DECK SIDE TRIM BOX RH . Refer to INSTALLATION - Step 74
INSTALL JACK CARRIER ASSEMBLY . Refer to INSTALLATION - Step 75
INSTALL JACK ASSEMBLY . Refer to INSTALLATION - Step 76
INSTALL JACK CARRIER CUSHION . Refer to INSTALLATION - Step 77
INSTALL JACK CARRIER SUPPORT . Refer to INSTALLATION - Step 78
INSTALL NO. 1 DECK BOARD . Refer to INSTALLATION - Step 79
INSTALL NO. 2 DECK BOARD . Refer to INSTALLATION - Step 80
INSTALL NO. 2 DECK BOARD SUB-ASSEMBLY . Refer to INSTALLATION - Step 80
INSTALL BATTERY SERVICE HOLE COVER ASSEMBLY . Refer to INSTALLATION - Step 119
INSTALL DECK BOARD ASSEMBLY . Refer to INSTALLATION - Step 120
