REAR NO. 1 SEAT ASSEMBLY (for RH Side): Removal: Removal

REMOVE REAR SEAT HEADREST ASSEMBLY
1. Press the headrest support button and pull up the headrest to its highest position as shown in the illustration.

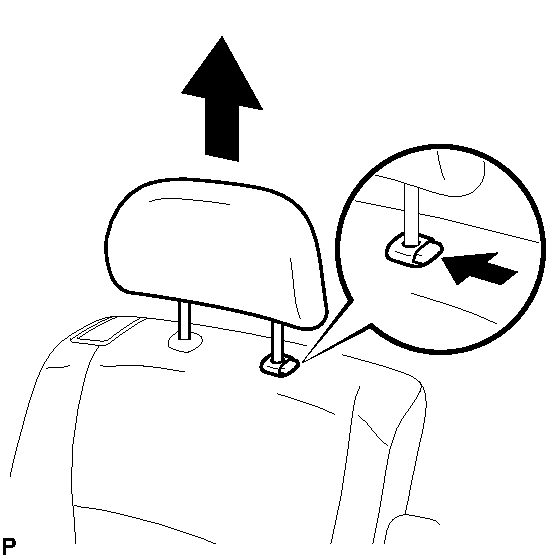

  Fig 1: Locating Up Headrest To Highest Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Insert a finger or screwdriver into the hole to release the lock. Pull the headrest up as shown in the illustration to remove it.

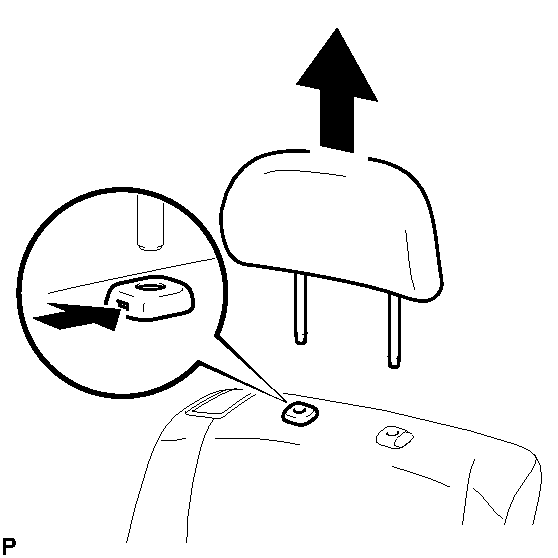

  Fig 2: Locating Headrest
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SEAT TRACK BRACKET COVER
1. Disengage the 8 claws and remove the 2 rear seat track bracket covers.

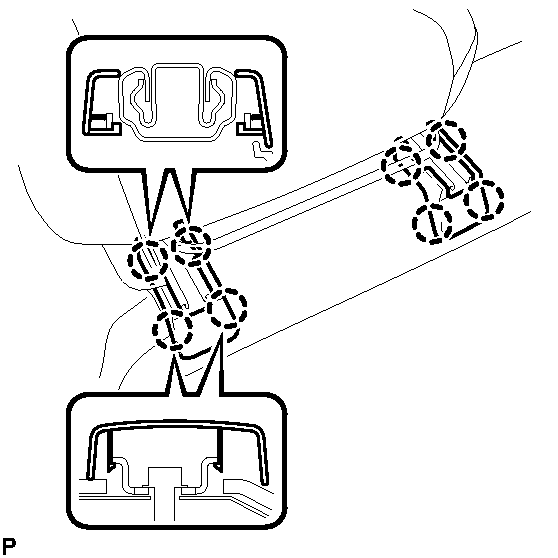

  Fig 3: Identifying Rear Seat Track Bracket Covers And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR OUTER TRACK BRACKET COVER
1. Disengage the 5 claws and remove the rear outer track bracket cover.

  Fig 4: Identifying Rear Outer Track Bracket Cover And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR INNER TRACK BRACKET COVER
1. Disengage the 4 claws and remove the rear inner track bracket cover.

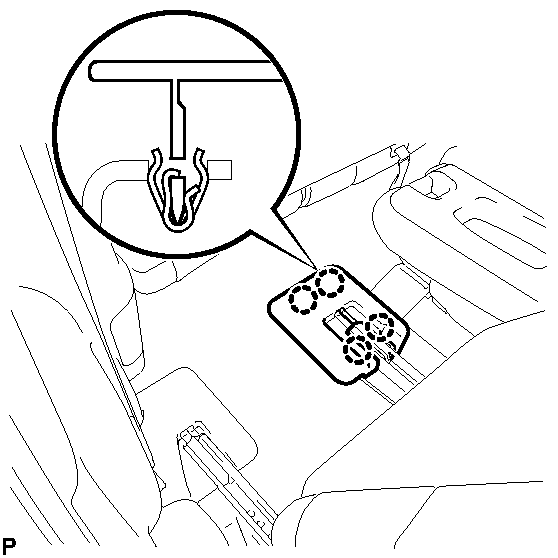

  Fig 5: Identifying Rear Inner Track Bracket Cover And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SEAT LEG SIDE COVER
1. Disengage the 3 claws.

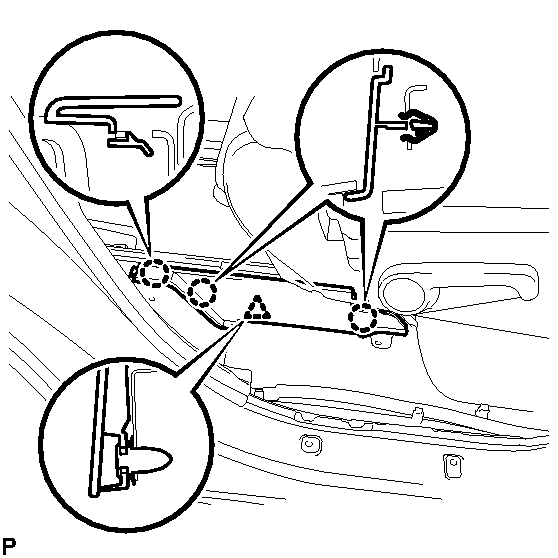

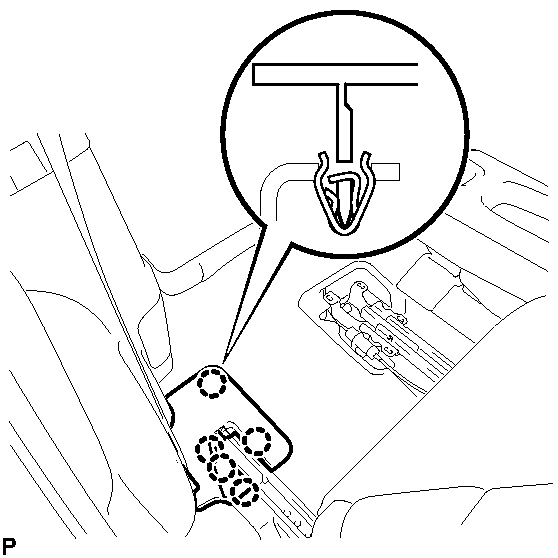

  Fig 6: Identifying Rear Seat Leg Side Cover And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the clip and remove the rear seat leg side cover.
DISCONNECT REAR NO. 1 SEAT LOCK CABLE ASSEMBLY

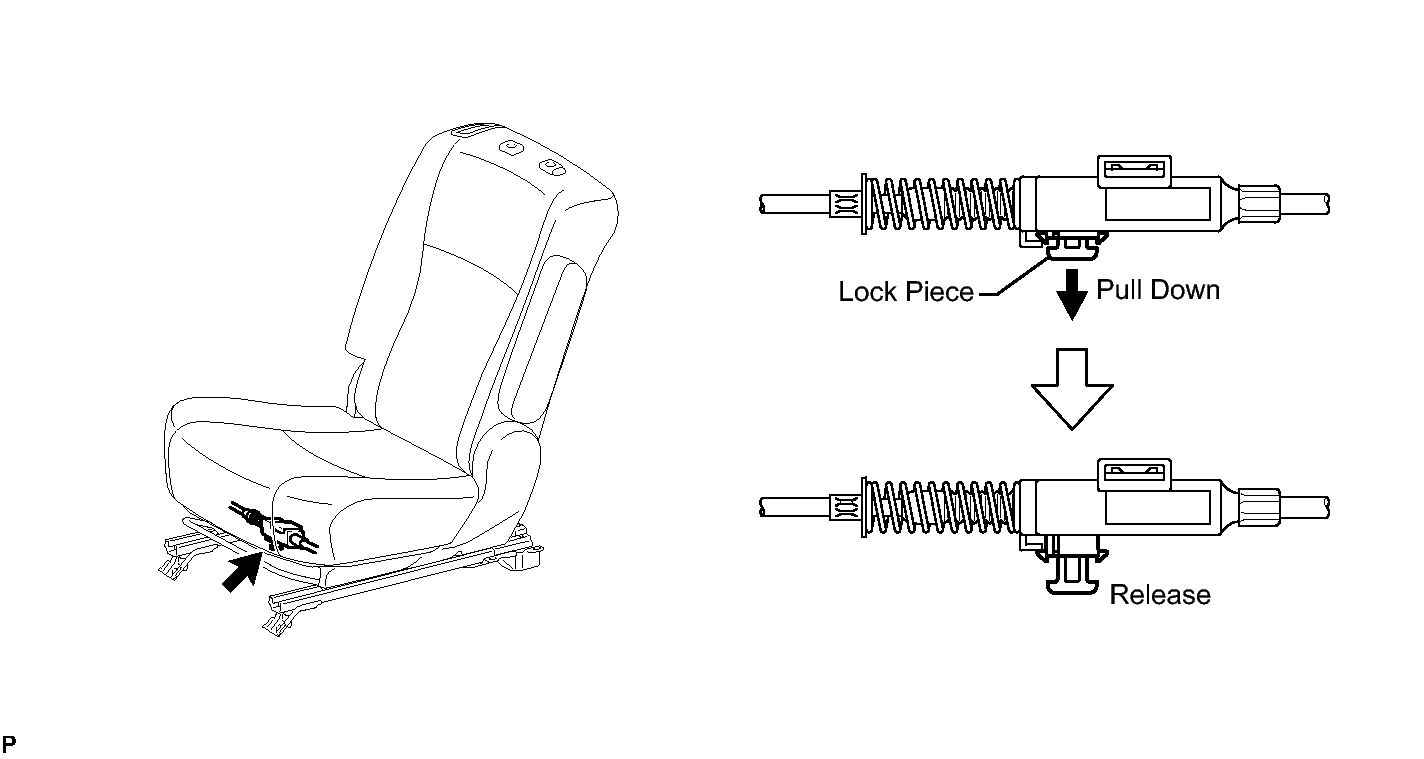

1. Pull down the adjuster's lock piece to release the lock as shown in the illustration.

  Fig 7: Locating Adjuster'S Lock Piece
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver wrapped with protective tape, disengage the 2 claws as shown in the illustration.

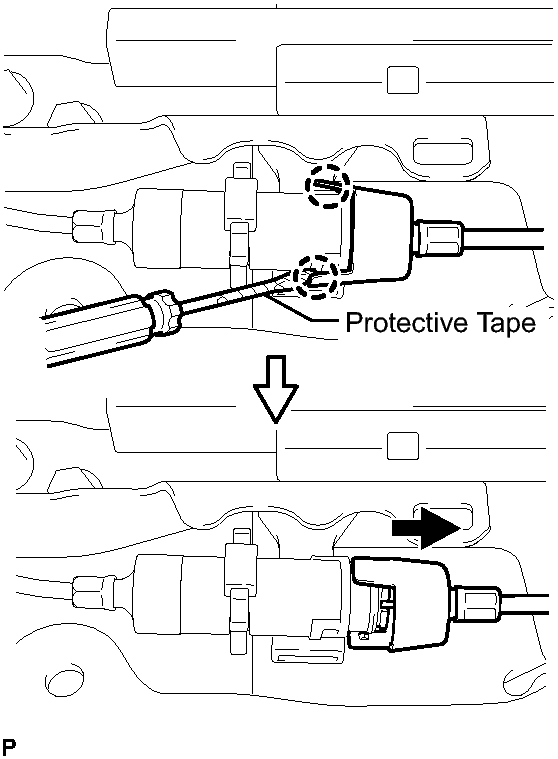

  Fig 8: Disengaging Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Lift up the seat track adjusting handle to the uppermost position and hold the handle in this position as shown in the illustration.

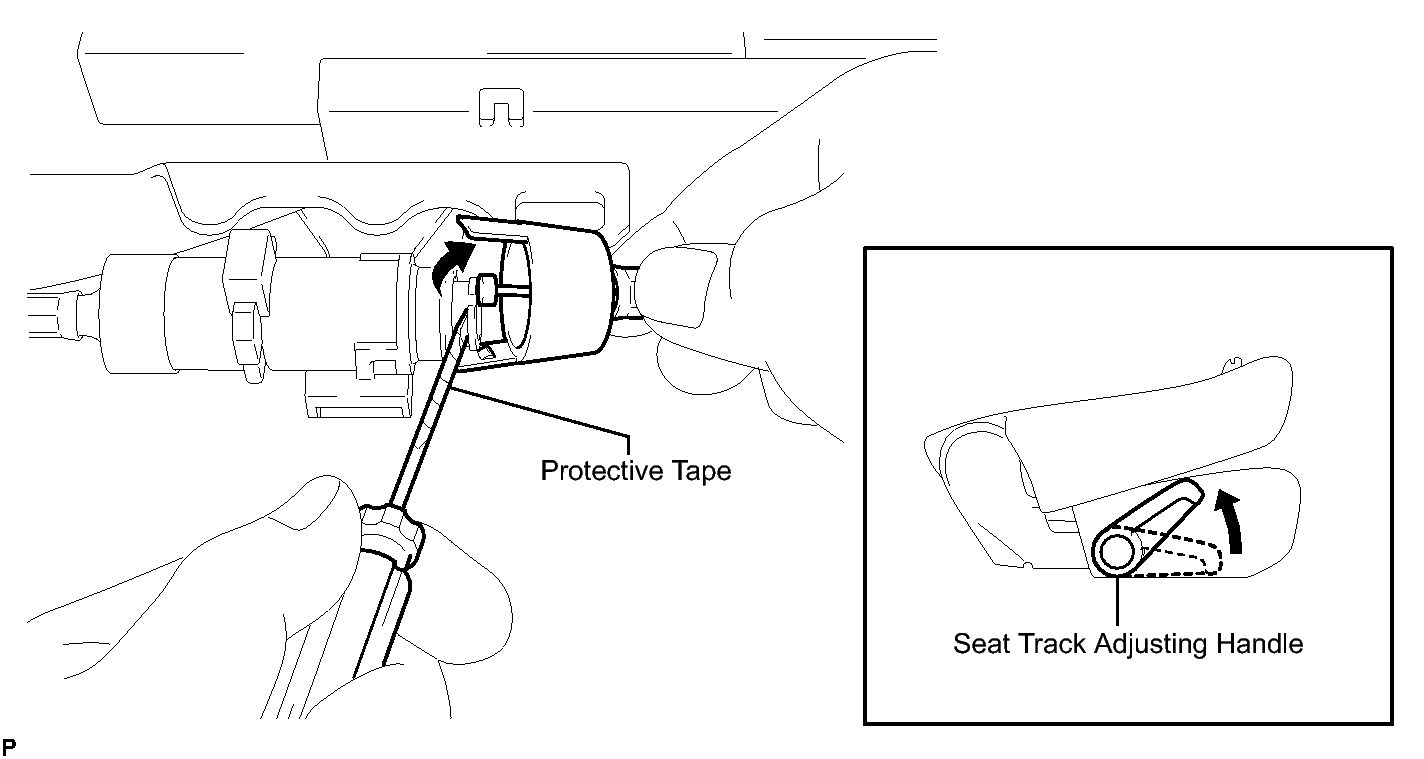

  Fig 9: Lifting Seat Track Adjusting Handle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using a screwdriver wrapped with protective tape, disconnect the rear No. 1 seat lock cable assembly as shown in the illustration.
5. Using a screwdriver wrapped with protective tape, disconnect the rear seat reclining control cable as shown in the illustration.

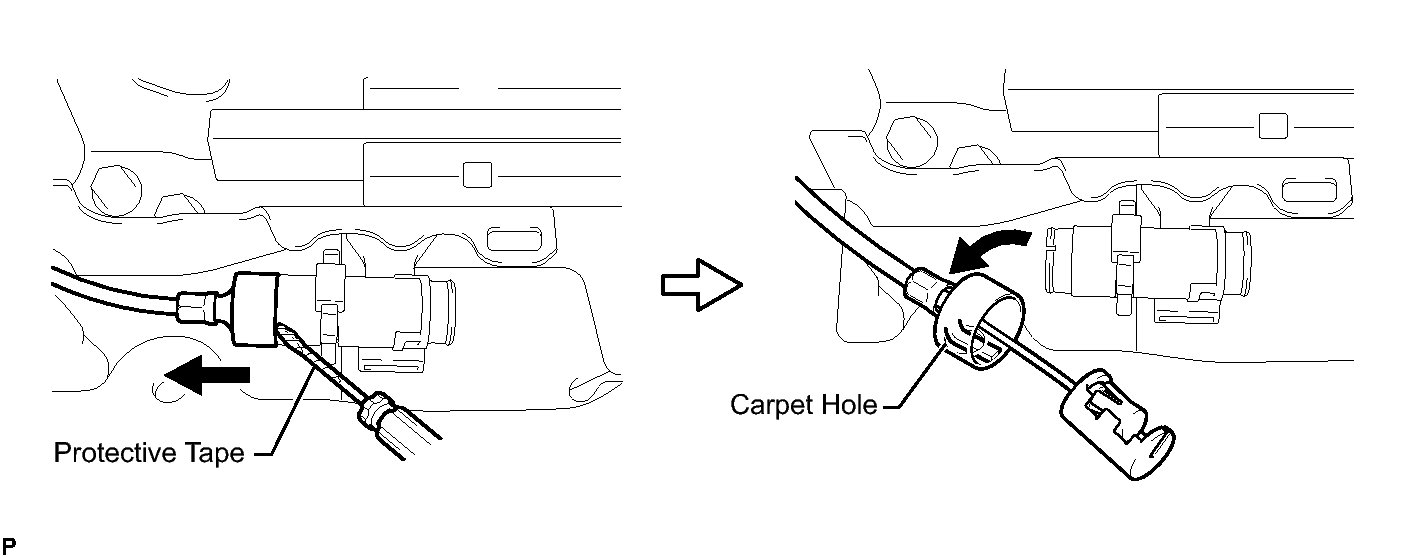

  Fig 10: Identifying Rear Seat Reclining Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Secure the rear seat reclining control cable with the carpet hole as shown in the illustration.
REMOVE REAR NO. 1 SEAT ASSEMBLY
1. Remove the 3 bolts on the rear side of the seat.

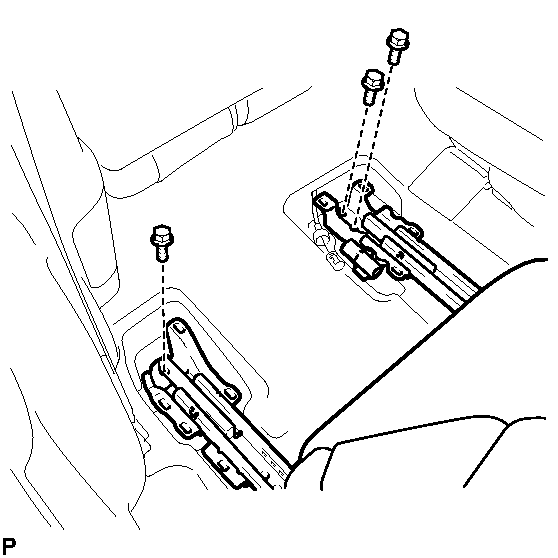

  Fig 11: Identifying Bolts On Rear Side Of Seat
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts on the front side of the seat and the rear No. 1 seat assembly.

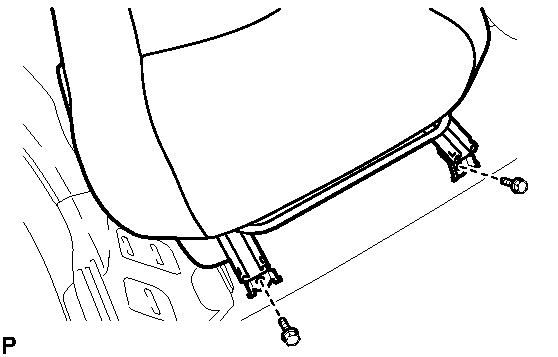

  Fig 12: Identifying Bolts On Front Side Of Seat
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Be careful not to damage the vehicle body.
