REAR NO. 1 SEAT ASSEMBLY (for LH Side): Reassembly: Reassembly

INSTALL REAR SEAT CUSHION SPRING ASSEMBLY
1. Using a T45 "TORX" socket wrench, install the rear seat cushion spring assembly with the 4 bolts and 2 bushes.

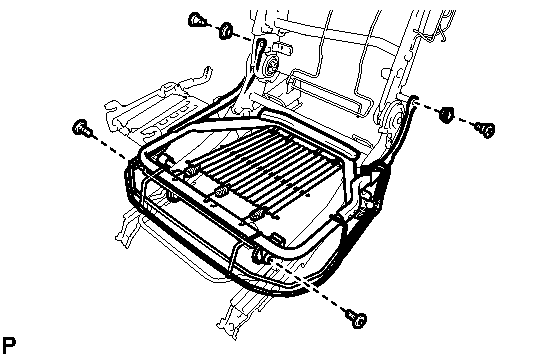

  Fig 1: Identifying Rear Seat Cushion Spring Assembly And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 21 N*m (214 kgf*cm, 16 ft.*lbf)
INSTALL REAR SEAT HOOK
1. Engage the claw to install the rear seat hook.

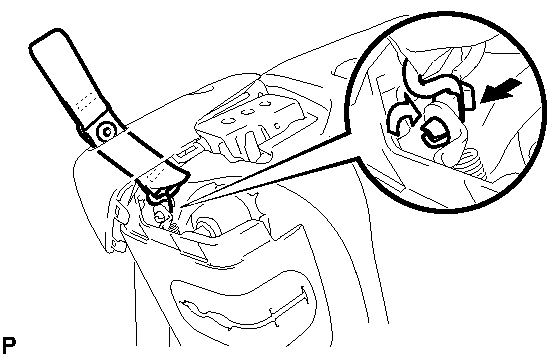

  Fig 2: Identifying Rear Seat Hook
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 REAR SEAT RECLINING CONTROL CABLE
1. Engage the claw.

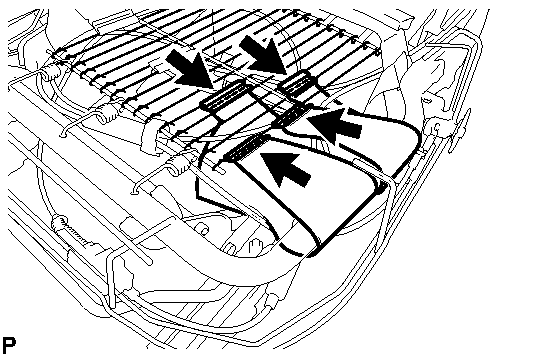

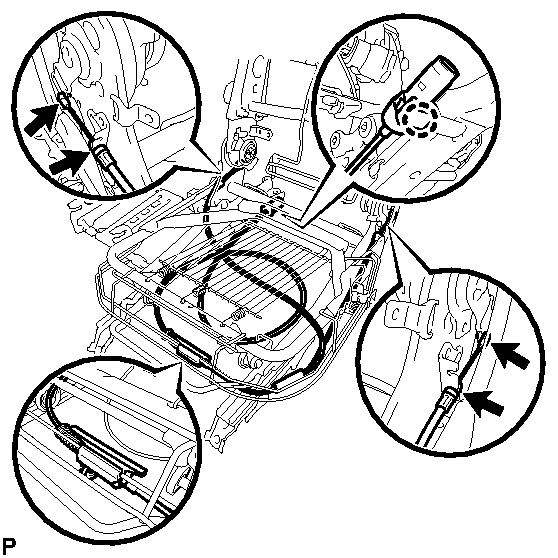

  Fig 3: Locating Cable Camps And Rear Seat Hook
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the rear seat hook.
3. Engage the 4 cable clamps to install the No. 2 rear seat reclining control cable.
INSTALL NO. 1 REAR SEAT RECLINING CONTROL CABLE (w/ Remote Folding Function)
1. Install the clamp.

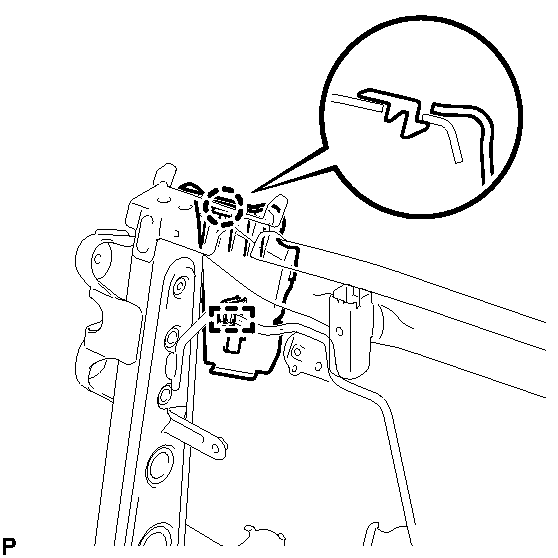

  Fig 4: Locating Control Cable Clamps And Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 2 clamps.

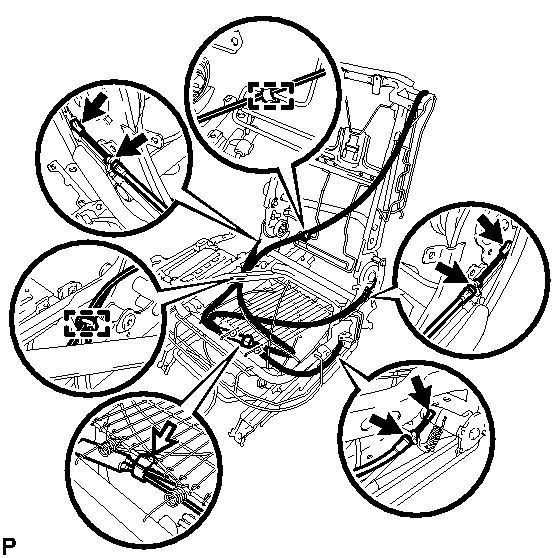

3. Engage the 6 cable clamps to install the No. 1 rear seat reclining control cable.

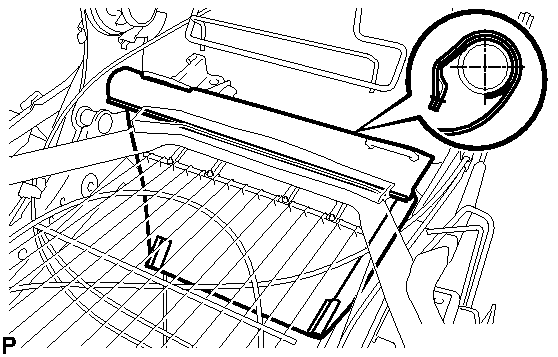

INSTALL NO. 2 REAR SEAT COVER
1. Install the No. 2 rear seat cover.

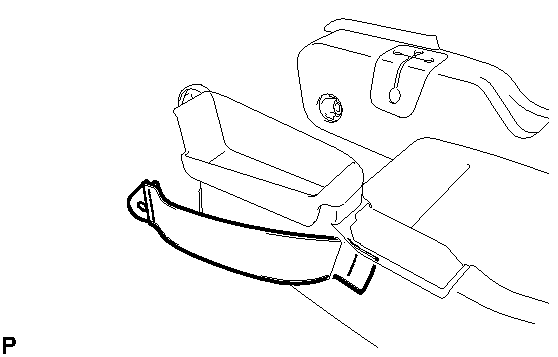

  Fig 5: Identifying No. 2 Rear Seat Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

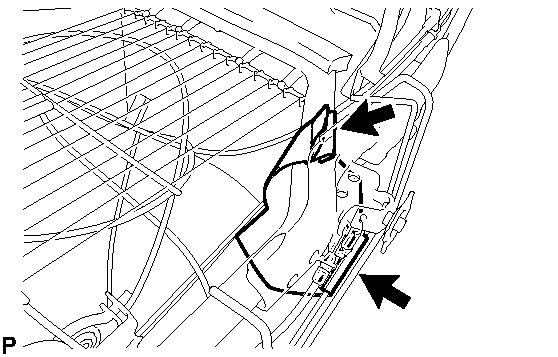

INSTALL REAR SEAT CUSHION SIDE COVER
1. Engage the claw.

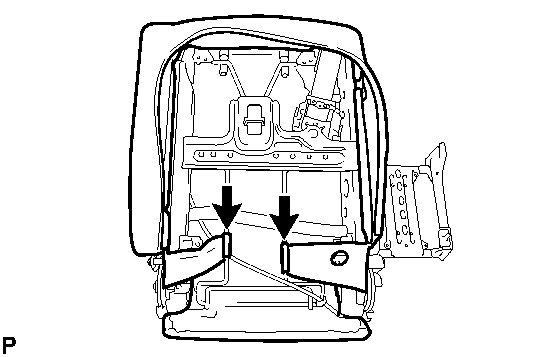

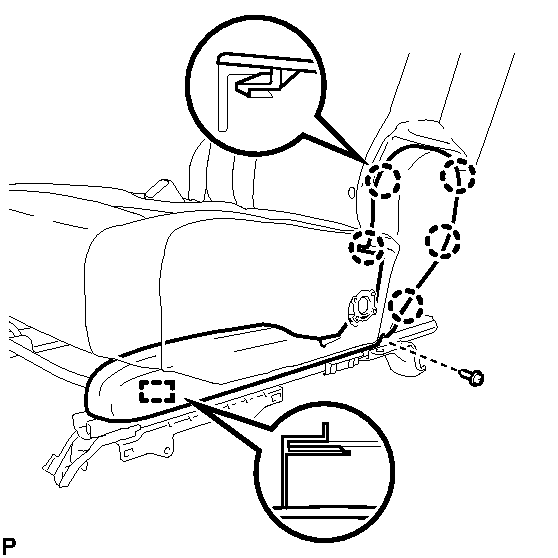

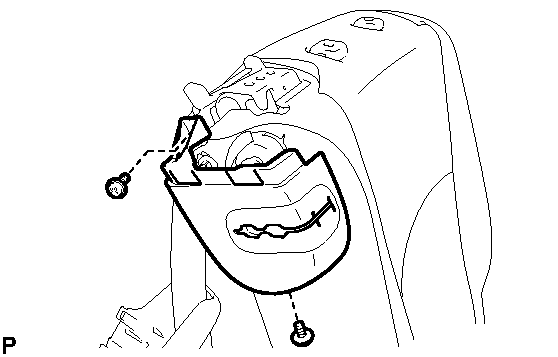

  Fig 6: Identifying Rear Seat Cushion Side Cover Claw And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the rear seat cushion side cover with the 2 screws.
INSTALL REAR NO. 2 SEATBACK COVER
1. Engage the claw.

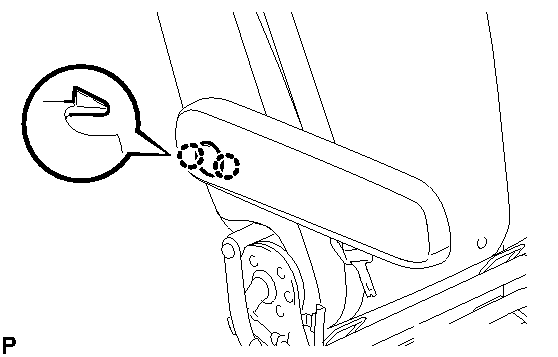

  Fig 7: Identifying Rear No. 2 Seatback Cover Claw And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the rear No. 2 seatback cover with the 2 screws.
INSTALL REAR NO. 1 SEAT SHOULDER BELT COVER
1. Engage the guide.

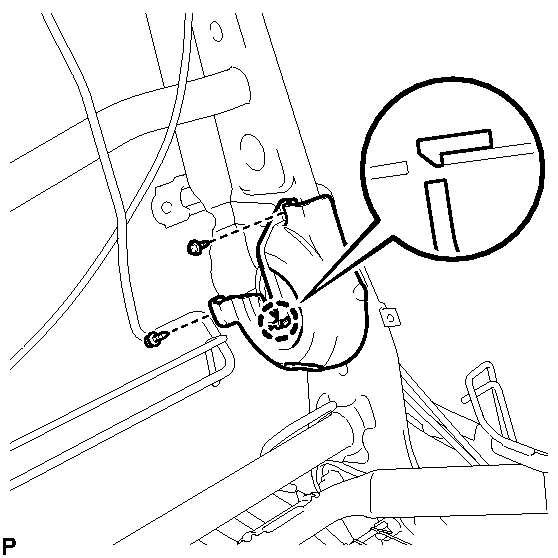

  Fig 8: Identifying Rear No. 1 Seat Shoulder Belt Cover And Guide
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the claw to install the rear No. 1 seat shoulder belt cover.
INSTALL REAR CENTER SEAT OUTER BELT ASSEMBLY . Refer to INSTALLATION - Step 1
INSTALL BELT SUPPORT PLATE
1. Engage the 3 claws to install the belt support plate.

  Fig 9: Identifying Belt Support Plate Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

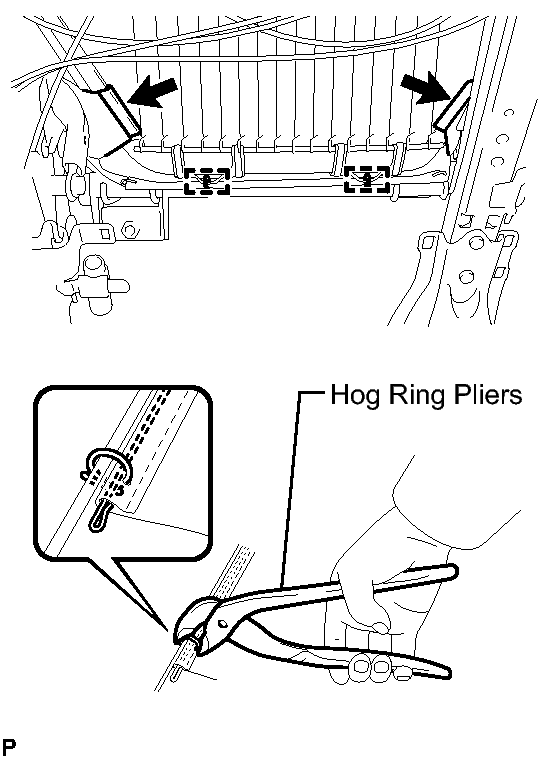

INSTALL SEPARATE TYPE REAR NO. 1 SEATBACK COVER

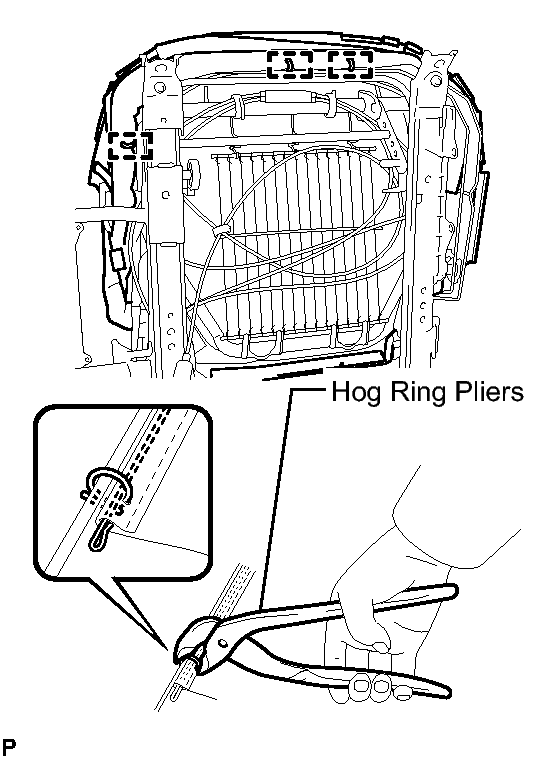

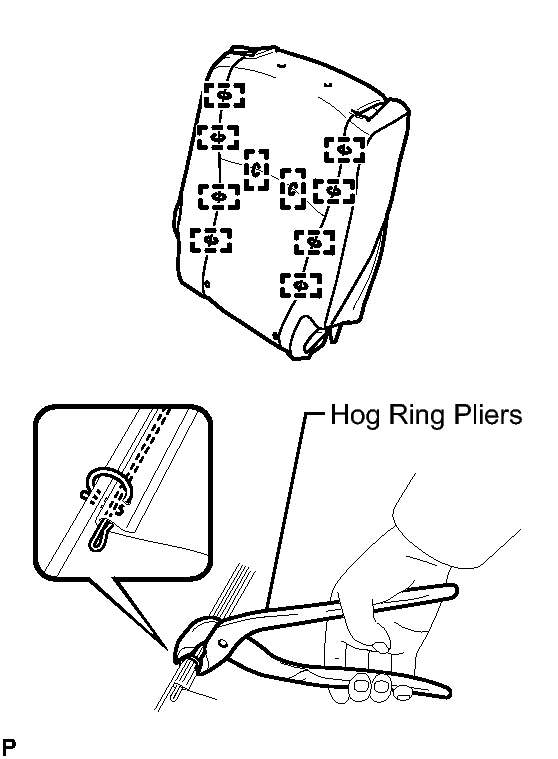

1. Using hog ring pliers, install the separate type rear No. 1 seatback cover with 10 new hog rings.

  Fig 10: Installing Separate Type Rear No. 1 Seatback Cover And Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Be careful not to damage the cover.
  - When installing the hog rings, take care to minimize wrinkles as much as possible.

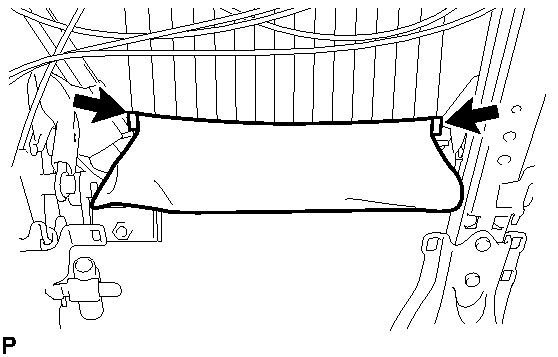

INSTALL REAR NO. 1 SEATBACK COVER WITH PAD

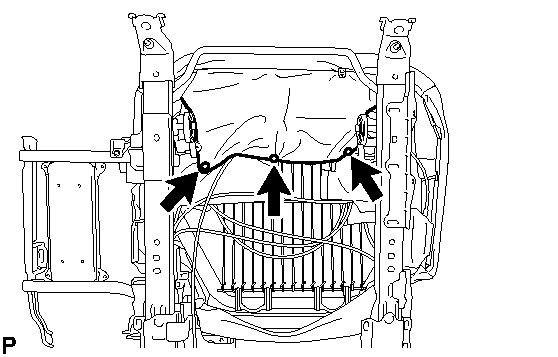

1. Engage the hooks to install the rear No. 1 seatback cover with pad.

  Fig 11: Locating Rear No. 1 Seatback Cover Hooks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

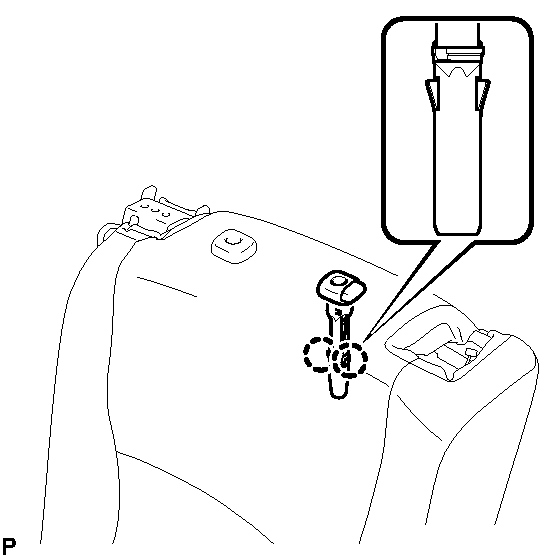

INSTALL REAR NO. 1 SEAT HEADREST SUPPORT ASSEMBLY RH

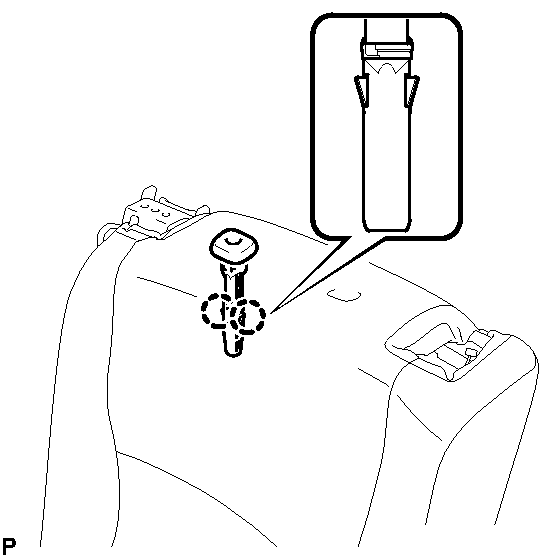

1. Engage the 2 claws to install the rear No. 1 seat headrest support assembly RH.

  Fig 12: Identifying Rear No. 1 Seat Headrest Support Assembly RH And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR NO. 1 SEAT HEADREST SUPPORT ASSEMBLY LH
1. Engage the 2 claws to install the rear No. 1 seat headrest support assembly LH.

  Fig 13: Identifying Rear No. 1 Seat Headrest Support Assembly LH And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

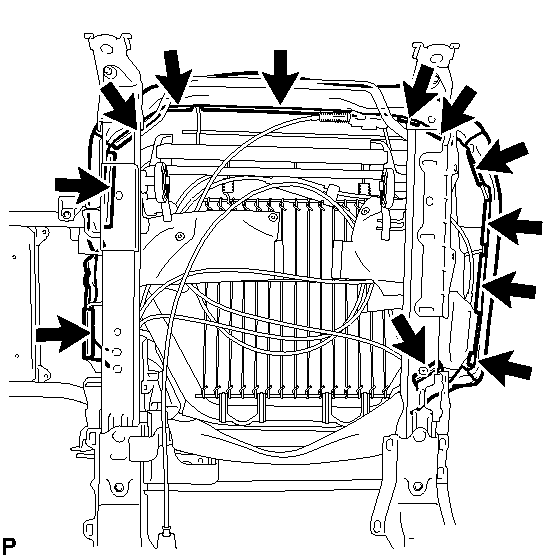

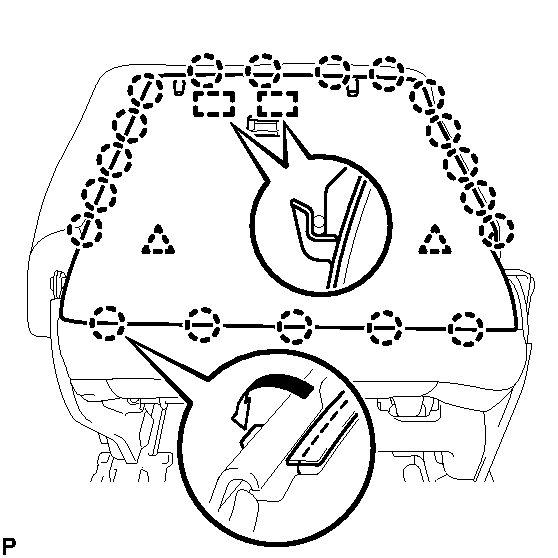

INSTALL REAR SEATBACK BOARD CARPET ASSEMBLY
1. Engage 2 guides.

  Fig 14: Identifying Rear Seatback Board Carpet Assembly & Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 2 clips.
3. Engage the 19 claws to install the rear seatback board carpet assembly as shown in the illustration.

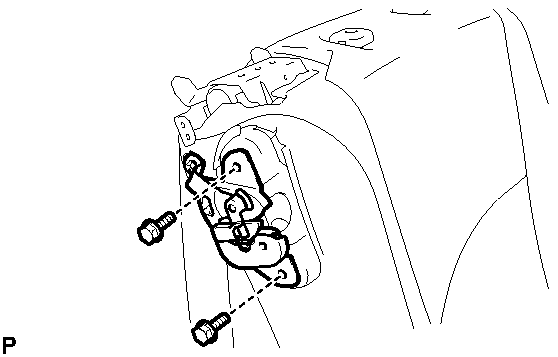

INSTALL REAR SEATBACK LOCK ASSEMBLY
1. Install the rear seatback lock assembly with the 2 bolts.

  Fig 15: Identifying Rear Seatback Lock Assembly And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 21 N*m (214 kgf*cm, 16 ft.*lbf)
INSTALL REAR SEATBACK LOWER LOCK BEZEL
1. Install the rear seatback lower lock bezel with the 2 screws.

  Fig 16: Identifying Rear Seatback Lower Lock Bezel And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the snap to install the rear seat track handle as shown in the illustration.

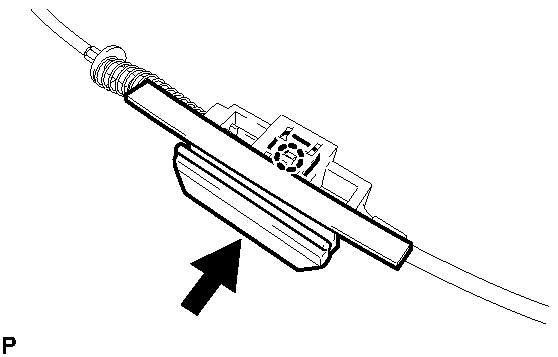

  Fig 17: Identifying Rear Seat Track Handle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Engage the 4 claws.

  Fig 18: Identifying Rear Center Seat Outer Belt Cover And Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the rear center seat outer belt cover with the screw.
CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY . Refer to INSTALLATION - Step 9
INSTALL REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY

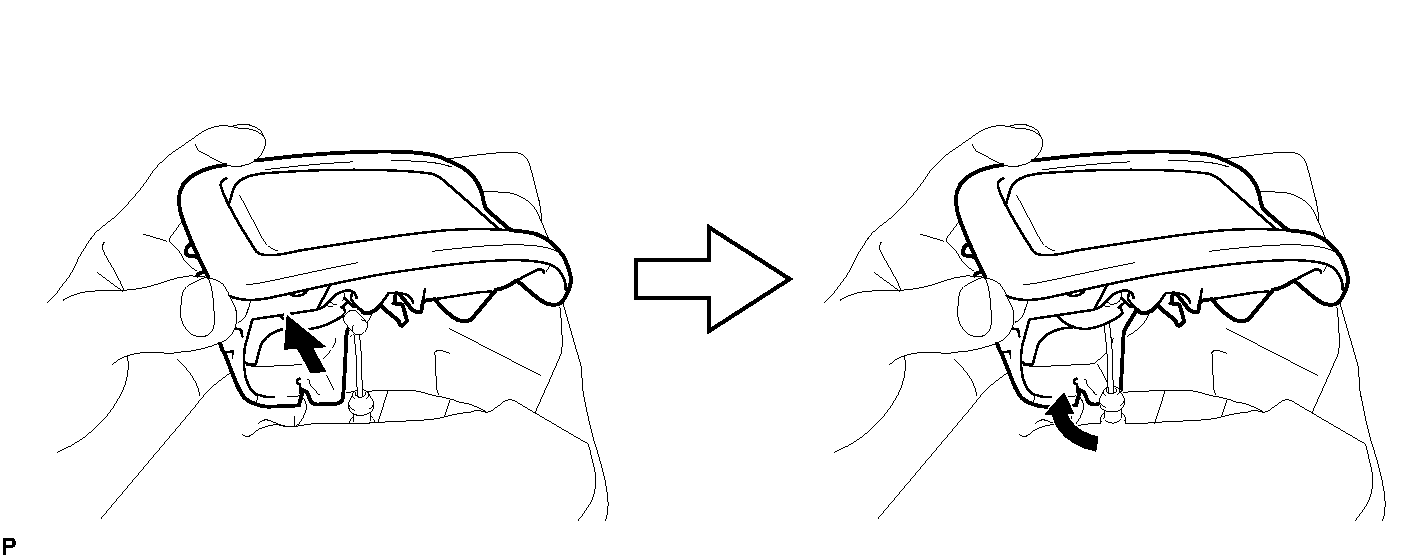

1. Connect the rear seat lock control cable as shown in the illustration.

  Fig 19: Connecting Rear Seat Lock Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the guide.

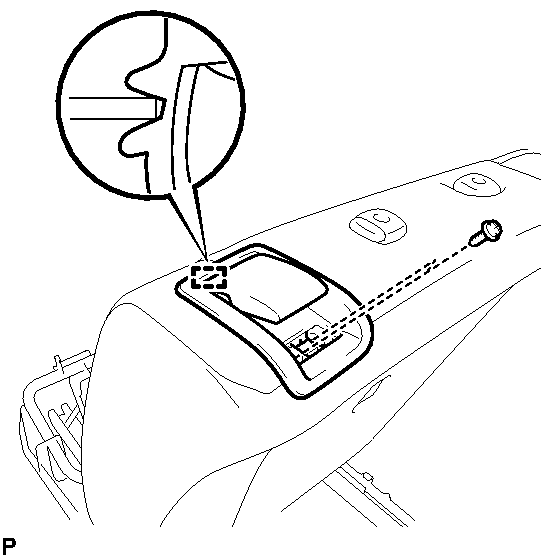

  Fig 20: Identifying Rear Seat Lock Control Lever Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the rear seat lock control lever sub-assembly with the 2 screws.
INSTALL REAR SEAT LOCK STRIKER COVER
1. Engage the guide.

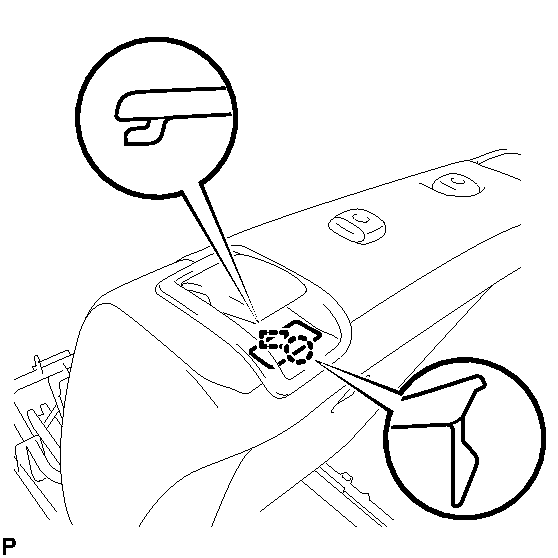

  Fig 21: Identifying Rear Seat Lock Striker Cover And Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the claw to install the rear seat lock striker cover.
INSTALL REAR SEATBACK COVER
1. Engage the 4 claws to install the rear seatback cover.

  Fig 22: Identifying Rear Seatback Cover Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TONNEAU COVER HOOK HOLDER
1. Install the 2 tonneau cover hook holders with the 2 screws.

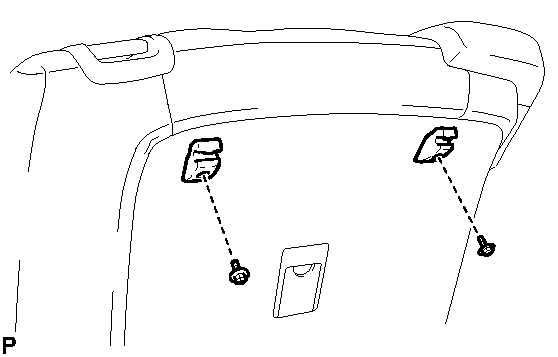

  Fig 23: Identifying Tonneau Cover Hook Holders And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

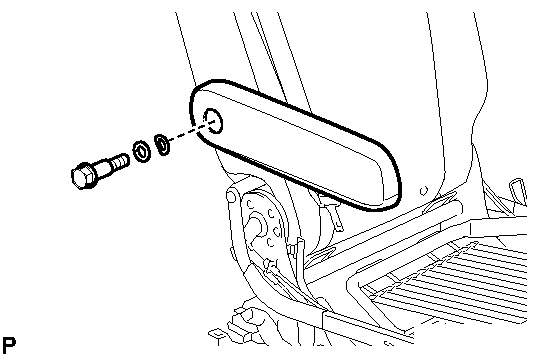

INSTALL REAR SEAT ARMREST ASSEMBLY
1. Install the rear seat armrest assembly with the bolt.

  Fig 24: Identifying Rear Seat Armrest Assembly With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 33 N*m (337 kgf*cm, 24 ft.*lbf)
INSTALL NO. 1 SEAT ARMREST CAP

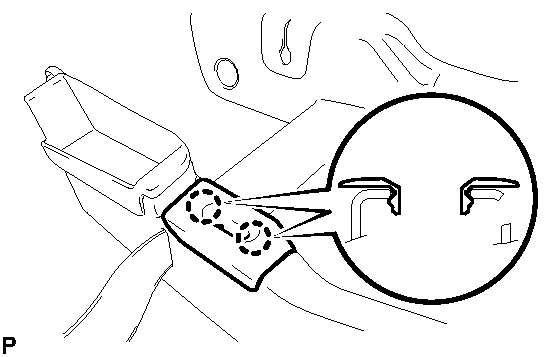

1. Engage the 2 claws to install the No. 1 seat armrest cap.

  Fig 25: Identifying No. 1 Seat Armrest Cap Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR NO. 1 SEAT INNER BELT ASSEMBLY . Refer to INSTALLATION - Step 1
INSTALL REAR SEAT RECLINING INNER COVER

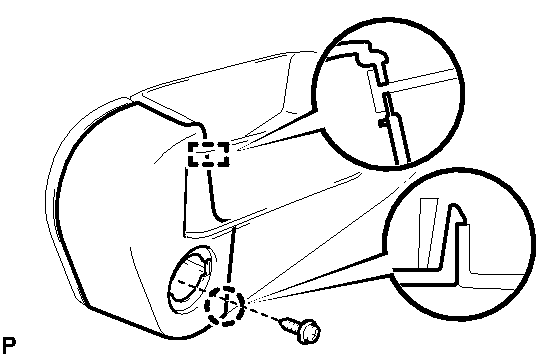

1. Engage the guide.

  Fig 26: Identifying Rear Seat Reclining Inner Cover And Guide
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the rear seat reclining inner cover with the screw.
INSTALL SEAT TRACK UPPER RAIL COVER
1. Engage the claw.

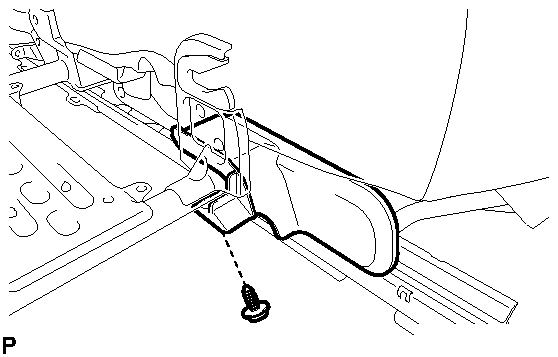

  Fig 27: Identifying Seat Track Upper Rail Cover And Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the seat track upper rail cover with the screw.

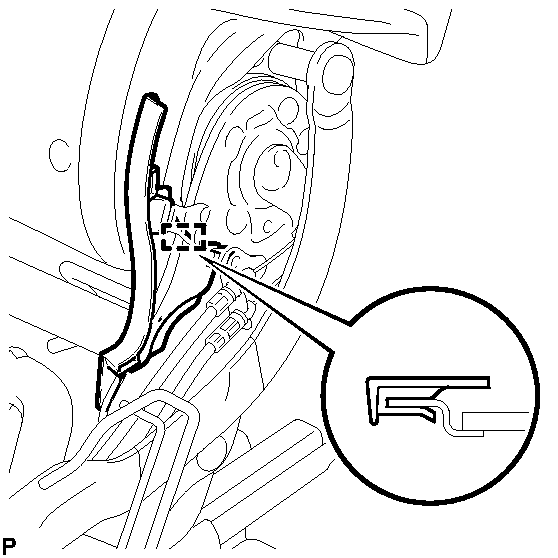

INSTALL RECLINING ADJUSTER INSIDE COVER LH
1. Engage the guide to install the reclining adjuster inside cover LH.

  Fig 28: Identifying Reclining Adjuster Inside Cover LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT NO. 1 RECLINING COVER
1. Engage the 2 guides.

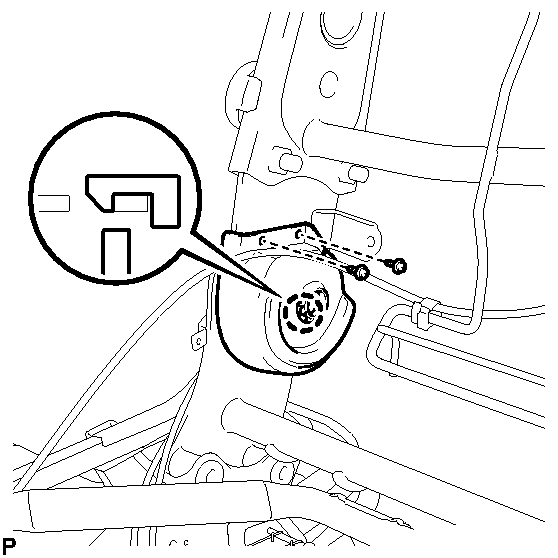

  Fig 29: Identifying Rear Seat No. 1 Reclining Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the claw.
3. Install the rear seat No. 1 reclining cover with the screw.
INSTALL NO. 1 REAR SEAT COVER (for Rear Side)
1. Engage the 2 hooks to install the No. 1 rear seat cover.

  Fig 30: Locating No. 1 Rear Seat Cover And Hooks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 REAR SEAT COVER (for RH Side)
1. Engage the 2 hooks to install the No. 1 rear seat cover.

  Fig 31: Locating No. 1 Rear Seat Cover And Hooks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 REAR SEAT COVER (for LH Side)
1. Engage the 4 hooks to install the No. 1 rear seat cover.

  Fig 32: Identifying No. 1 Rear Seat Cover And Hooks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

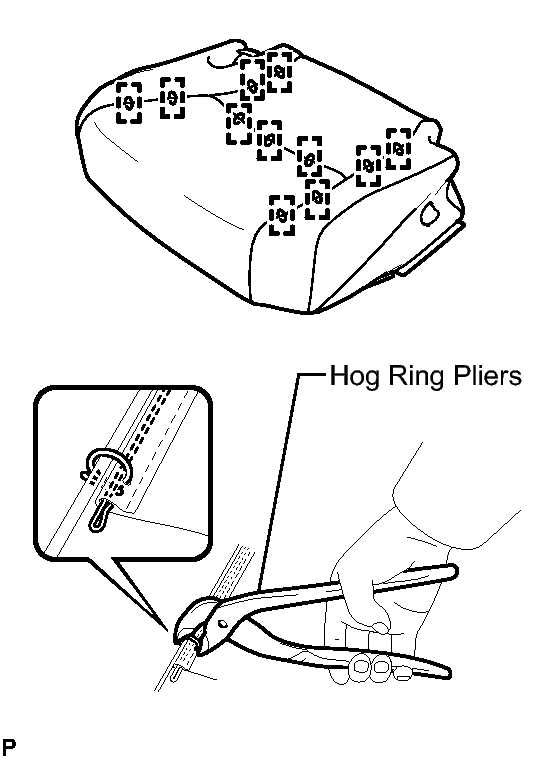

INSTALL SEPARATE TYPE REAR NO. 1 SEAT CUSHION COVER
1. Using hog ring pliers, install the separate type rear No. 1 seat cushion cover with 11 new hog rings.

  Fig 33: Installing Separate Type Rear No. 1 Seat Cushion Cover With Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Be careful not to damage the cover.
  - When installing the hog rings, take care to minimize wrinkles as much as possible.
INSTALL REAR NO. 1 SEAT CUSHION COVER WITH PAD
1. Using hog ring pliers, install 3 new hog rings.

  Fig 34: Installing Rear No. 1 Seat Cushion Cover Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Be careful not to damage the cover.
  - When installing the hog rings, take care to minimize wrinkles as much as possible.
2. Engage the 12 hooks.

  Fig 35: Locating Hooks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Engage the 3 buttons.

  Fig 36: Locating Buttons
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using hog ring pliers, install 2 new hog rings.

  Fig 37: Installing Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Be careful not to damage the cover.
  - When installing the hog rings, take care to minimize wrinkles as much as possible.
5. Install the 2 hooks.
6. Engage the 2 hooks to install the rear No. 1 seat cushion cover with pad.

  Fig 38: Locating Rear No. 1 Seat Cushion Cover Hooks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT FRONT CUSHION MOULDING

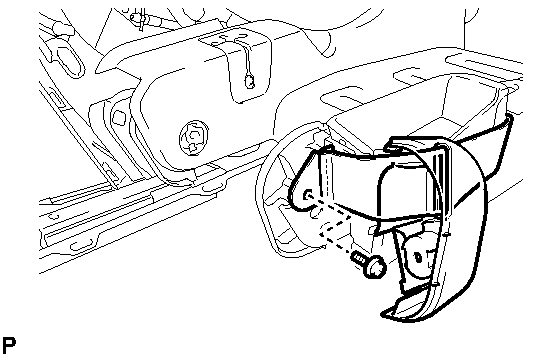

1. Install the rear seat front cushion moulding with the screw.

  Fig 39: Identifying Rear Seat Front Cushion Moulding And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

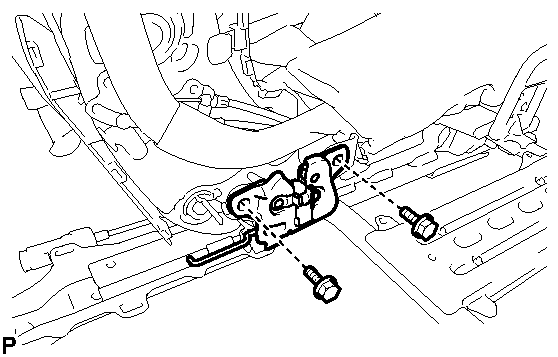

INSTALL REAR SEAT LOCK ASSEMBLY
1. Install the rear seat lock assembly with the 2 bolts.

  Fig 40: Identifying Rear Seat Lock Assembly And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 21 N*m (214 kgf*cm, 16 ft.*lbf)
INSTALL NO. 2 REAR SEAT BEZEL COVER
1. Temporarily install the No. 2 rear seat bezel cover as shown in the illustration.

  Fig 41: Identifying No. 2 Rear Seat Bezel Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 2 guides.
3. Install the rear seat bezel cover with the screw.
INSTALL REAR SEAT CUSHION UNDER COVER
1. Engage the guide.

  Fig 42: Identifying Rear Seat Cushion Under Cover Guide And Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the claw to install the rear seat cushion under cover.
INSTALL REAR SEAT 3 POINT TYPE COVER ASSEMBLY
1. Engage the 2 claws to install the rear seat 3 point type cover assembly.

  Fig 43: Identifying Rear Seat Point Type Cover Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SIDE SEAT BAND SUB-ASSEMBLY
1. Install the rear side seat band sub-assembly.

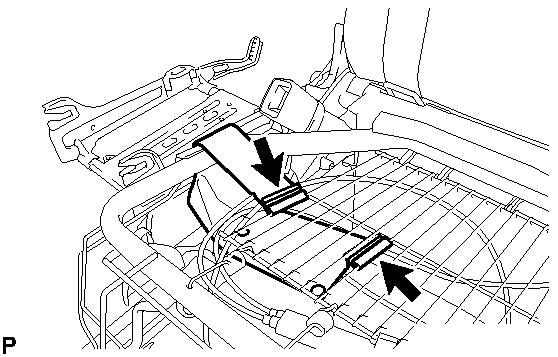

  Fig 44: Identifying Rear Side Seat Band Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 SEAT LEG COVER
1. Install the No. 2 seat leg cover with the 5 screws.

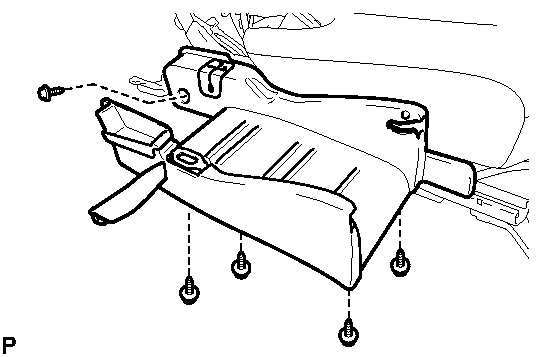

  Fig 45: Identifying No. 2 Seat Leg Cover And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT NO. 2 LEG SIDE COVER
1. Engage the 2 claws to install the rear seat No. 2 leg side cover.

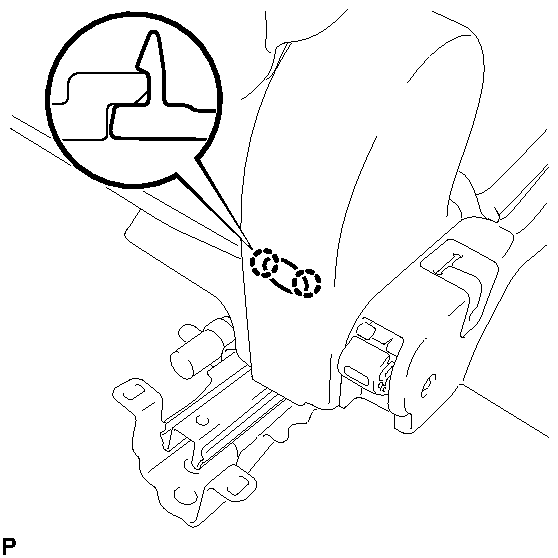

  Fig 46: Identifying Rear Seat No. 2 Leg Side Cover And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

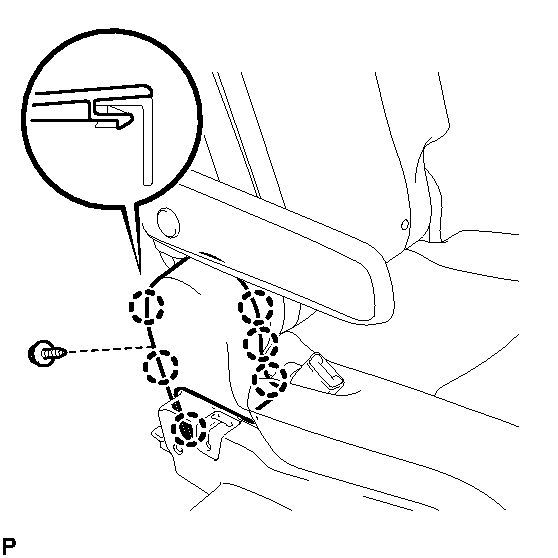

INSTALL CENTER PROTECTOR COVER

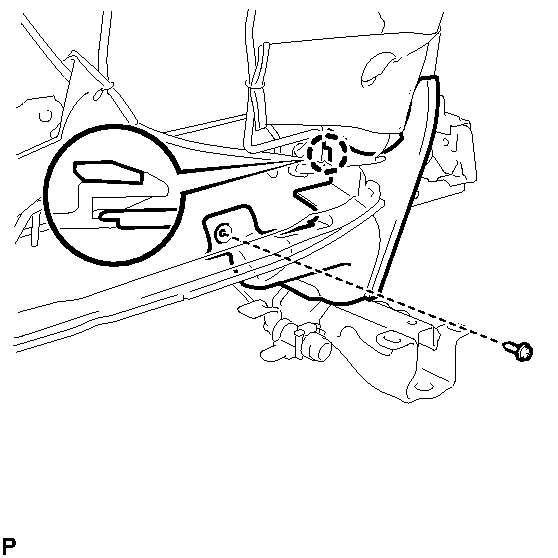

1. Temporarily install the center protector cover.

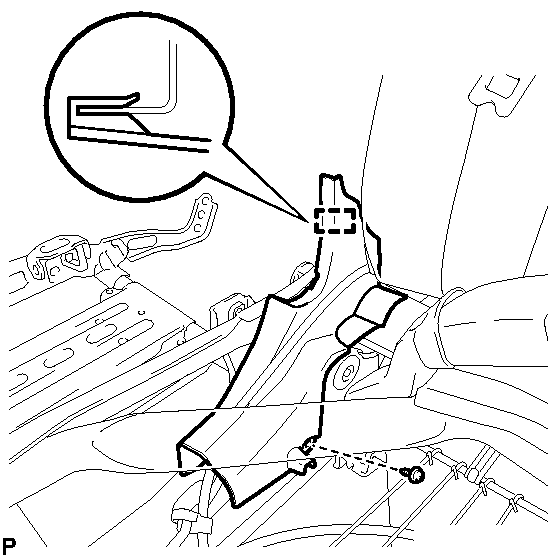

  Fig 47: Identifying Center Protector Cover And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. install the rear side seat band sub-assembly with the screw.
3. Engage the claw and guide.

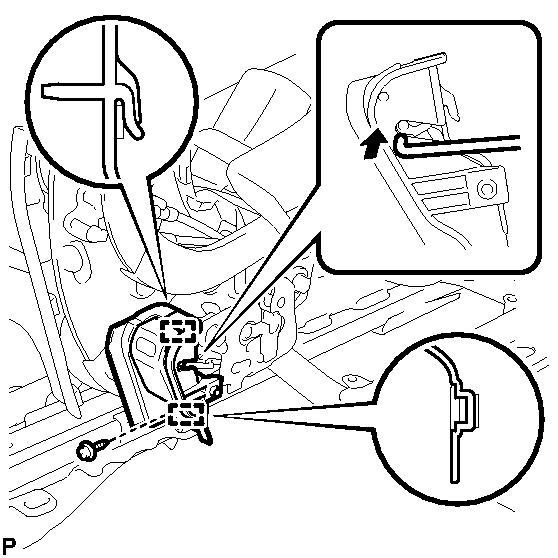

  Fig 48: Identifying Center Protector Cover Claw And Guide
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the center protector cover with the screw.
INSTALL SEAT ADJUSTER COVER CAP

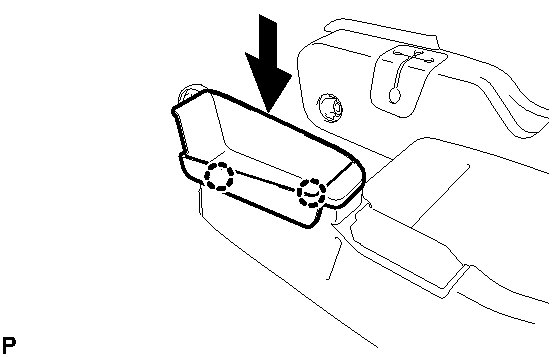

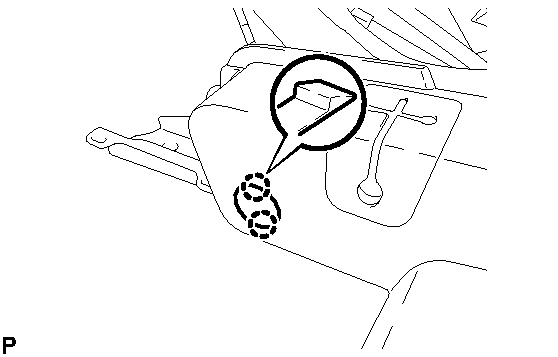

1. Engage the 2 claws to install the seat adjuster cover cap.

  Fig 49: Identifying Seat Adjuster Cover Cap And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SEAT ADJUSTER COVER CAP
1. Engage the 2 claws to install the seat adjuster cover cap.

  Fig 50: Identifying Seat Adjuster Cover Cap And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT CUSHION MOULDING RH
1. Engage the 6 claws.

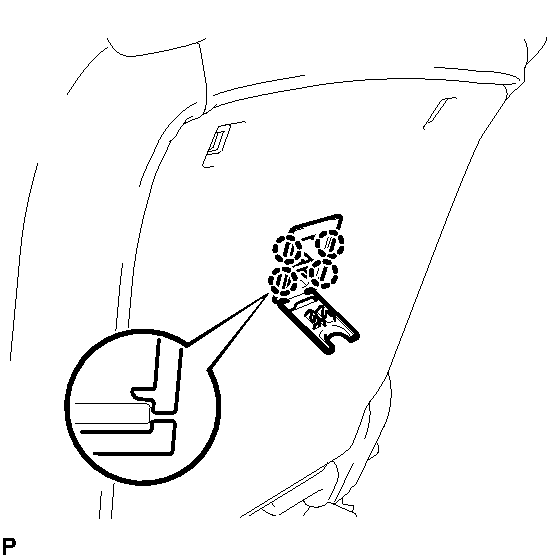

  Fig 51: Identifying Rear Seat Cushion Molding RH With Screw & Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the rear seat cushion moulding RH with the screw.
INSTALL SEAT ADJUSTER COVER CAP
1. Engage the 2 claws to install the seat adjuster cover cap.

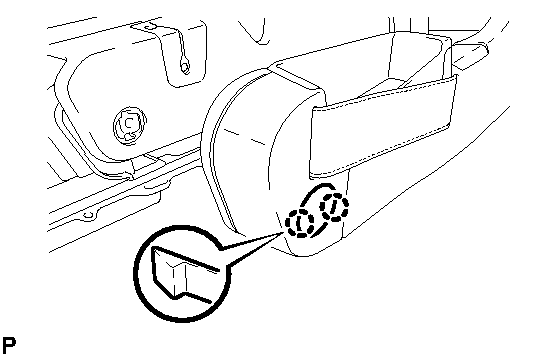

  Fig 52: Identifying Seat Adjuster Cover Cap Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT CUSHION MOULDING LH
1. Engage the guide.

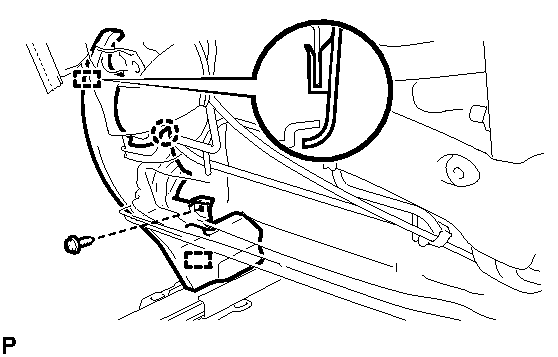

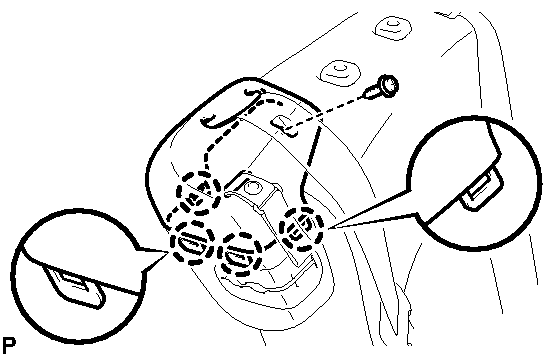

  Fig 53: Identifying Rear Seat Cushion Moulding LH With Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 5 claws.
3. Install the rear seat cushion moulding LH with the screw.
INSTALL NO. 1 RECLINING ADJUSTER RELEASE HANDLE
1. Install the No. 1 reclining adjuster release handle with the 3 screws.

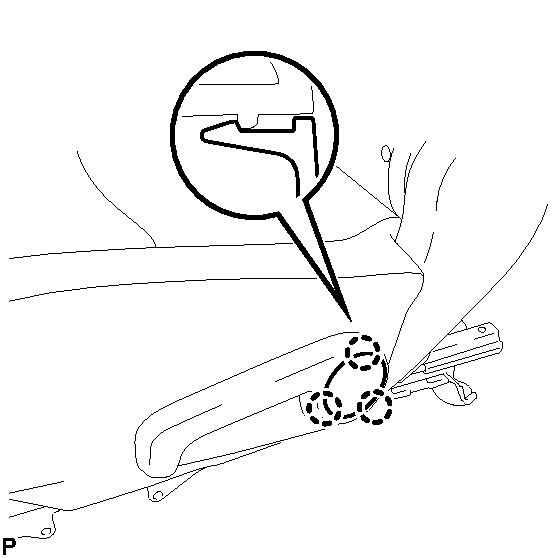

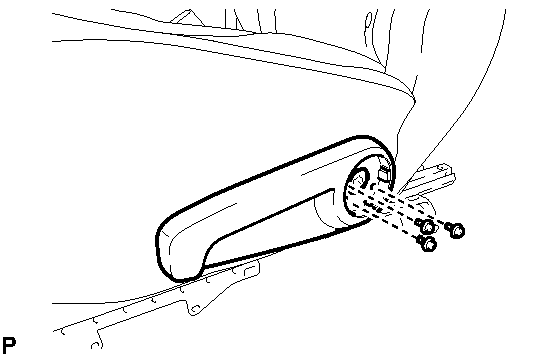

  Fig 54: Removing No. 1 Reclining Adjuster Release Handle And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT RECLINING UPPER COVER
1. Engage the 3 claws to install the rear seat reclining upper cover.

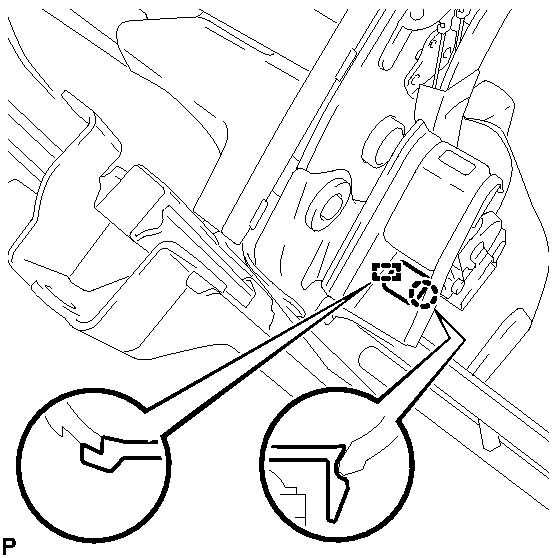

  Fig 55: Identifying Rear Seat Reclining Upper Cover Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
