Parts Location: Illustration

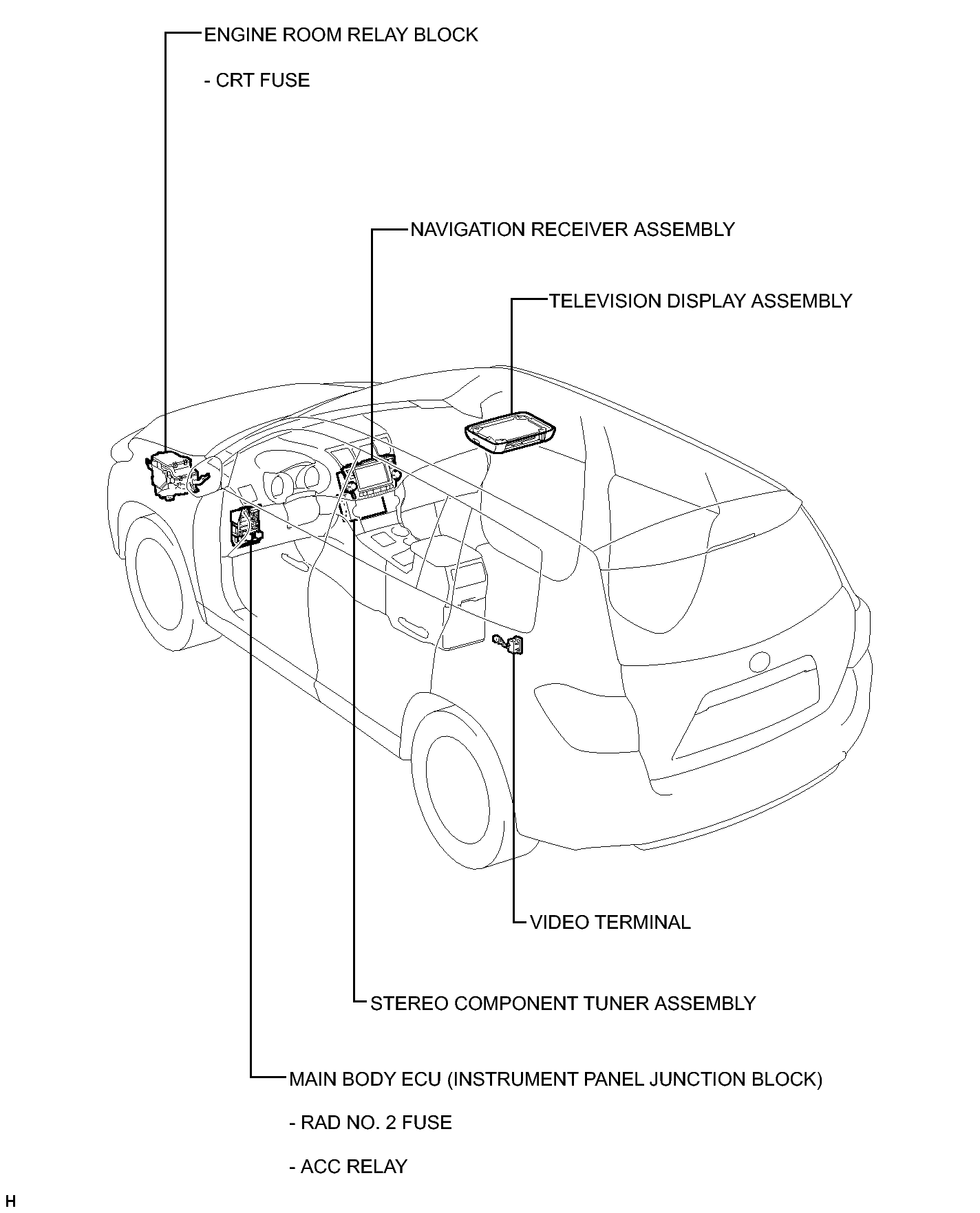

Fig 1: Identifying Rear Seat Entertainment System Replacement Components

GTY306104

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
