Turn Signal Flasher Assembly: Components: Illustration

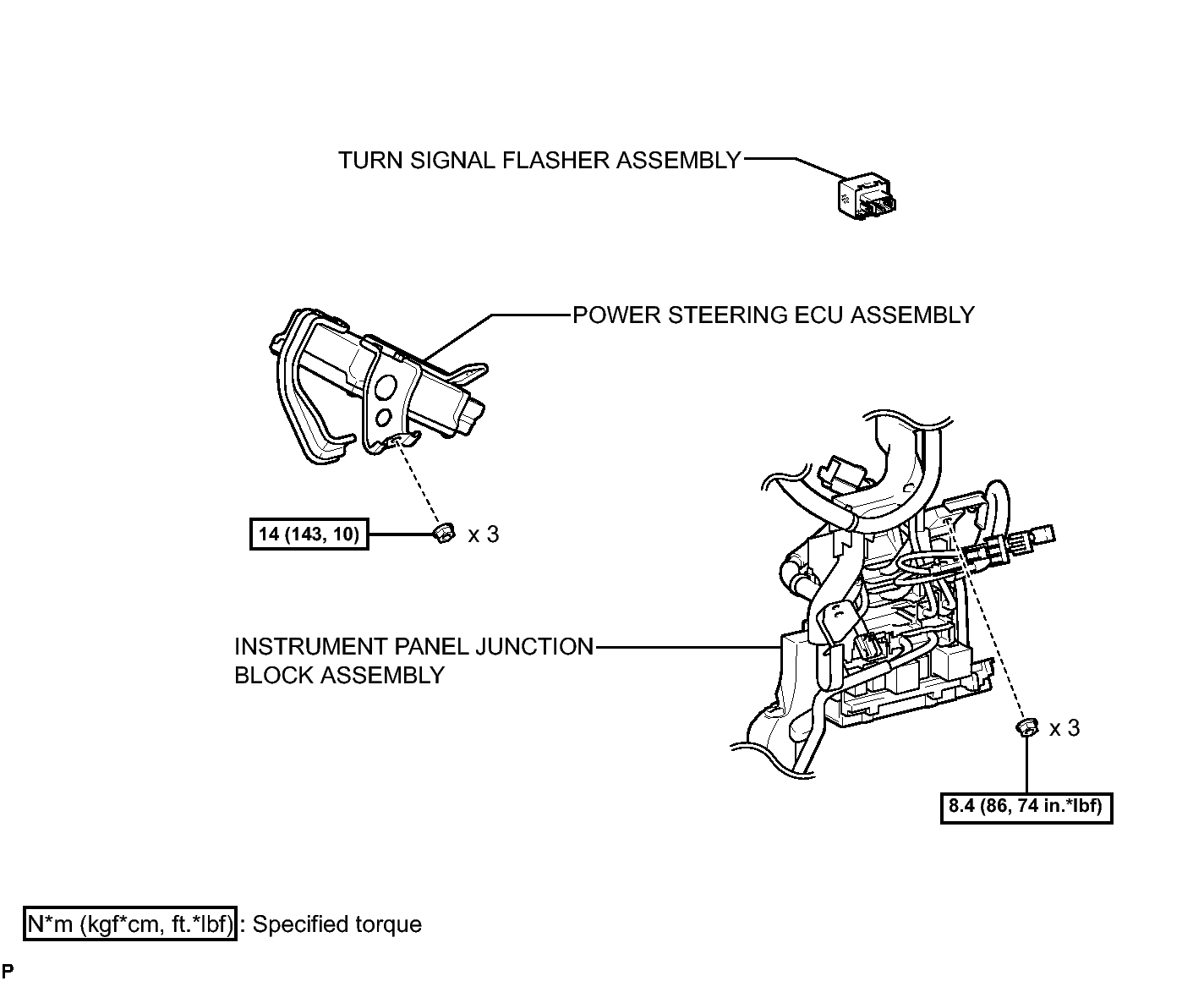

Fig 1: Identifying Turn Signal Flasher Assembly Replacement Components With Torque Specifications (8 Of 8)
GTY208229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
