License Plate Light Assembly: Components: Illustration

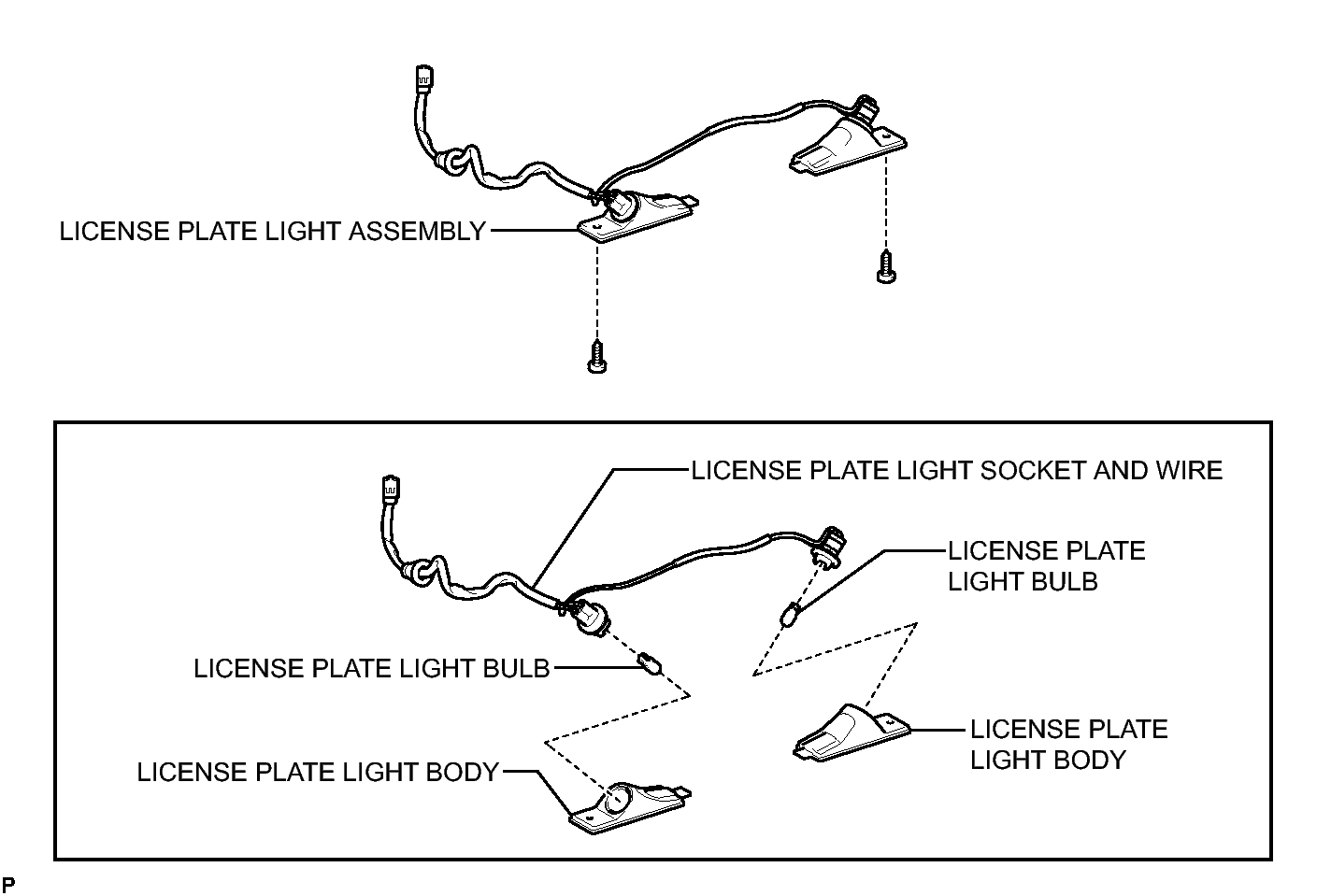

Fig 1: Identifying License Plate Light Assembly Replacement Components (1 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

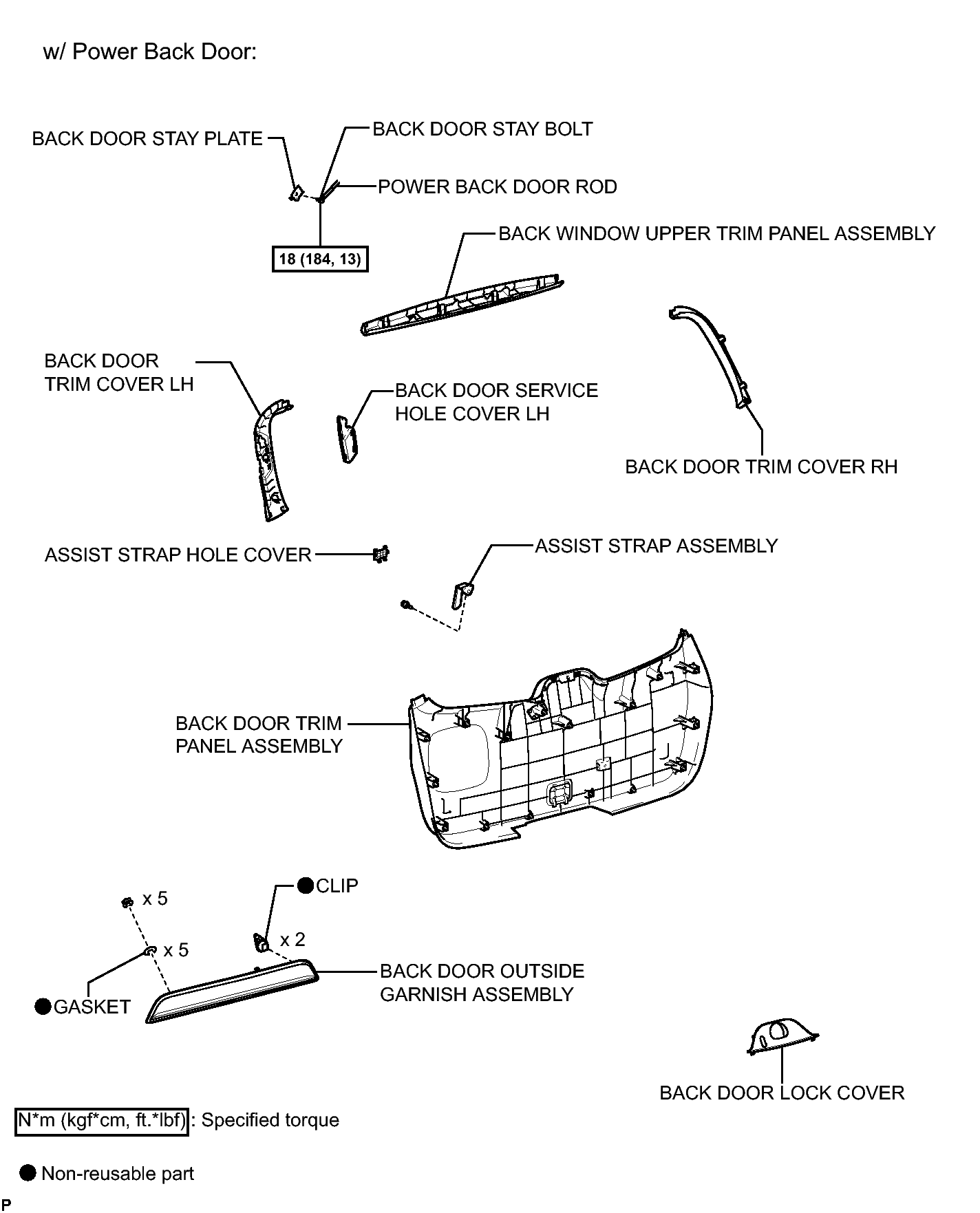

Fig 1: Identifying License Plate Light Assembly Replacement Components With Torque Specification (2 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

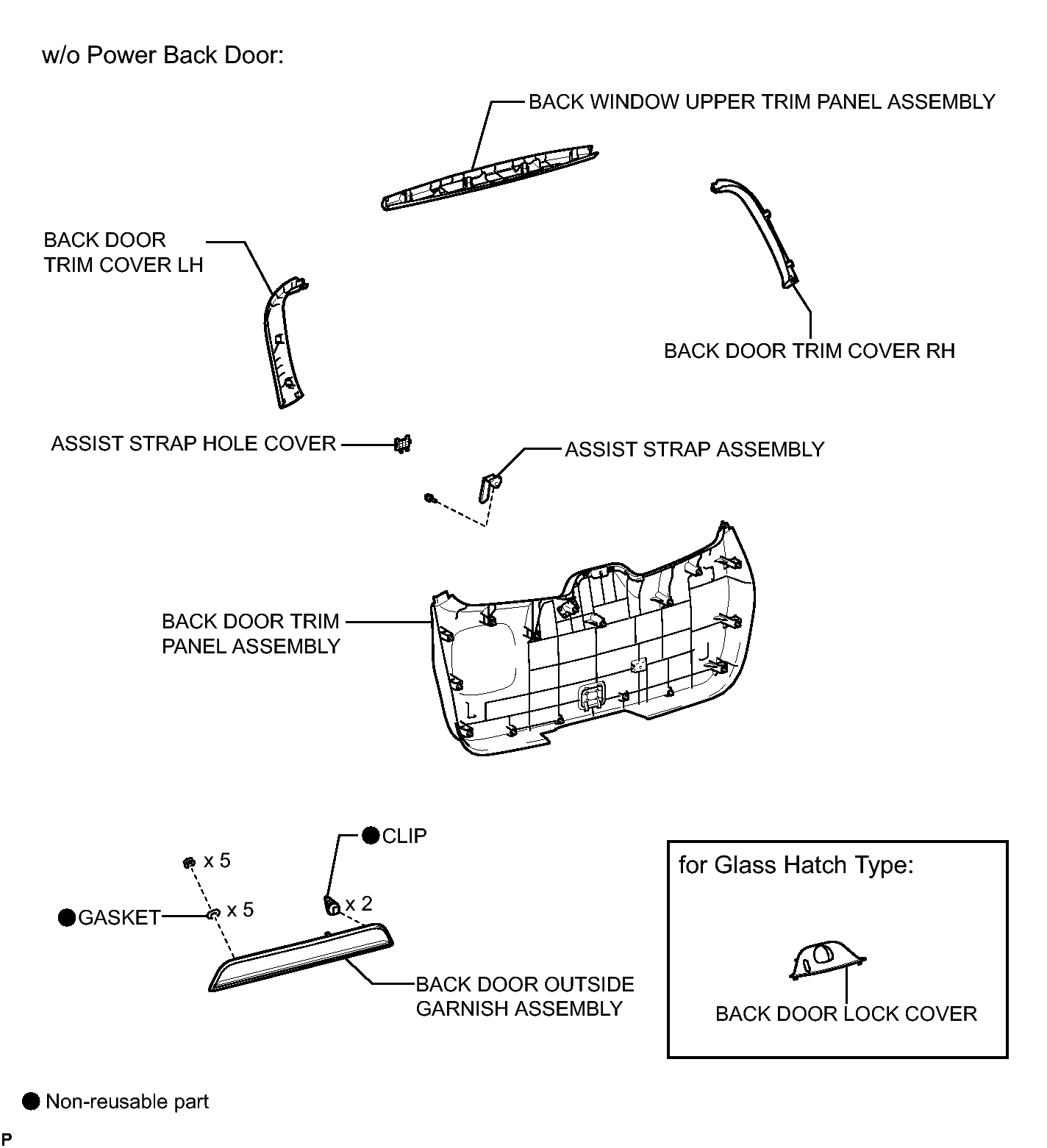

Fig 1: Identifying License Plate Light Assembly Replacement Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
