Headlight Dimmer Switch: Components: Illustration

Fig 1: Identifying Headlight Dimmer Switch Replacement Components (1 of 2)
GTY300837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

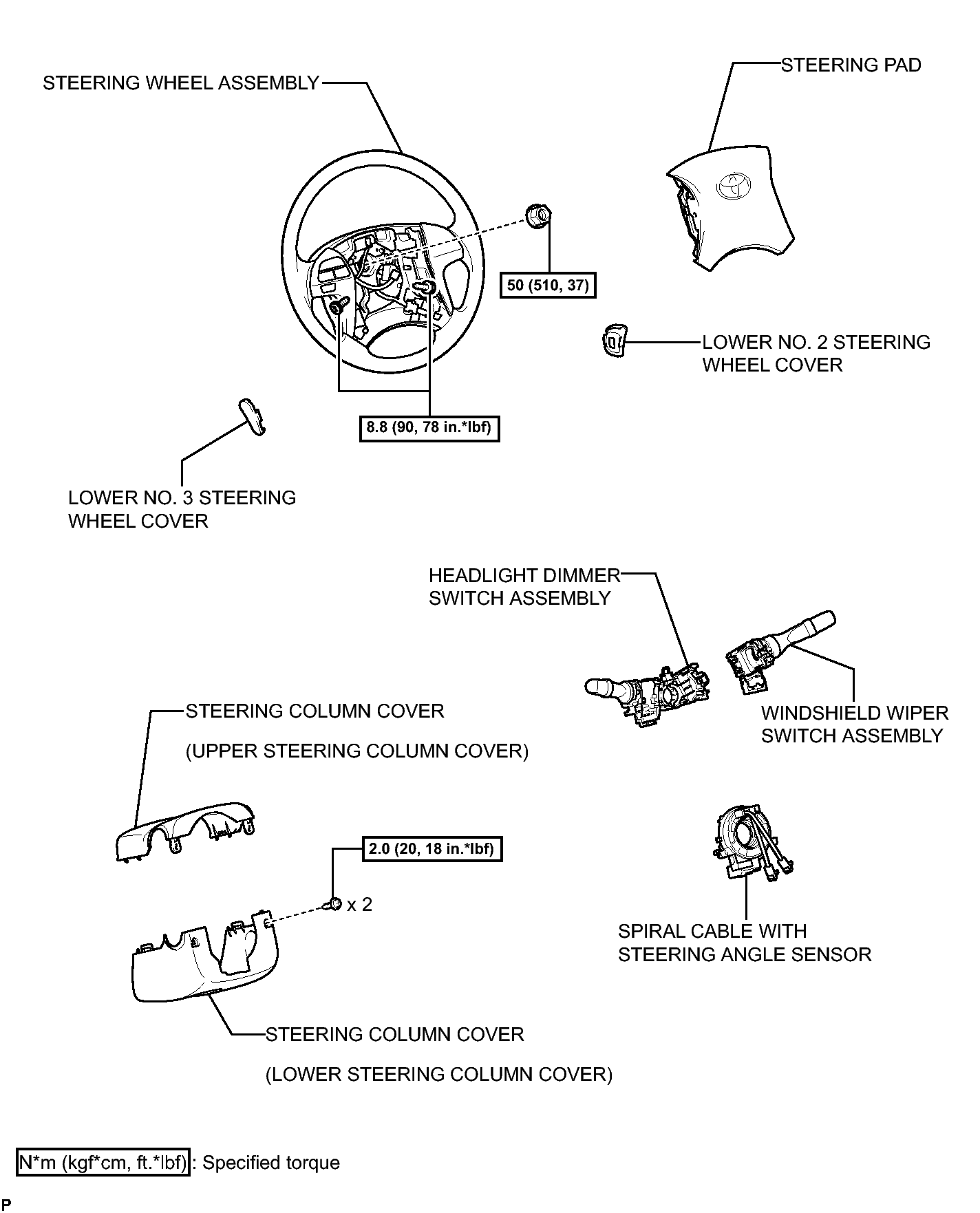

Fig 1: Identifying Headlight Dimmer Switch Replacement Components With Torque Specifications (2 of 2)
GTY208163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
