Headlight Assembly: Components: Illustration

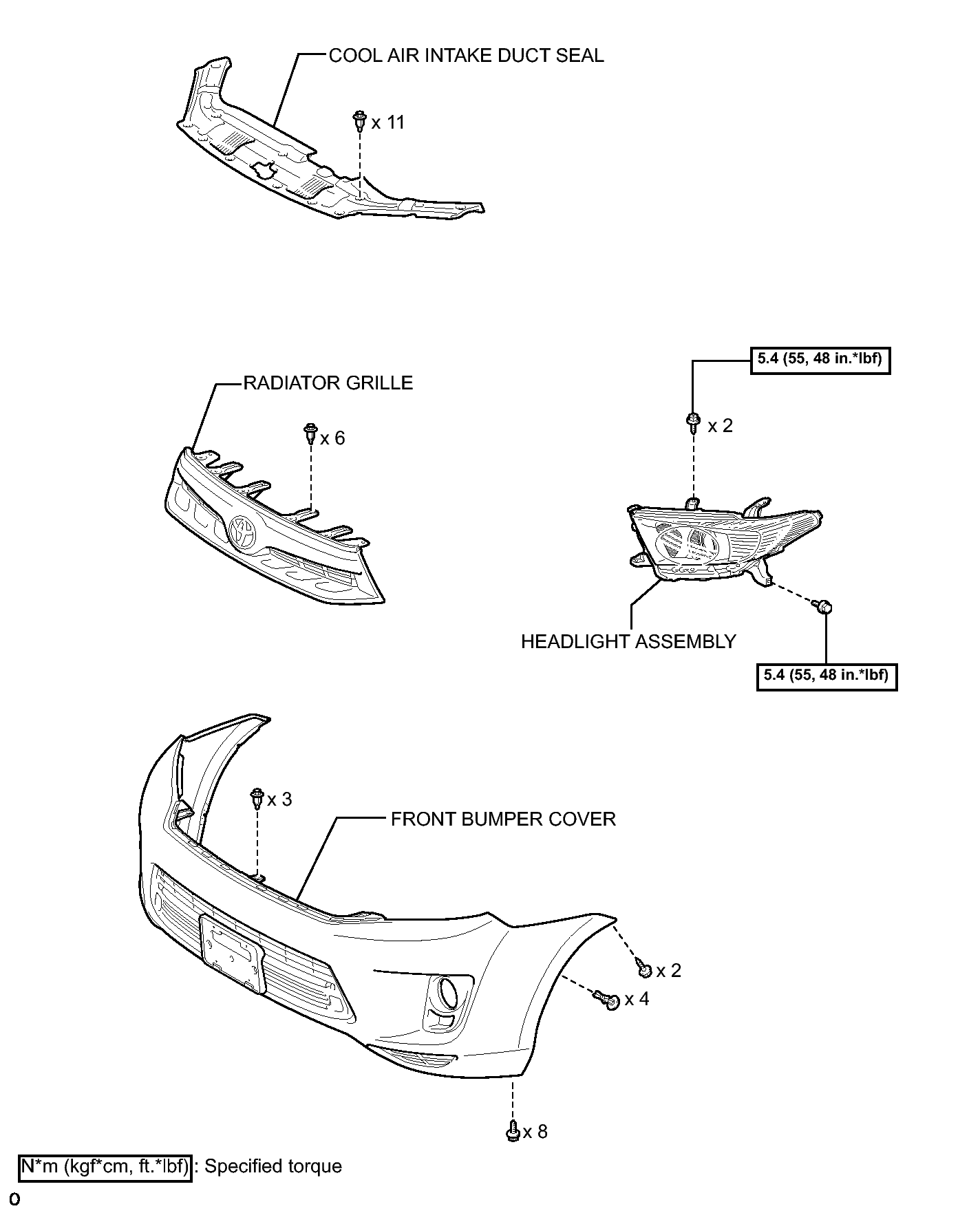

Fig 1: Identifying Headlight Assembly Replacement Components With Torque Specifications (1 of 2)
GTY307367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

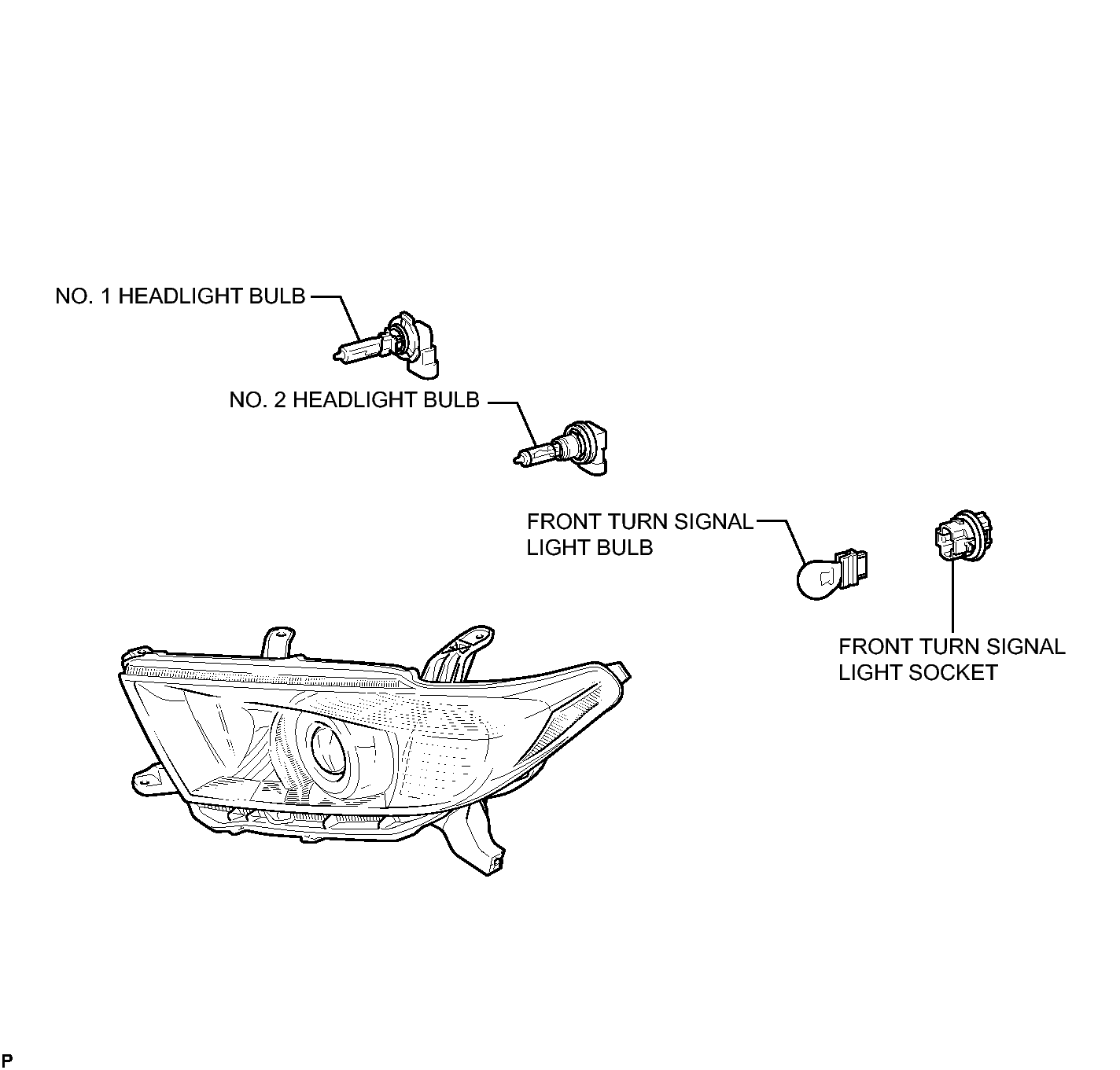

Fig 1: Identifying Headlight Assembly Replacement Components (2 of 2)
GTY304507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
