Front Door Courtesy Switch: Components: Illustration

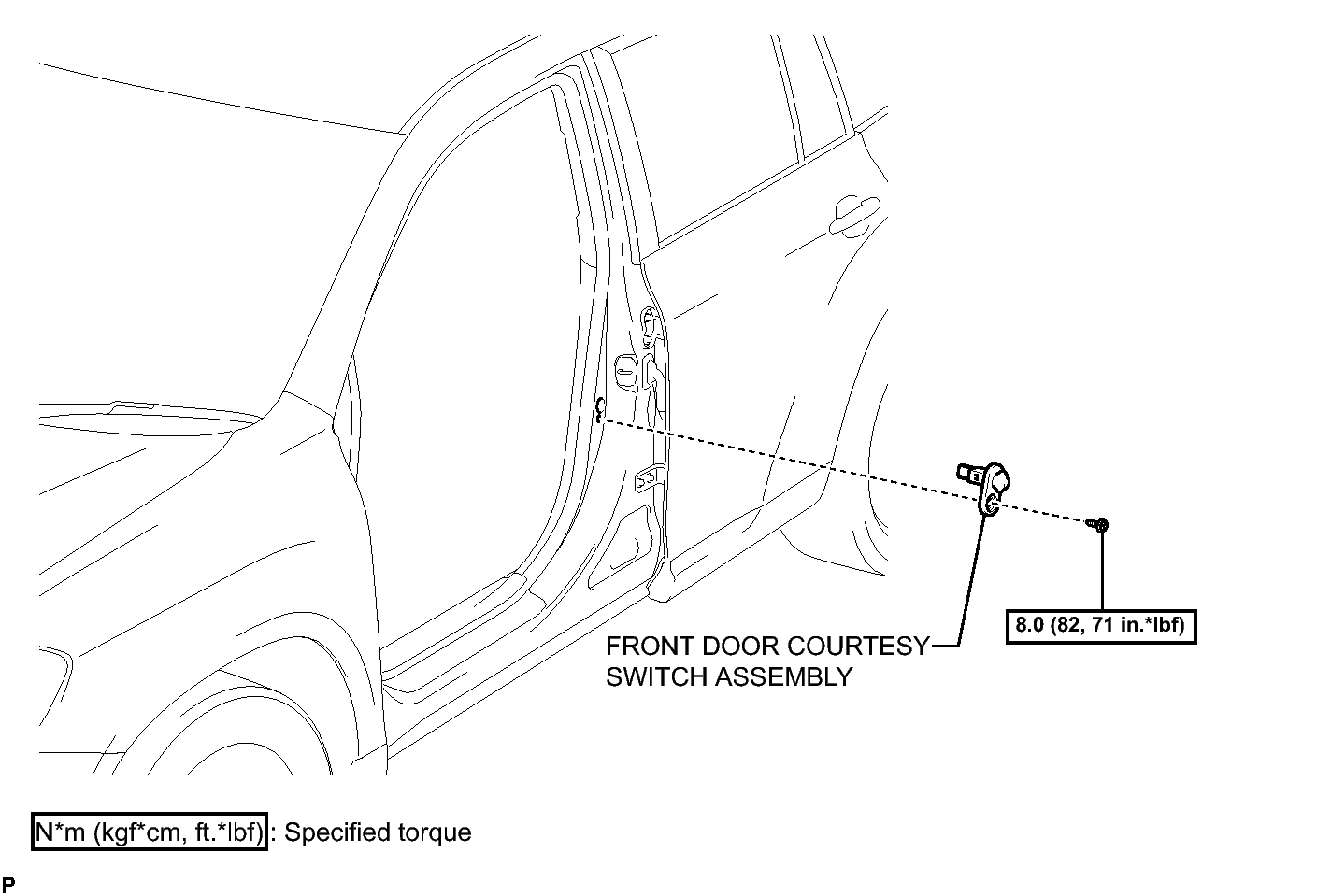

Fig 1: Identifying Front Door Courtesy Switch Replacement Components With Torque Specifications

GTY207928

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
