Back Door Courtesy Switch: Components: Illustration

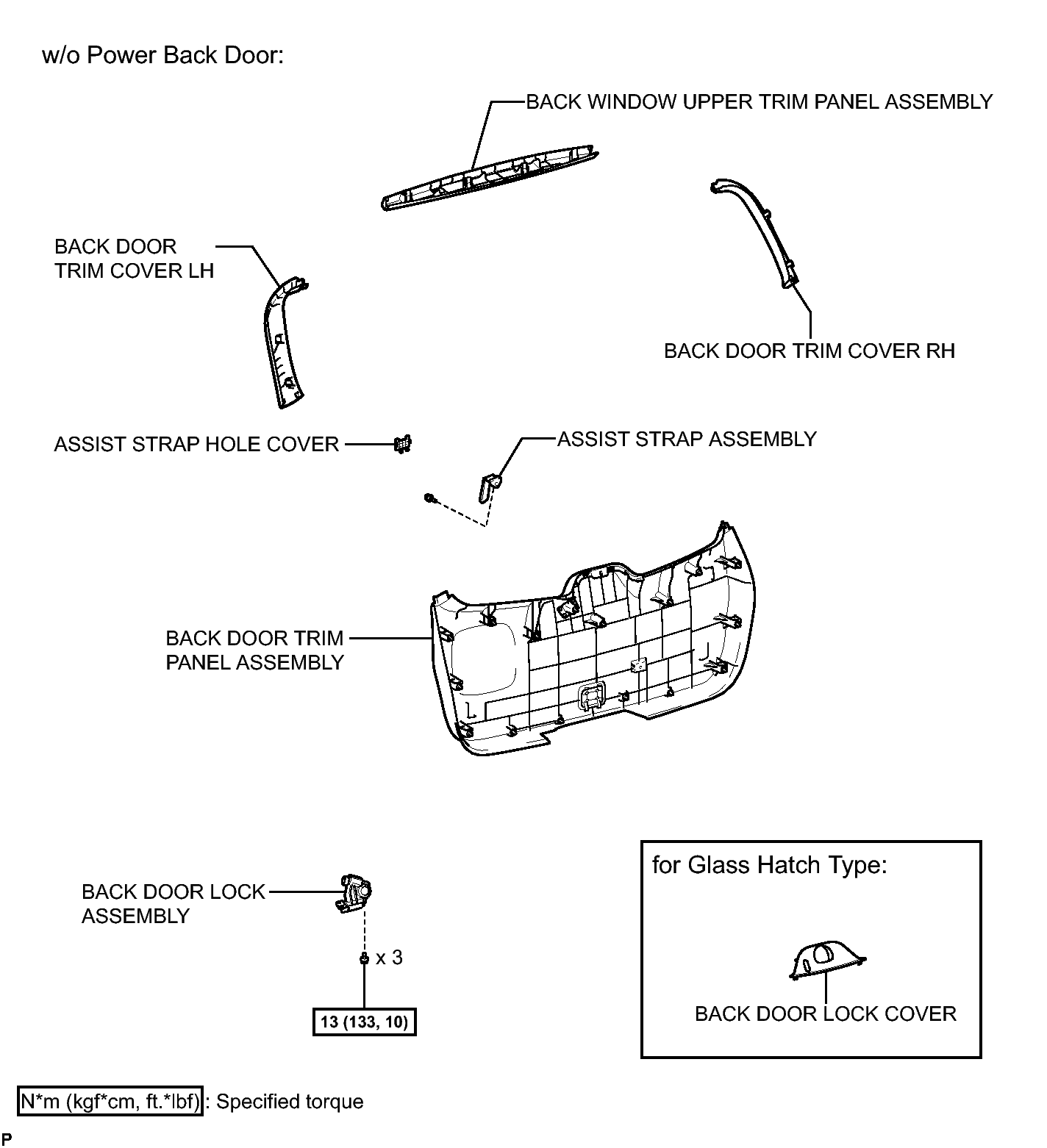

Fig 1: Identifying Back Door Courtesy Switch Replacement Components With Torque Specification (1 Of 2)
GTY208178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

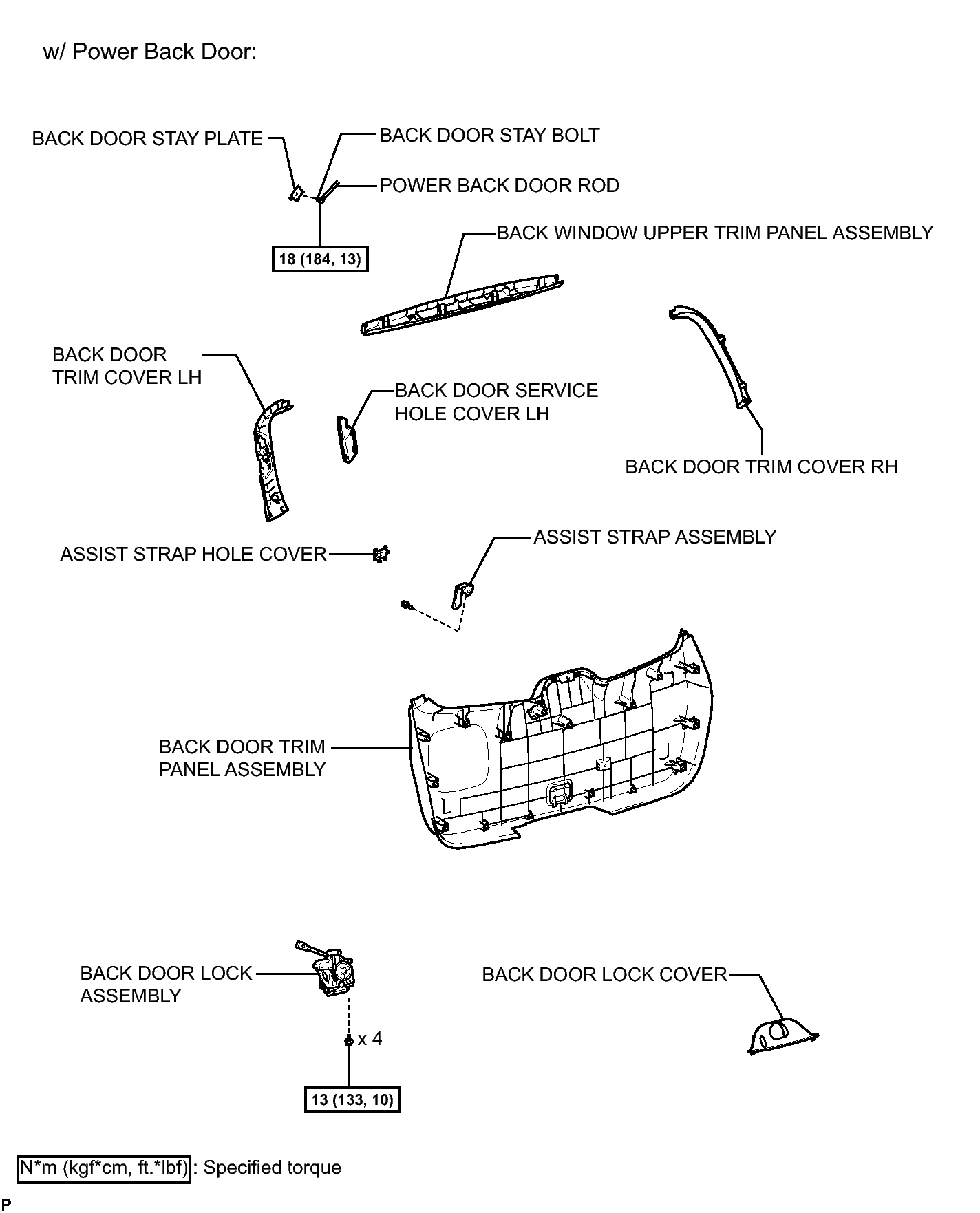

Fig 1: Identifying Back Door Courtesy Switch Replacement Components With Torque Specifications (2 of 2)
GTY304502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
