Rear Suspension Member: Components: Illustration

Fig 1: Identifying Rear Suspension Member Replacement Components (1 of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Rear Suspension Member Replacement Components (2 of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

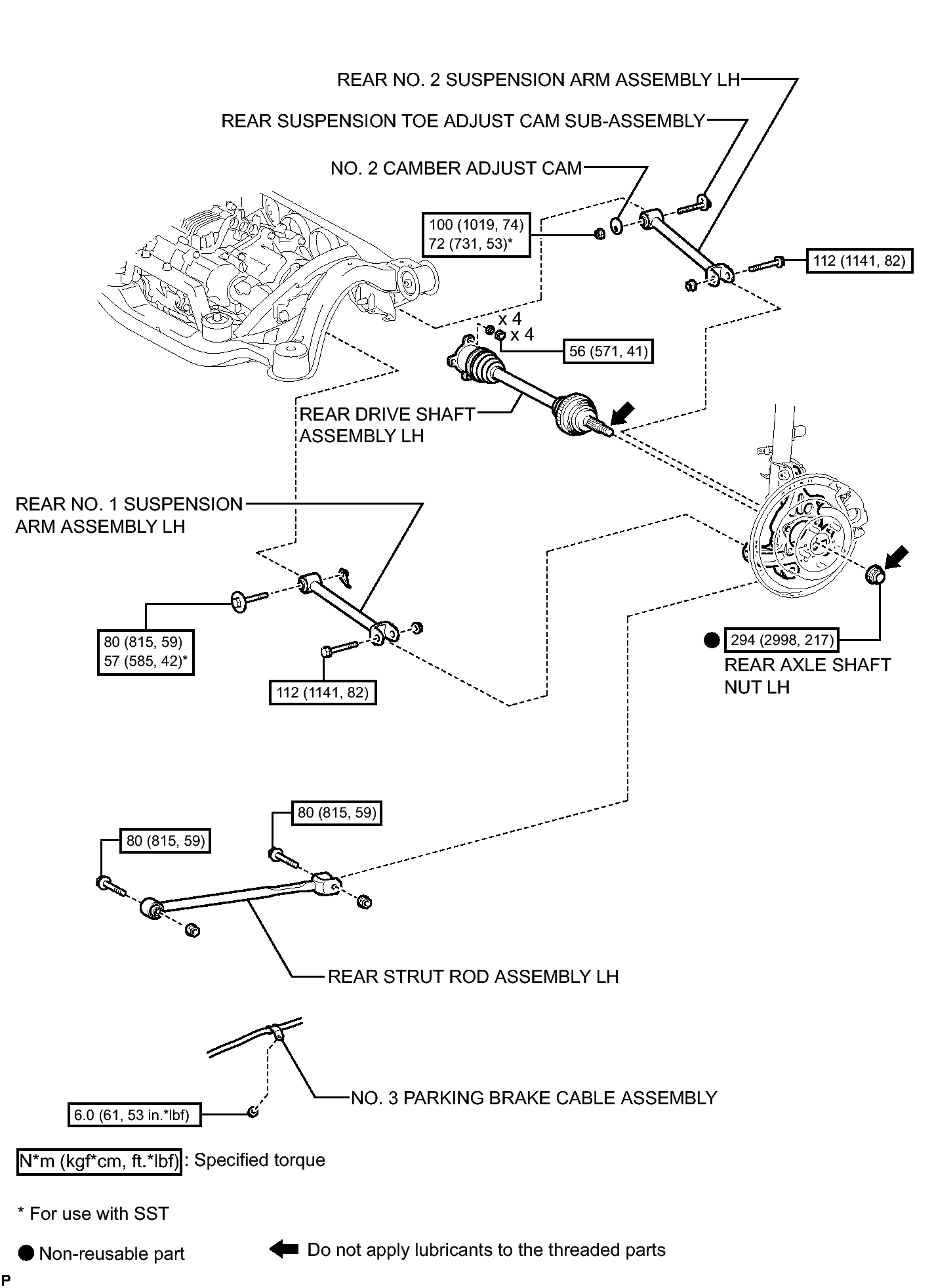

Fig 1: Identifying Rear Suspension Member Replacement Components With Torque Specifications (3 of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

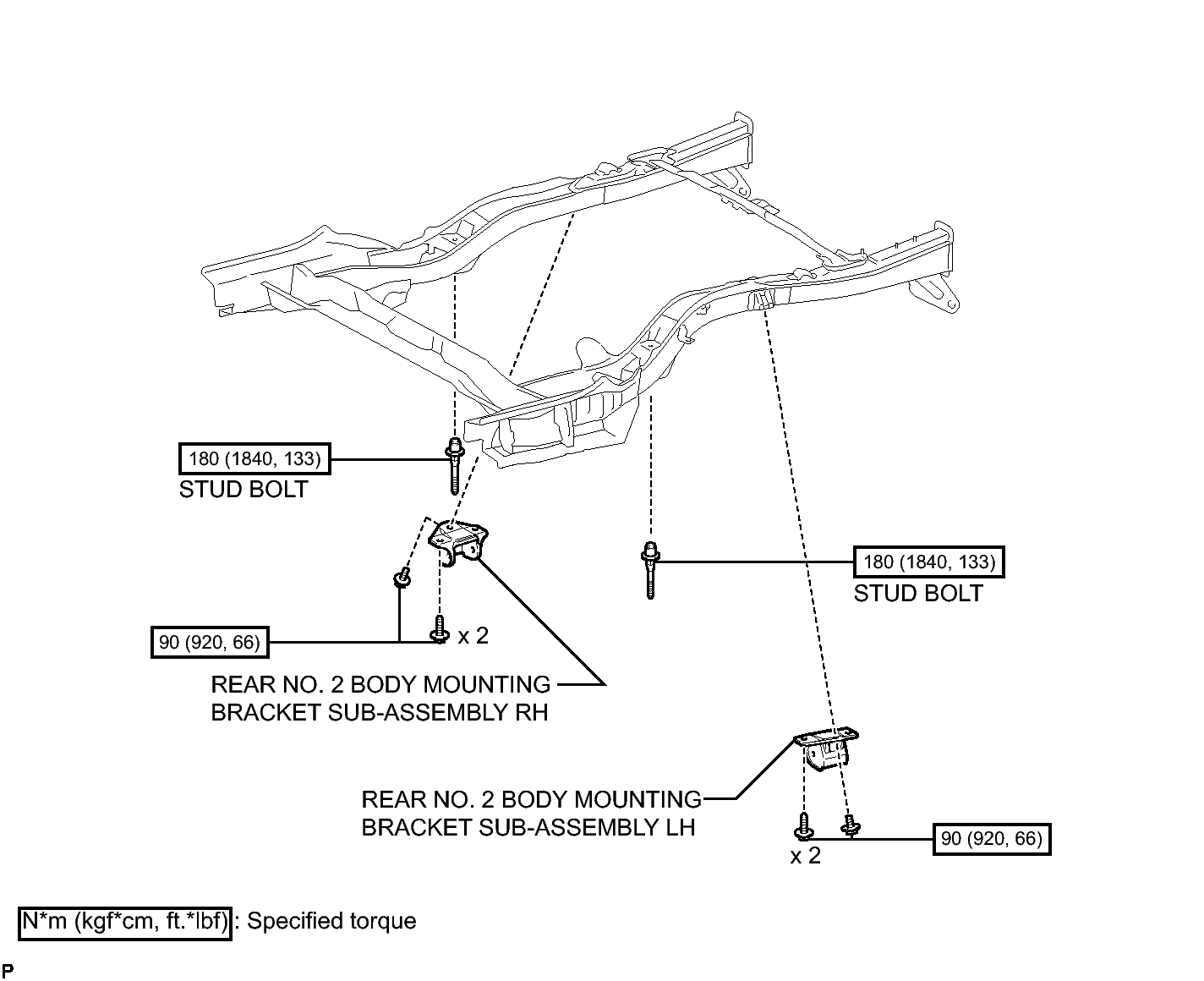

Fig 1: Identifying Rear Suspension Member Replacement Components With Torque Specifications (4 of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

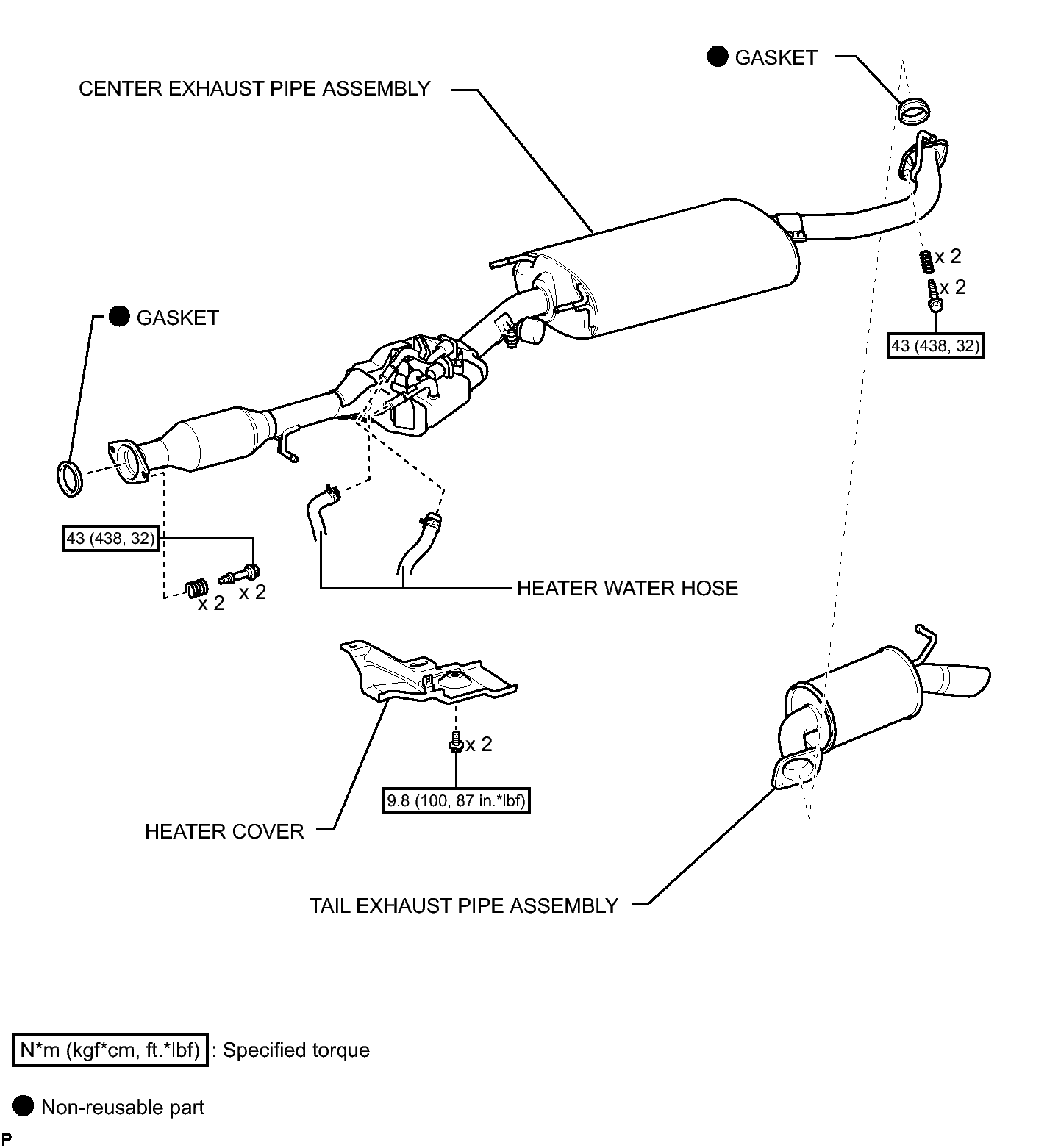

Fig 1: Identifying Rear Suspension Member Replacement Components With Torque Specifications (5 of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

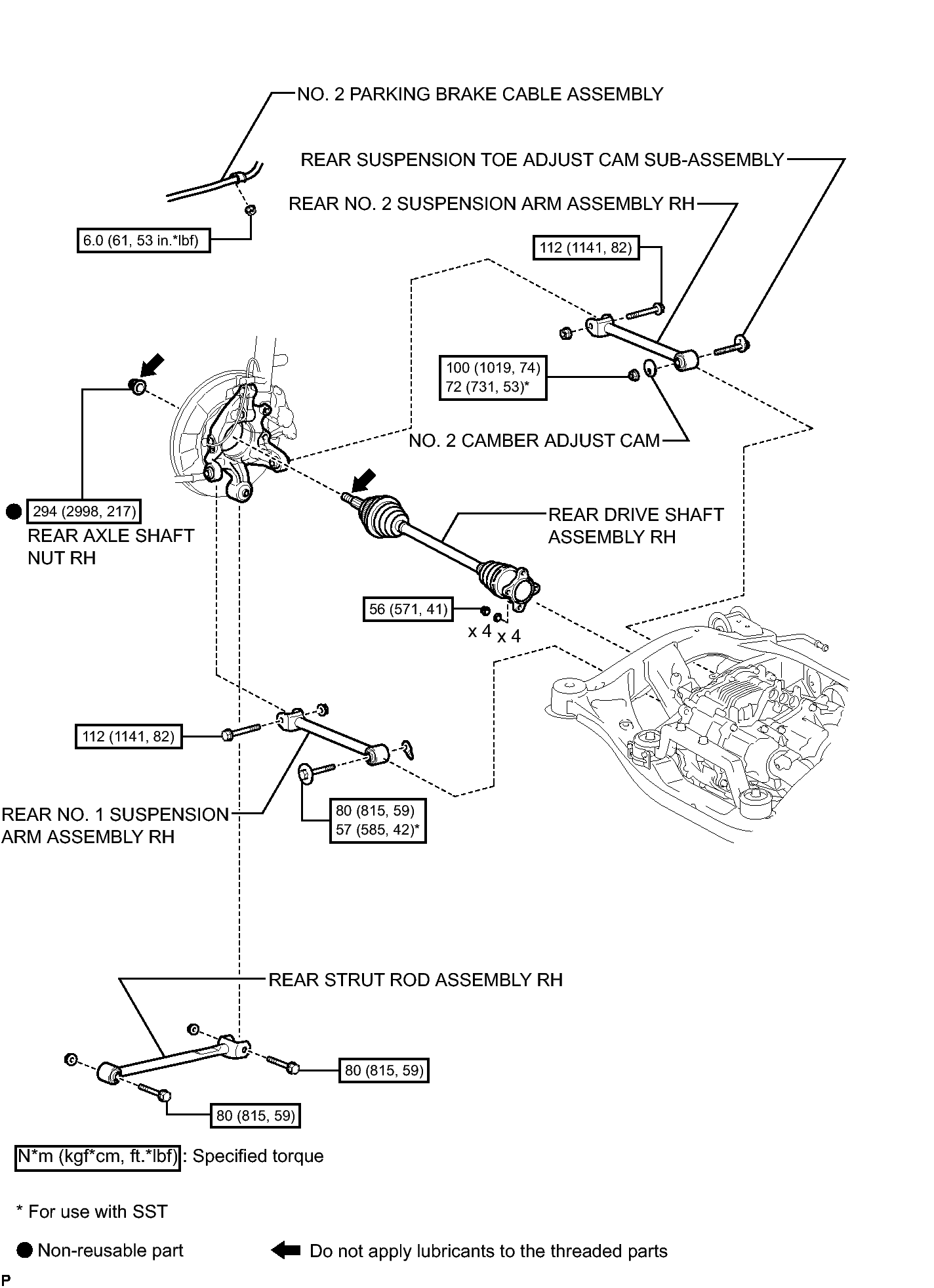

Fig 1: Identifying Rear Suspension Member Replacement Components With Torque Specifications (6 of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

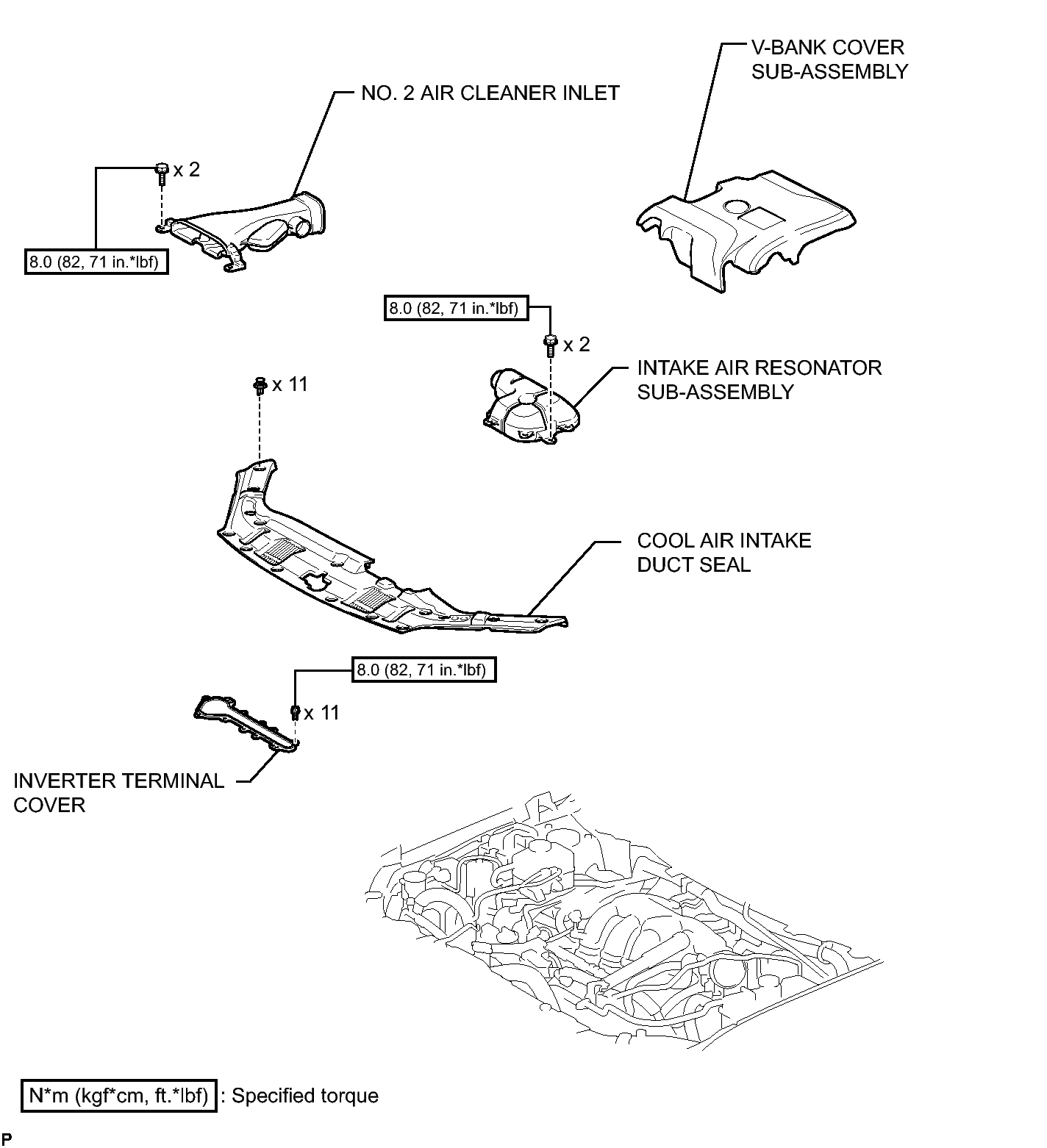

Fig 1: Identifying Rear Suspension Member Replacement Components With Torque Specifications (7 of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Rear Suspension Member Replacement Components With Torque Specifications (8 of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

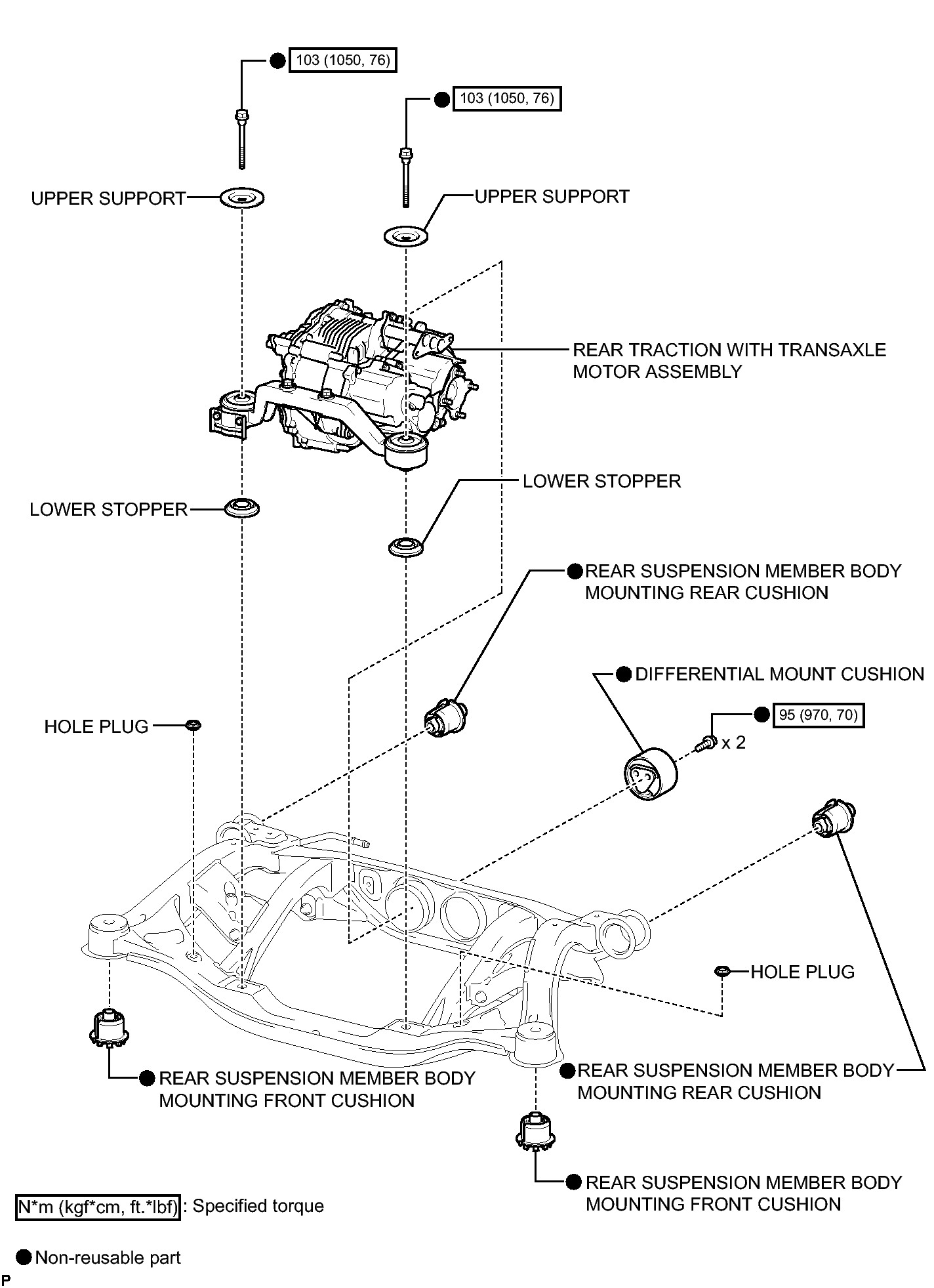

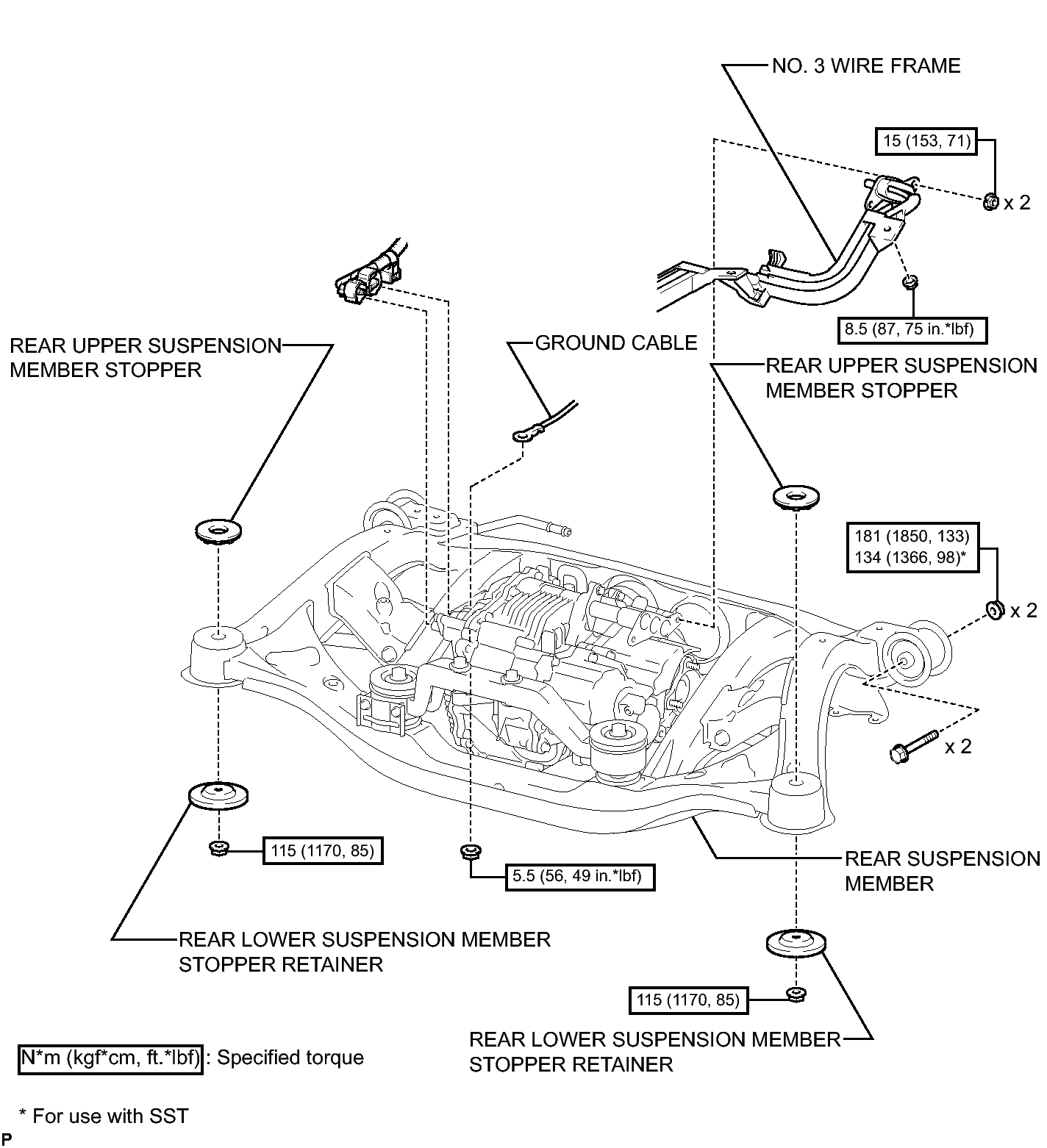

Fig 1: Identifying Rear Suspension Member Replacement Components With Torque Specifications (9 of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
