Rear Strut Rod: Components: Illustration

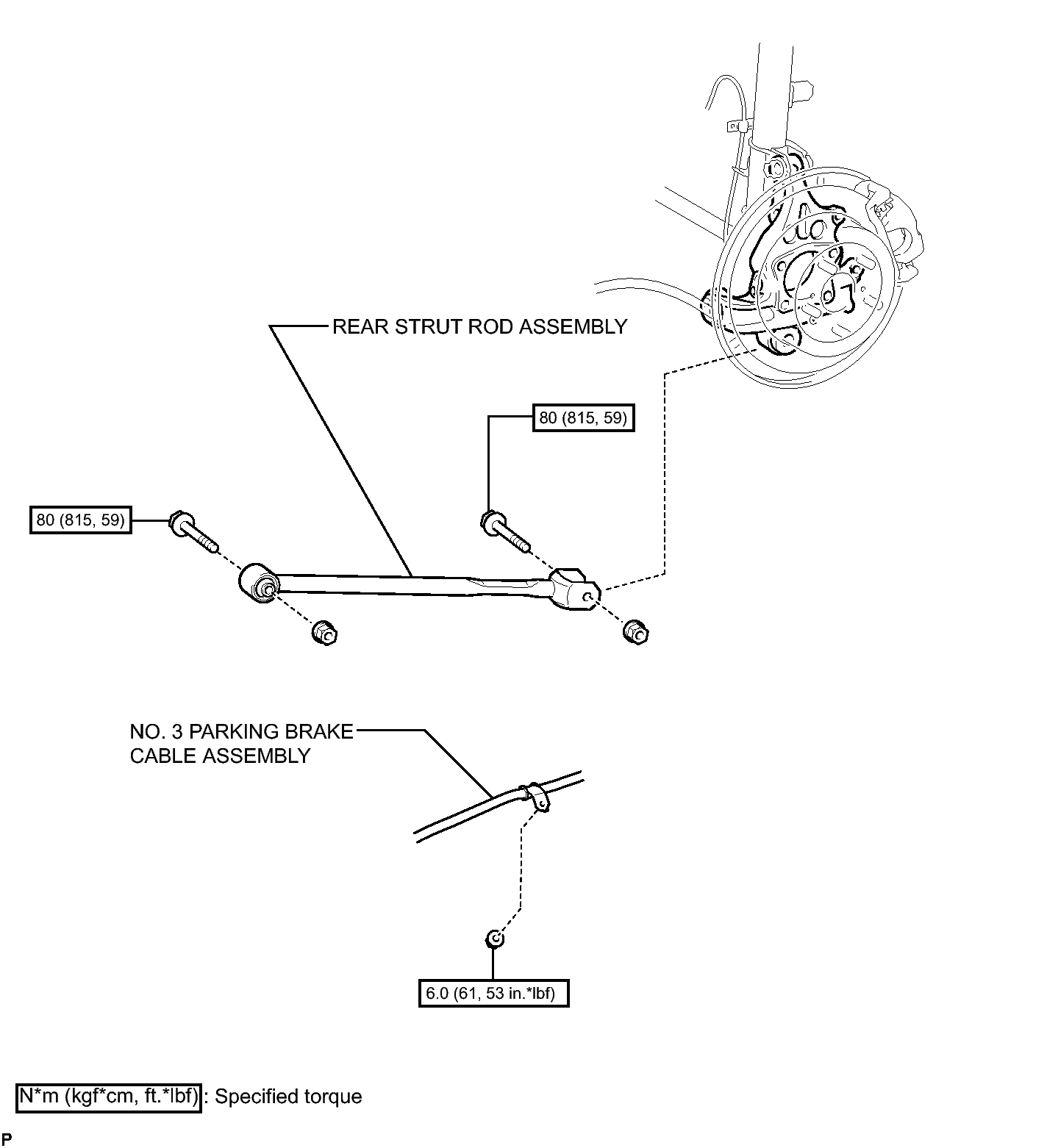

Fig 1: Identifying Rear Strut Rod Replacement Components With Torque Specifications

GTY298967

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
