Rear Stabilizer Bar: Components: Illustration

Fig 1: Identifying Rear Stabilizer Bar Replacement Components (1 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

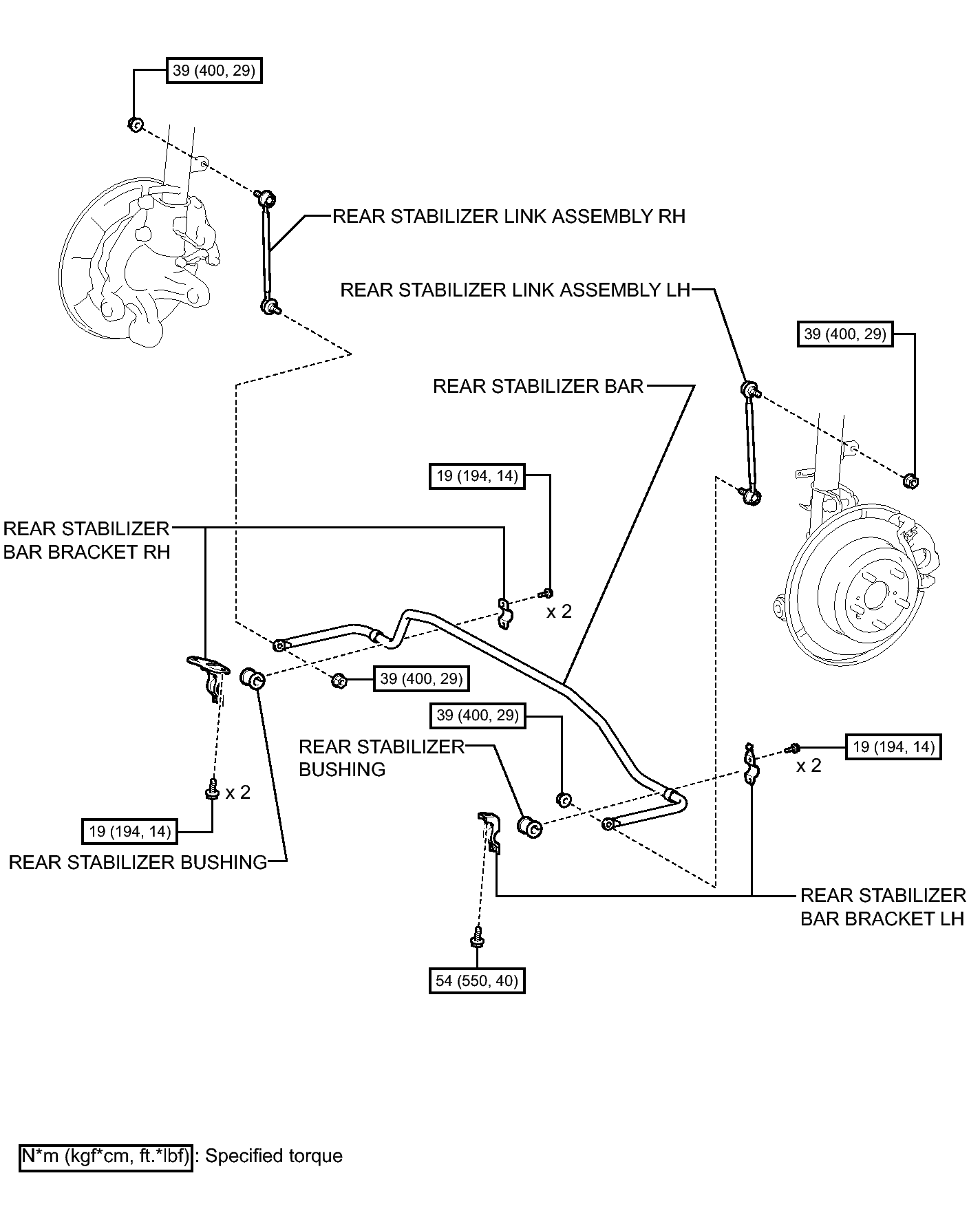

Fig 1: Identifying Rear Stabilizer Bar Replacement Components With Torque Specifications (2 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Rear Stabilizer Bar Replacement Components With Torque Specifications (3 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
